Portable 1530 CNC Plasma Oxygen Cutting Machine for Metal Plate
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Installation
- Warranty：1 Year
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNC-1530
- Cutting Mode：Plasma Cutting
- Function：Steel Sheet Plate CNC Plasma Cutting
- Cutting Source：Plasma Flame
- Cutting Gas：Oxygen Gas Acetylene
- Control Mode：CNC
- Current：AC Servo
- Max Plasma Cutting Thickness：According to Plasma Source
- Max Flame Cutting Thickness：150-200 mm
- Option：1 Plasma and 1 Flame or Customized
- Plasma Source Brand：Chinese Brand or Customized
- Cutting Speed：0-2000 mm,Min
- Vertical Range of Cutting Torch：150 mm
- Input Power：380 V~440 V
- Software：Professional Auto Nesting Software
- Plasma Power：105A,120A,160A, 200A,300A, 400A
- Structure Type：Portable Handheld CNC Plasma Cutting Machine
- Transport Package：Standard Packing
- Trademark：Lemar
- Origin：Jiangsu, China
- HS Code：8456401000
Description

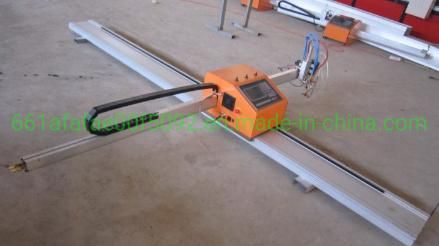

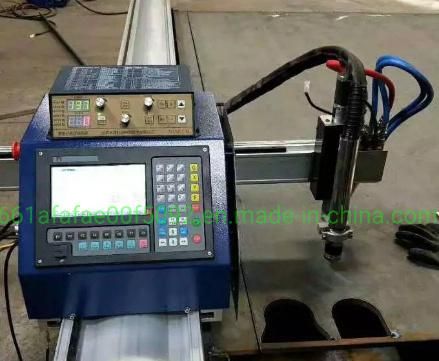

The portable plasma cutting machine produced by Lemar Machinery can be handheld and easy to use.
Consists of CNC Plasma cutting source and Flame Oxygen cutting source.
Plasma cutting max thickness is according to Plasma cutting source you choose.
There are CUT 105A/120A/160A/ 200A/300A/ 400A different series as your requirements.
Features:
1.Horizontal span 1.5 meters
2.Using aluminum alloy guide rail
3.Unilateral drive
4.The flame and plasma cutting torch automatic height adjustment system can be configured according to user requirements
5.Optional automatic height adjustment system
6.Accept external processing program import
7.Timely graphic tracking when cutting
8.Plasma cutting source can be customized
Specification:
Working Environment:
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of: Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!
Consists of CNC Plasma cutting source and Flame Oxygen cutting source.
Plasma cutting max thickness is according to Plasma cutting source you choose.
There are CUT 105A/120A/160A/ 200A/300A/ 400A different series as your requirements.
Features:1.Horizontal span 1.5 meters
2.Using aluminum alloy guide rail
3.Unilateral drive
4.The flame and plasma cutting torch automatic height adjustment system can be configured according to user requirements
5.Optional automatic height adjustment system
6.Accept external processing program import
7.Timely graphic tracking when cutting
8.Plasma cutting source can be customized
Specification:
| No. | Item | Qty | Unit | Remark |
| 1 | CNC Plasma portable cutter models CNC-1530 | 1 | set | Lemar |
| 2 | Machine horizontal distance | 2000 | mm | Effective cutting width 1500 mm |
| 3 | Rail length | 3500 | mm | Effective cutting length 3000 mm |
| 4 | X axis | 1 | set | Pipe rotation axis 360° free rotation |
| 5 | Y axis | 1 | set | The horizontal movement axis of the pipe can be customized |
| 6 | Z axis | 1 | set | pipe up and down axis can be customized |
| 7 | Plasma Interface | 1 | set | Chinese Brand |
| 8 | Solenoid valve | 1 | set | Wuxi |
| 9 | Secondary Development Software | 1 | set | Chinese Brand |
| 10 | Automatic ignition | 1 | set | Chinese Brand |
| 11 | Package | 1 | set | Self-locking boxes, environmental protection PE foam shock layer |
Working Environment:
| Power | 220V±10%,50Hz±1Hz |
| Oxygen | Purity: 99.5% |
| Preheat oxygen | Pressure 0.7~0.8Mpa |
| Cutting oxygen | Pressure 1Mpa |
| Acetylene or gas | Pressure 0.04~0.06Mpa |
| Ambient Temperature | -10ºC~45ºC |
| Relative humidity | 90% non-condensing |
| Installation Environment | No large impact shock within 5m |
