• Warranty：12 Months
• Customized：Customized
• Condition：New
• Straightening Roll Speed：2~14m,Min
• Main Motor Power：45X2
• Lifting Motor Power：3
• Installed Gross Capacity：100
• Straightening Roll Quantity：2
• Surface Roughness：≤3.2~6.4mm
• Circular Degree：≤50% Diameter Tolerance

ModelJY80MaterialStraightening range(mm)Φ20~Φ80(black materialΦ15~Φ85)X≥2000Tensile strength σb(Mpa)≤1000        black material≤600Surface hardness≤HB380±10(≤HRC42±1)Straightness(mm/m)≤3Diameter tolerance≤IT10(standard tolerance grade)Circular degree≤50% diameter toleranceSurface roughness(Ra)≤3.2~6.4mmFinished peoductStraightness(mm/m)0.40    black material 1.5Circular degreeimproved compare to billetDiameter tolerance≤IT8(standard tolerance grade)Surface roughness(Ra)≤0.8μmStraightening roll quantity2Straightening roll diameter(mm)Φ335Straightening roll speed(stepless)(m/min)2~14Main motor power(kW)45X2Lifting motor power(kW)3Dimension(m)(reference)Host 8.7X3.3X3.2  with auxiliary engine 15.8X5.5X3.0Weight(t)(reference)Host 20.0 with auxiliary engine 26.0Installed gross capacity(kW)100Compressed air source(equipped by user)0.5~0.8MPa,3m3/min,with secondary oil-water separator

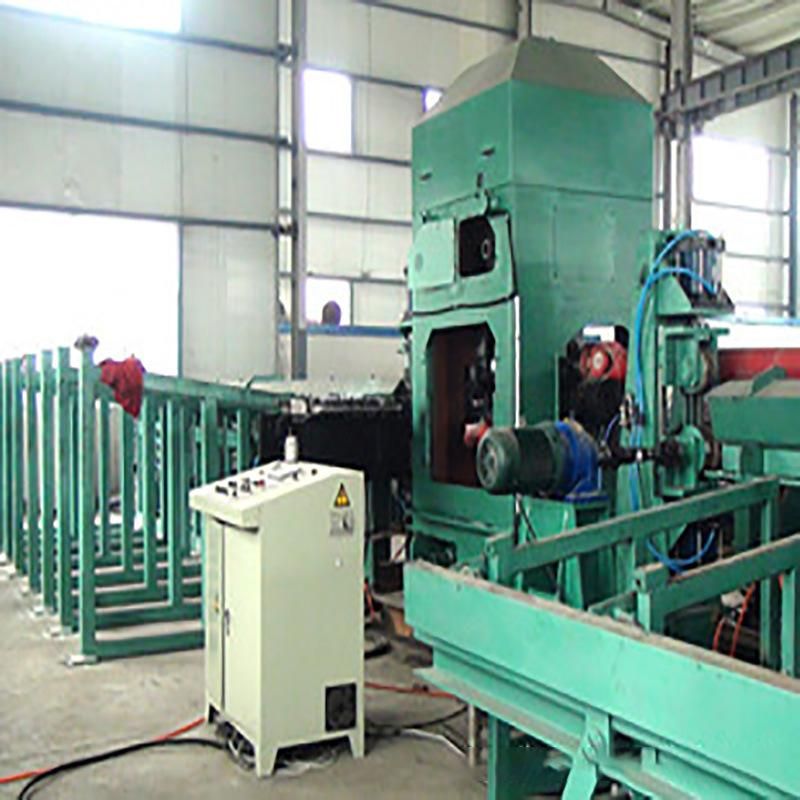

JY80 model high precise straightening press unit, contrast the advantages of similar products abroad, combining with the production characteristics in domestic, after simplify the optimization, new generation products developed by its own.
This machine is mainly used for precise straightening and press polish of metal rod after scalping and polishing, as well as for black bar straightening and precision round bar straightening. Due to its rolling light and straightening one time, so it is high in efficiency.
 The feature of the machine: strong practicability, stability processing, high speed, good surface quality, high machining accuracy. Material max speed can be up to 24m/min.
   Technical specifications of the unit and equipment composition
 1. Billets
    1.1 Material:titanium alloy,stainless steel,bearing steel,spring steel,alloy tool steel,tool carbon steel,high speed tool steel,quality carbon steel,structural alloy steel ,non-quenched and tempered steel,free cutting steel,valve steel,gear steel,die steel and all kinds of non-ferrous metals and tubes.
1.2 Bundle weight:≤5000Kg
    1.3 Specifications:
    Diameter range:Φ16~Φ80
    Length range:not less than 2M(can be lengthen according to needs)
    2. Finished product
    2.1 Diameter range:Φ16~Φ80
    2.2 Diameter tolerance:≤h8
    2.3 Surface roughness Ra;≤0.8μm
    2.4 Straightness:≤0.2mm
