Yx40-184-900 Steel Tile Roll Forming Machine (single mould)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX40-184-900
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：No Packing
  • Specification：CE, SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Basic Info.

Model NO. YX40-184-900 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Transport Package No Packing Specification CE, SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

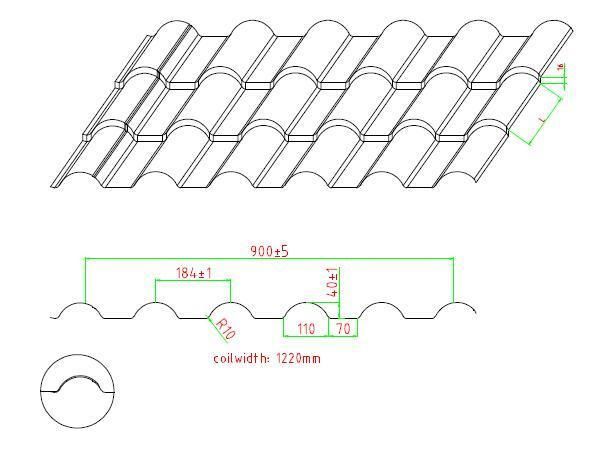

Profile drawing:
Yx40-184-900 Steel Tile Roll Forming Machine (single mould)

Steel tile roll forming machine
1. Coil width(mm): 1250x(0.4~0.6)L
2. Working speeding: 2-3m/min (we also can design it in 6-8m/min)
3. Roll station: 15 station
4. Material of roller: 45# forge steel, extract processed and plated with hard chromium.
5. Material of main shaft: 45# steel, extract processed and thermal refined
6. Power of main electromotor: 5.5kw
7. Power of hydraulic pressure station electromotor: 5.5kw
8. Pressure of hydraulic pressure station: 10~12Mpa
9. Electricity control system: All use PLC control; Transducer use Panasonic; Coding organ use Omron.
10. Size of the main machine: 9000x1700x1400(mm)
