• Model NO.：HZ-CXJ-88, FUGE8-50, etc
• Advantage：High Quality and Cheap Price
• Condition：New
• Pipe Diameter：100-800mm
• Tube Length：300mm-Unlimited
• Plate Thickness：0.2-0.4mm
• Strip Width：45mm

Basic Info.

Model NO. HZ-CXJ-88, FUGE8-50, etc Advantage High Quality and Cheap Price Condition New Pipe Diameter 100-800mm Tube Length 300mm-Unlimited Plate Thickness 0.2-0.4mm Strip Width 45mm

Product Description

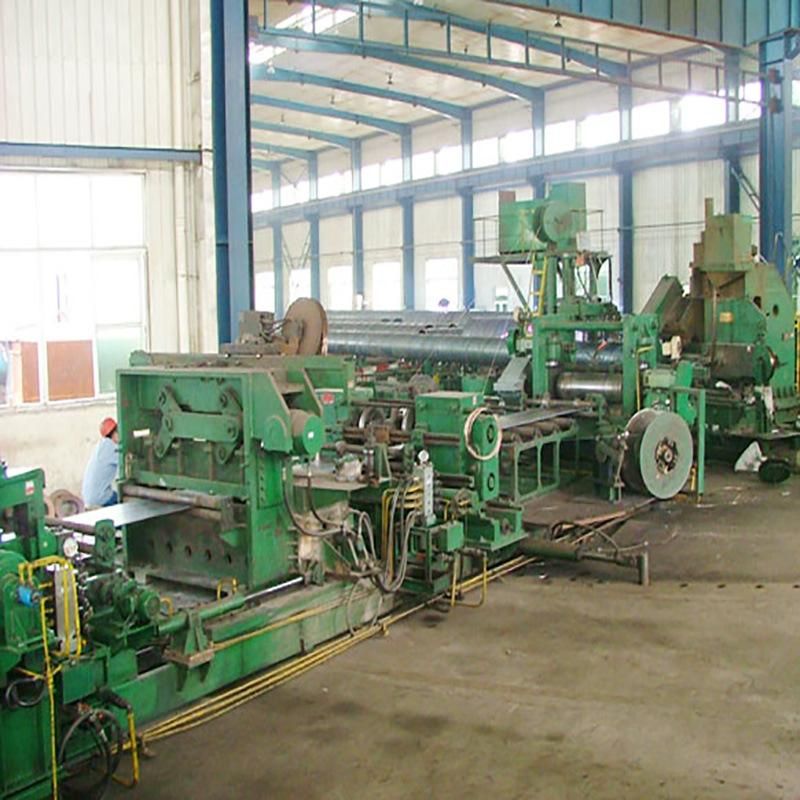

(1)This kind of tube former is similar to Spiro--one fixed mould for one diameter.
Advantages
* Quick changing mould.
* Large diameter range
* PLC control, convenient operation
* High speed synchro flying cutting system.
Main technical data
Diameter 100-800mm
Tube Length 200mm-Unlimited
Thickness of Strip 0.35-1.0mm
Width of Strip 120mm
Strip Speed 20m/min
Suitable Material Aluminum, Stainless steel, Galvanized steel, Color steel
Dimension (L x W x H): 1500 x 1500 x 880mm
Weight 1500kg
main motor 3 kW
Control System switch

main parts
1.uncoiler
2.Gear box
3.rollerGGr15,HRC58-62
4. out table:? 2000mm
5special mould ?80mm,100mm, 150mm 200mm? with the machine. If customer need more moulds ,should pay cost of the mould
We can supply mould up to 1000mm
6.Special tools

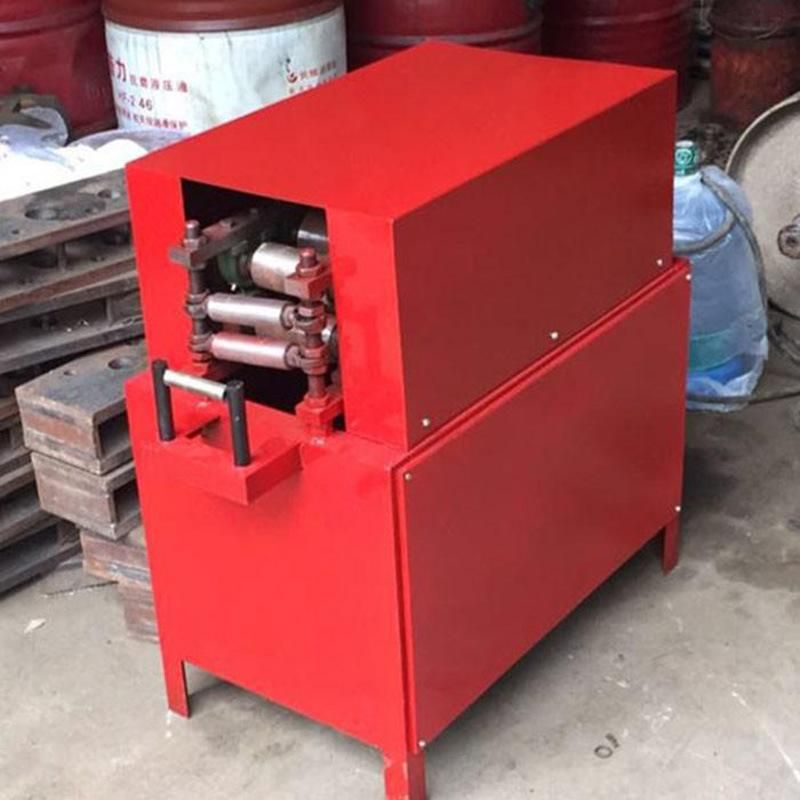

(2)
Plate thickness:0.2mm-0.4mm
Strip width:45mm
Tube diameter to produce:Ø30mm-Ø140mm
Working method:Full automatic,cut off without stopping
Motor power:1.5KW+0.75KW+0.37KW
Application materials:galvanized strip steel
Volume:
        1300mm*1200mm*1400mm(host machine)
       800mm*800mm*1000mm(material rack)
Weight:1200kg
