• Model NO.：ZYYX
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Style：Automatic Cut to Length

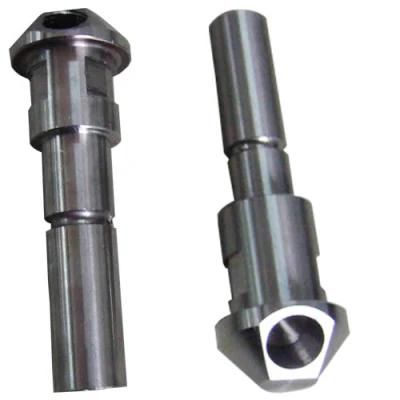

• Shafts for Rollers：82mm Diameter Solid Steel
• Quality System：ISO9001
• Certificate：CE
• Guarantee Time：First Year Free, Lifetime Services
• Controlling System：Mitsubishi PLC & Converter
• Machine Weight：16 Tons
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItermSpecificationMaterialTypeColor steel sheet or galvanized steel sheetThickness(mm)0. 8 -1.2Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 15-20m/min Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel, quenched treatmentLength measurementEncoderControl modeMitsubishi  PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)18.5KW   (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)30KWUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 20*1.5*1.6m  (Depend on final design)Machine weightAbout 16000kgs


Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.


About us

1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.
