Colo-1688 Electric Powder Coating Curing Oven for Wheel
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Powder Coating Booth
- Coating：Powder Coating
- Substrate：Aluminum
- Certification：CE, ISO
Base Info
- Model NO.：FF-1688
- Condition：New
- Name：Small Electric Powder Coating Curing Oven
- Dimension：1m*1m*1.8m
- Product：Small Electric Powder Coating Curing Oven
- Motor：0.75kw
- Electric：4kw
- Electric Tube：1kw*4PCS
- Delivery：15 Work Days
- Payment：100%T,T in Advance
- Item：Small Electric Powder Coating Curing Oven
- Transport Package：Export Packaging
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：8504231300
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. FF-1688 Condition New Name Small Electric Powder Coating Curing Oven Dimension 1m*1m*1.8m Product Small Electric Powder Coating Curing Oven Motor 0.75kw Electric 4kw Electric Tube 1kw*4PCS Delivery 15 Work Days Payment 100%T/T in Advance Item Small Electric Powder Coating Curing Oven Transport Package Export Packaging Specification CE ISO Trademark COLO Origin China HS Code 8504231300 Production Capacity 50sets/MonthProduct Description
Small Electric Powder Coating Curing Oven For WheelModel: COLO-1688
Hot Sell & Quick Delivery & Saving Budget & Save Space & Save power
Working size: L1 m x W0.85m x H1.6m
Application: The COLO-1688 powder coating oven is used in the process of powder curing, perfect for powder curing not big metal work-pieces, like auto parts.
Specifications of Electrical Powder Coating Oven
| Model | Colo-1688 |
| Worksize dimensions | 845width x 1600 height x 845 depth |
| Overall dimensions | 1400 width x 2200 height x 1100 depth |
| Power supply | Electric/ 6.5kw |
| Voltage/Frequency | 110V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.55kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Warranty | 12 months |
Details introduction
Fan motor on the top to make the heat circulate in the inner space.
Control system on the side, set heating time and heating temperature.

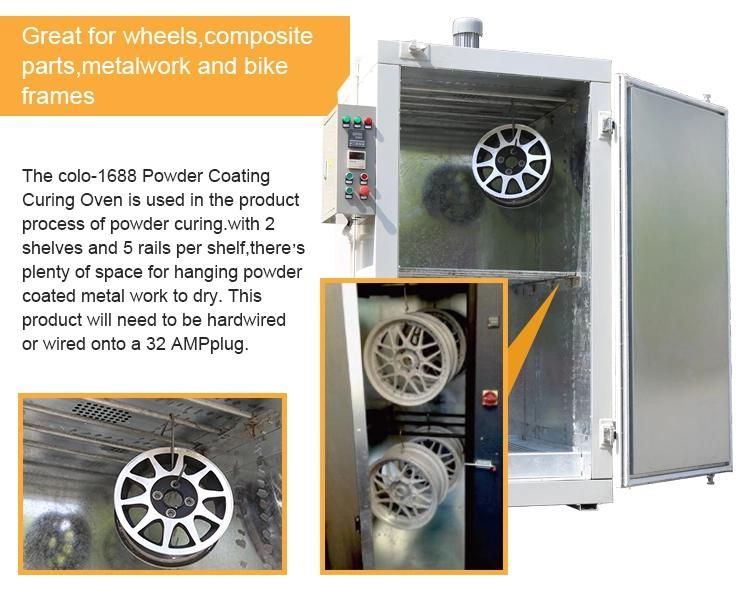

Many customers used this model powder coating oven for curing car wheels. with 2 shelfs and 5 rails per shalf to hang the powder coated work-pieces for curing.
Electrical heating tube on the bottom, 3 pcs, 1.5kw per pc.
