• Model NO.：CNC 400T CR6C 50A
• Work Oil Tank Inner Dimensions：950*490*270 Mm
• Max. Capacity of Dielectric Fluid：350 Litre
• Transport Package：Wooden Case
• Specification：CE , SGS , ISO9001
• Trademark：LEAD
• Origin：China
• HS Code：8456301090
• Production Capacity：60 Sets a Month

Basic Info.

Model NO. CNC 400T CR6C 50A Work Oil Tank Inner Dimensions 950*490*270 Mm Max. Capacity of Dielectric Fluid 350 Litre Transport Package Wooden Case Specification CE / SGS / ISO9001 Trademark LEAD Origin China HS Code 8456301090 Production Capacity 60 Sets a Month

Product Description

Brief Introduction:

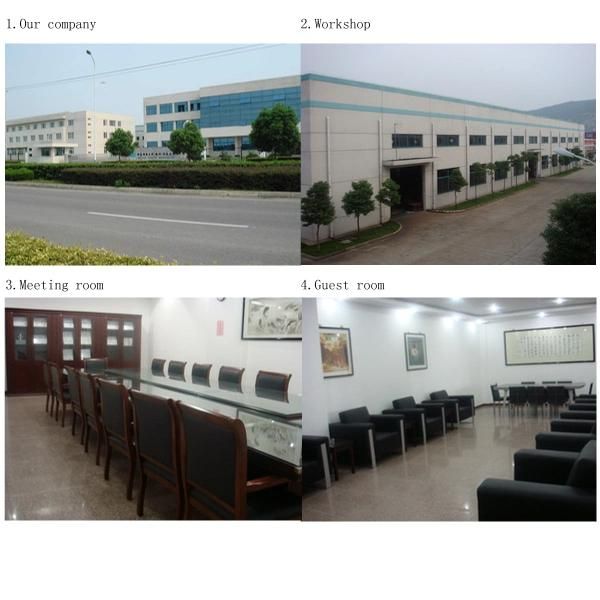

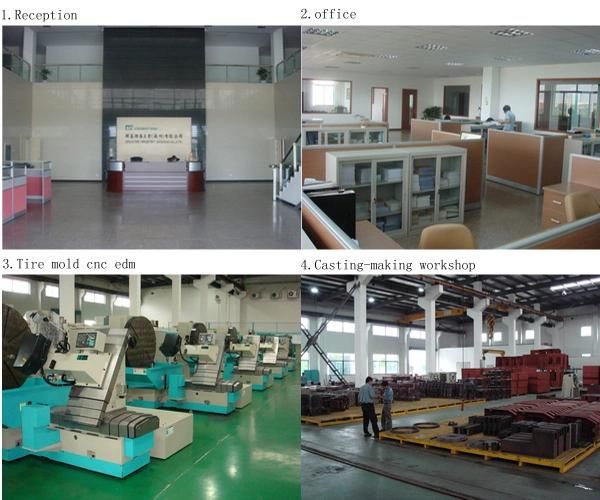

Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.
2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.

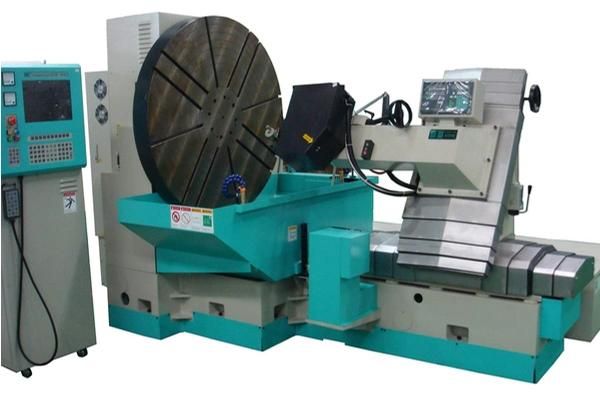

Main Unit Features:
1. Closed-loop feedback control on C-axis assures extra high positioning accuracy of up to 0.001° . (Patented)
2. 30° Slant column construction. (Patented)
3. Spindle tilts ± 90° Forward and backward. (Patented)
4. Designed for machining various tire molds, such as segmented parting mold, two-piece mold and stamping steel plate.
5. The electrical discharge machining system is specially designed for tire mold machining.
6. State-of-the-art CNC control with 15" TFT LCD monitor.
7. Comprehensive lubrication design ensures extra smooth movement.



Parameters;

Model		CNC400T
Table travel (X1-axis)	mm
Table travel (Y-axis)	mm	300
Table travel (Z-axis)	mm	7000
Quill travel (Z1-axis)	mm	390
Worktable dimension	mm	d900
C-axis angle	degree	360
W-axis(Z-axis F/B) revolving angle	degree
Y-axis resolution	mm	0.001
Z-axis resolution	mm	0.001
C-axis resolution	degree	0.001
Control type (C-axis)		Fully enclosed
W-axis resolution	degree	0.05
Max. Electrode weight	kg	50
Max. workpiece weight	kg	400
Max. workpiece diameter	mm	10000
Max. workpiece thickness	mm	200( with jigs)
Work tank inner dimensions (WxDxH)	mm	950*490*270
Oil tank dimensions (WxDxH)	mm	1910*600*340
Max.Capacity of dielectric fluid	liter	350
Distance of oil tank up and down	mm	195
Machine unit weight( including indexing table)	kg	3000
Control system		CR6C CNC Controller
