• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment

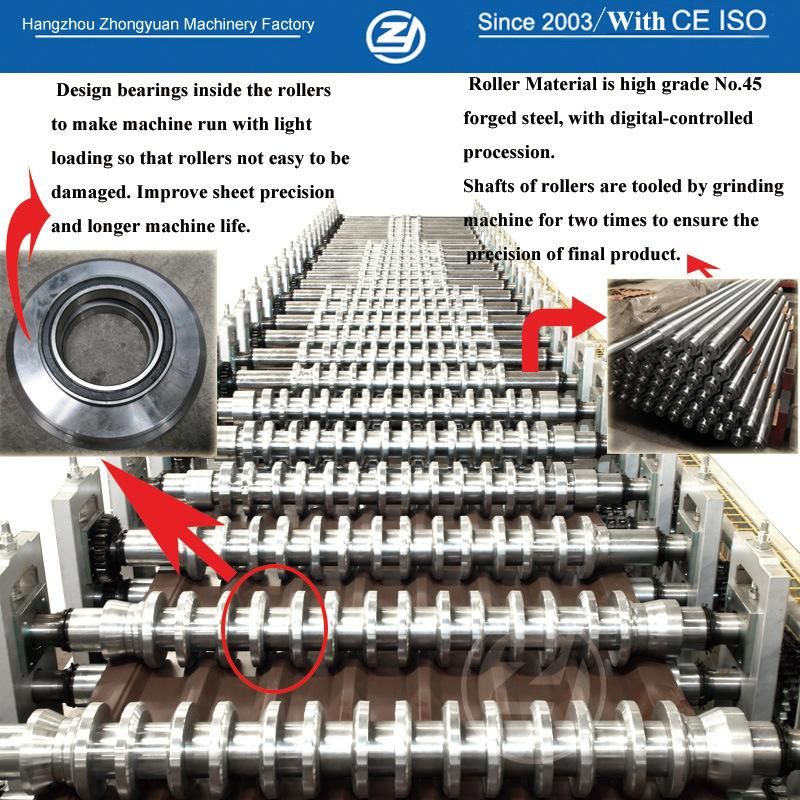

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Machine Size：About 10 X 1.6 X 1.5m
• Machines Weight：About 10t
• Delivery Time：About 60days
• Certificate：ISO,Ce,Soncap
• Operation Language：English or as Per Client`S Required
• Controlling System：Mitsubishi PLC & Converter
• Used：Steel Roofing Forming
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month


Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.6Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 15-20Output speed(m/min)About 12 Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.7 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Why choose this machine?

1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years

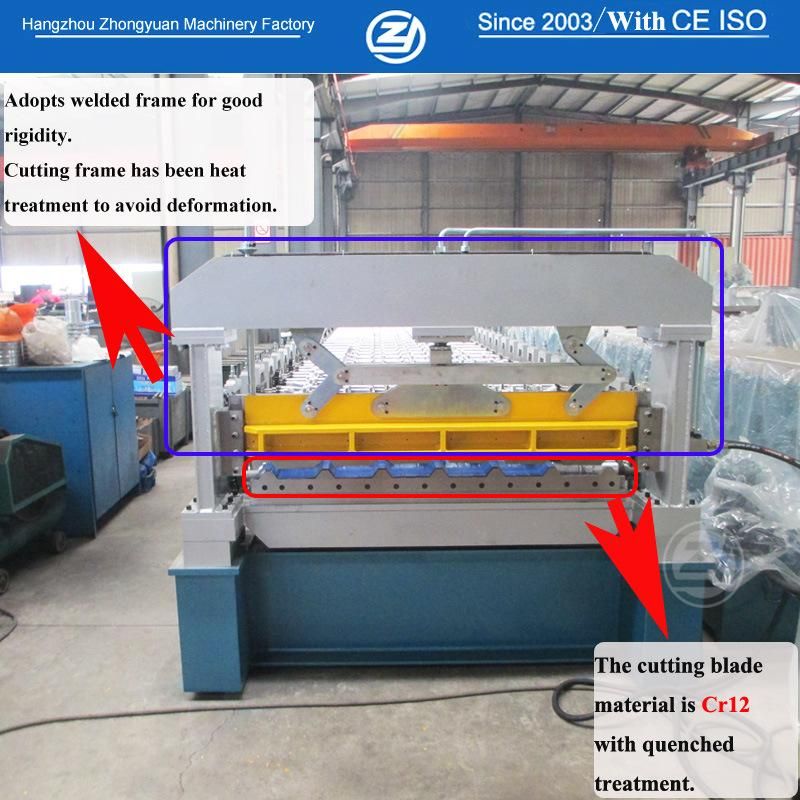

5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Improved structure, more stable cutting performance.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft





Certificate: CE; ISO; SONCAP

Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Over the past 10 years, our R&D members dedicated in make better machines.



We garantee:
Machine lifetime service
Technician overseas services.
