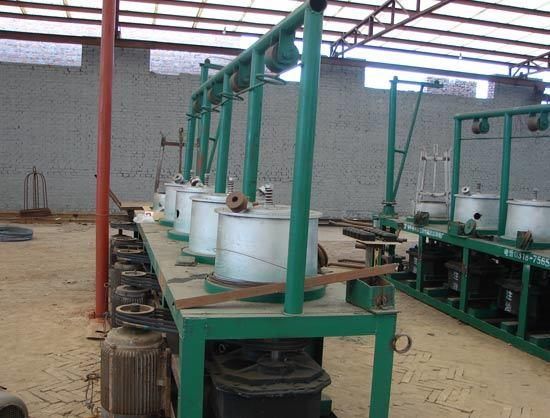

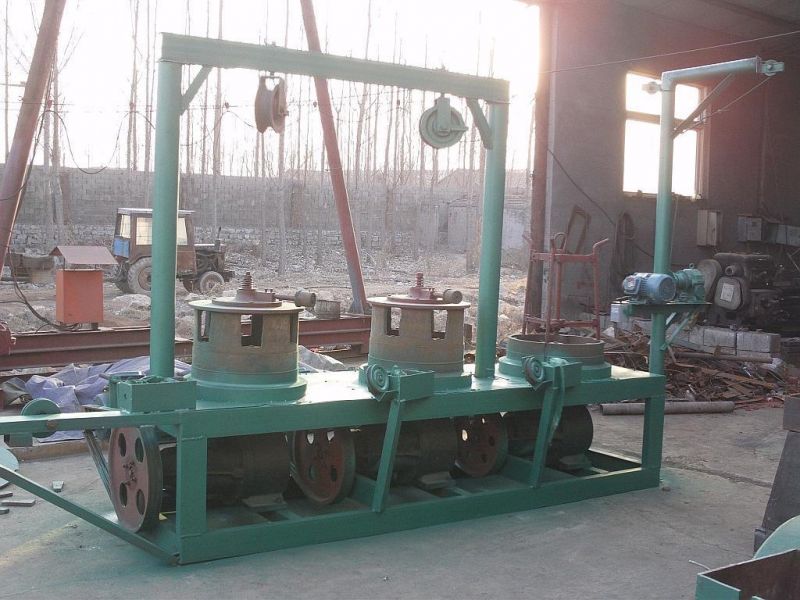

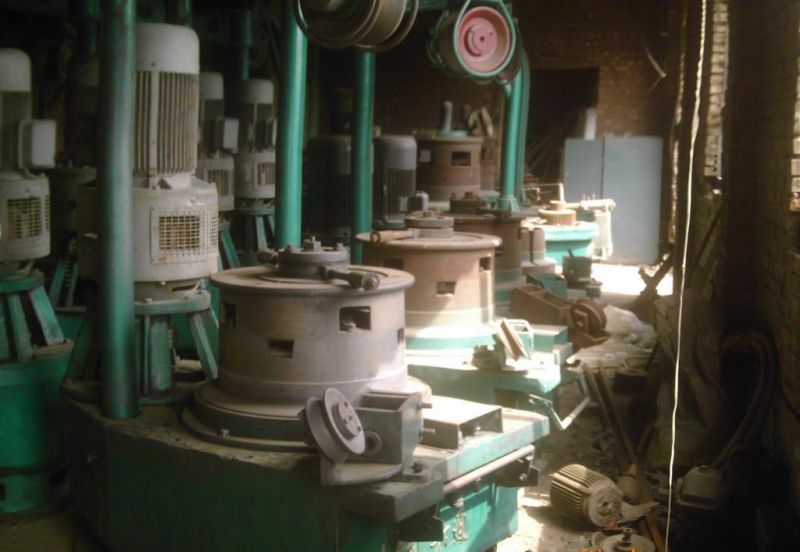

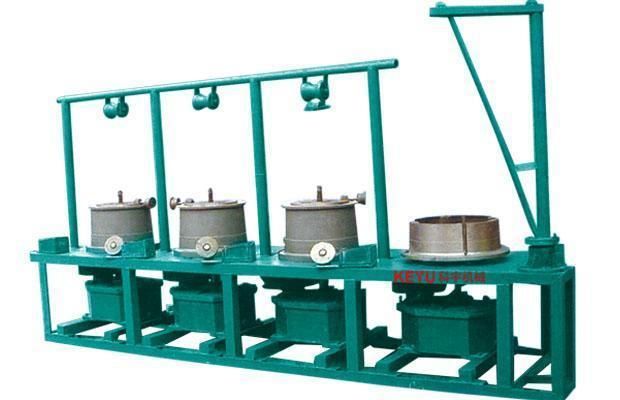

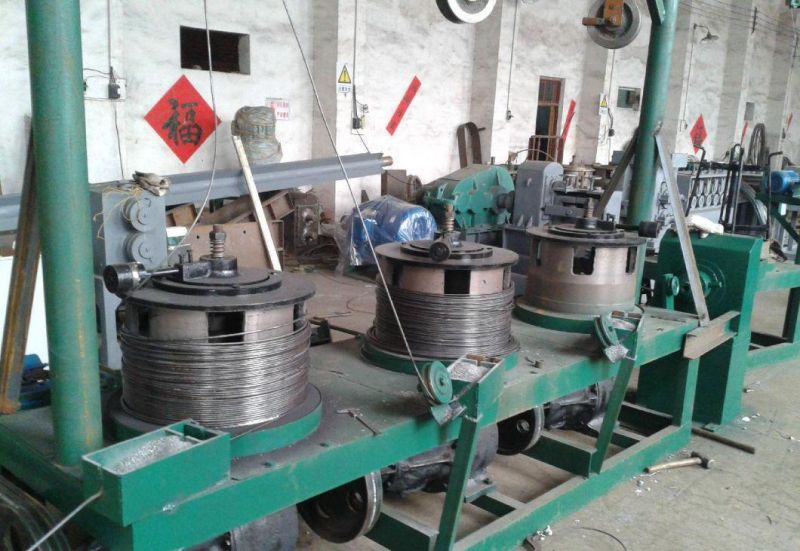

Automatic Pulley Type Low Carbon Steel Wire Drawing Machine
Anping Xingmao Metal Wire Mesh Co., Ltd.- Maximum Inlet Wire：6.5mm
- Minimum Outlet Wire：2.0mm
- Drawing Pot：1-7
- Motor Power：18.5kw,22kw
- Weight：1.2-2.3ton
- Capacity：245m,Min
Base Info
- Model NO.：XM-06
- Dimension：1500*1200*2300
- Pot Diameter：560mm
- Total Compress：78-88.5%
- Strength Tensile：>=110kg,M2
- Transport Package：Wooden Box or by Container
- Specification：1500*1200*2300mm
- Trademark：XINGMAO
- Origin：Anping, China
- HS Code：846310200
- Production Capacity：10 Set,Sets Per Month
Description
| 240m/min |
Control | Two control box, one is frequency control, another one is operation control box, frequency control will save electricity |
Baskets speed | 140r/min |
Capacity | Get 5ton products/8hours |
Weight | Total 10ton, 2ton per set |
Power | 18.5+18.5+18.5+15+15kw |
Total machine size | 5.5*2.1*2.1m |
Dia reducing process | 5.5-4.76-4.12-3.56---3.09---2.68mm |
Main machine structure | Casting materials |
Start way | Soft start |
Drive gear | Four gears gear materials: No,45steel |
Baskets materials | Cold, hard,alloy, need to maintain per three years |
Drawing powder cost | 1ton materials needs to cost 3kg powder |
Remarks1 | It could make the ribs by the machine directly, just make mold with ribs |
Remarks2 | The input size could be 8mm, 7mm |
