• Model NO.：DK
• Fuel：Vacuum Pump Oil
• Pressure：High Pressure
• Powder：Electric
• Size：Customized
• Warranty：One Year
• Application：Vacuum Coating Machine
• Structure Type：Two Stage Vacuum Pump
• Pump Type：Diffusion Pump
• Power：3,5,7.5kw
• Transport Package：Wooden Case
• Specification：15,30,70
• Trademark：DANKO
• Origin：China
• HS Code：8414100090
• Production Capacity：5000sets,Year

Basic Info.

Model NO. DK Fuel Vacuum Pump Oil Pressure High Pressure Powder Electric Size Customized Warranty One Year Application Vacuum Coating Machine Structure Type Two Stage Vacuum Pump Pump Type Diffusion Pump Power 3/5/7.5kw Transport Package Wooden Case Specification 15/30/70 Trademark DANKO Origin China HS Code 8414100090 Production Capacity 5000sets/Year

Product Description

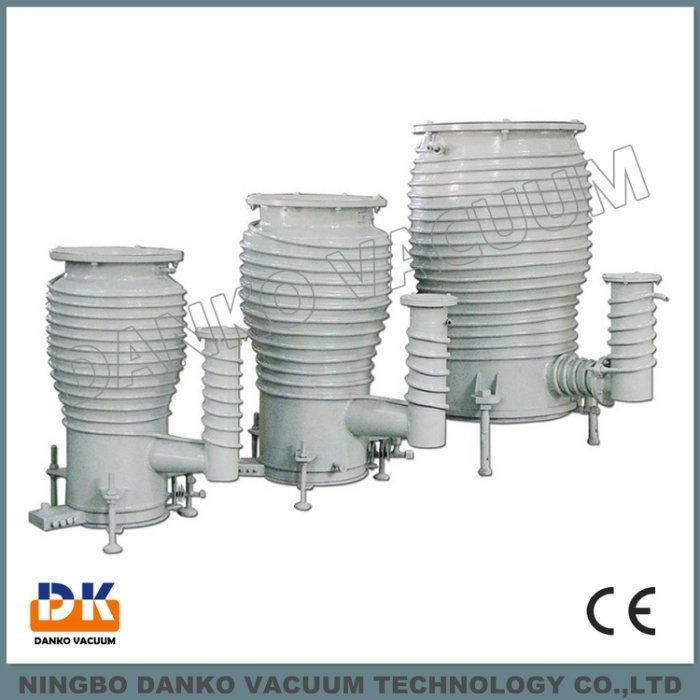

High Vacuum Diffusion Pump

Product Description
 DankoVAC oil diffusion pump is the main pump used to obtain high vacuum (2 ~ 10-10-5 pa). It can be combined with water-cooled plate, pipe, valves and mechanical vacuum pump together and becoming high vacuum system, the ultimate pressure can be up to (2 ~ 10-10-4 pa). If it takes liquid nitrogen cooling device with baking, the vacuum can be up to the ultra high vacuum10-6 (pa).
The diffusion pump main part including pump shell, pump core, evaporation boiler, heater, cooling water pipe and so on.

Characteristics of the pump
a. Strong pumping ability, Large pumping capacity from 480 to 130000 l/s are suitable. It has Observation window, oil filling port and discharge port, pump oil measurement device.
b.  Take stretching technology on manufacturing, reducing weld, increasing strength, reducing the discharge volume.
c. Heater is equipped either with heating wire or electric heating plate, you can choose when you order it.

Application
It is widely used in vacuum coating, vacuum furnace, electronics, chemical industry, aviation, aerospace, metallurgy, material, biological medicine, atomic energy, space exploration and other high-tech fields, and it has also been widely used in titanium sponge field with high praise.

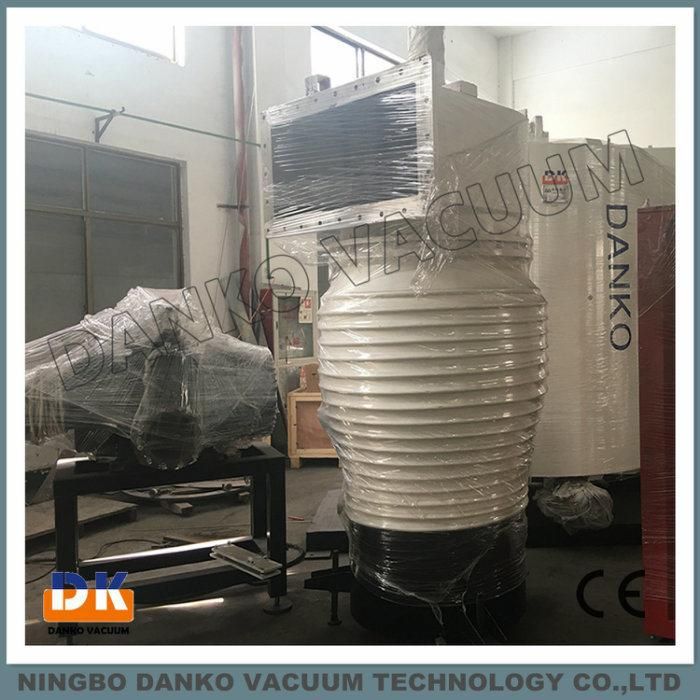

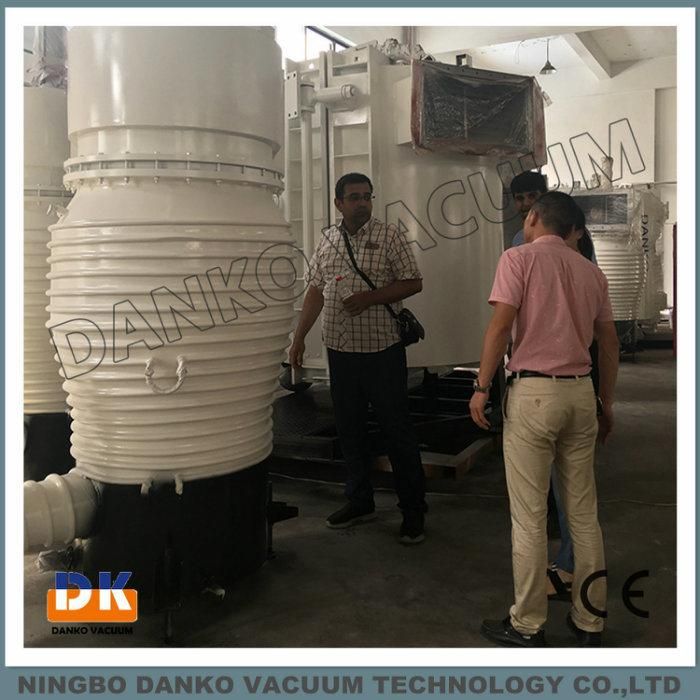

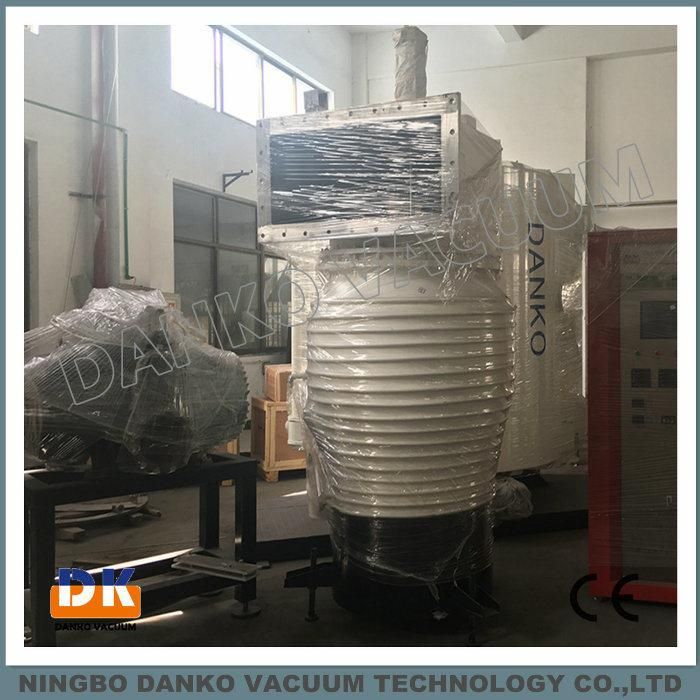

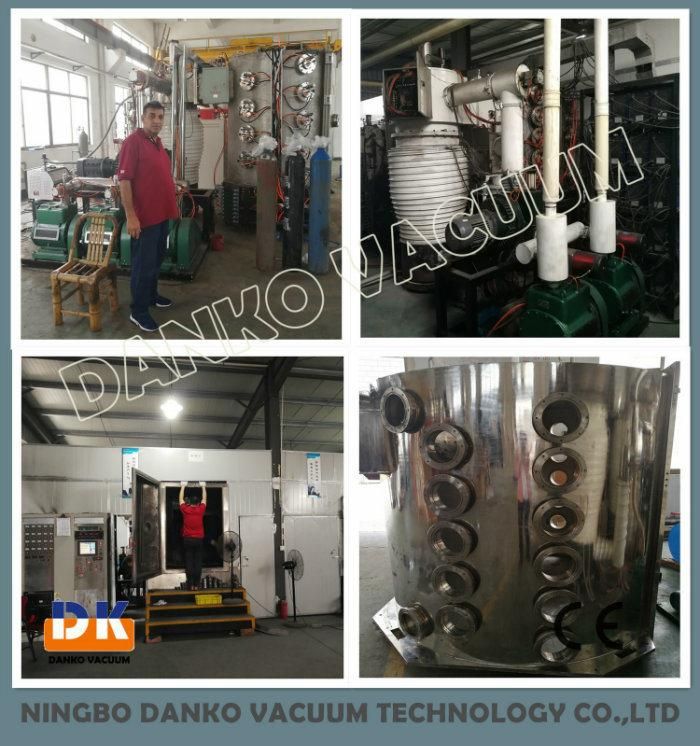

Workshop

For more details on configurations quotations, please contact us.
