Electrostatic Powder Coating Spray Booth
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:12 Moths
- Warranty:12 Moths
- Type:Powder Coating Booth
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:COLO-S-1517
- Condition:New
- Application:Powder Coating
- Dimension:W1.5m*D1.1m*H1.7m
- Name:Electrostatic Powder Coating Spray Booth
- Code:Colo-S-1517
- Voltage:110V,380V
- Power:0.75kw
- Weight:500kg
- Delivery:15-20 Work Days
- Product:Electrostatic Powder Coating Spray Booth
- Transport Package:Carton
- Specification:CE
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. COLO-S-1517 Condition New Application Powder Coating Dimension W1.5m*D1.1m*H1.7m Name Electrostatic Powder Coating Spray Booth Code Colo-S-1517 Voltage 110V/380V Power 0.75kw Weight 500kg Delivery 15-20 Work Days Product Electrostatic Powder Coating Spray Booth Transport Package Carton Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 30sets/MonthProduct Description
COLO-S-1517 Electrostatic Powder Coating Spray BoothDescription
COLO-S-1517 Electrostatic Powder Coating Spray Booth with 2 cartridge filters for recycling oversprayed powders at the powder coating process. which is ideal for small to medium accessories, its work size is Width1500*Depth1000*Height1700mm.

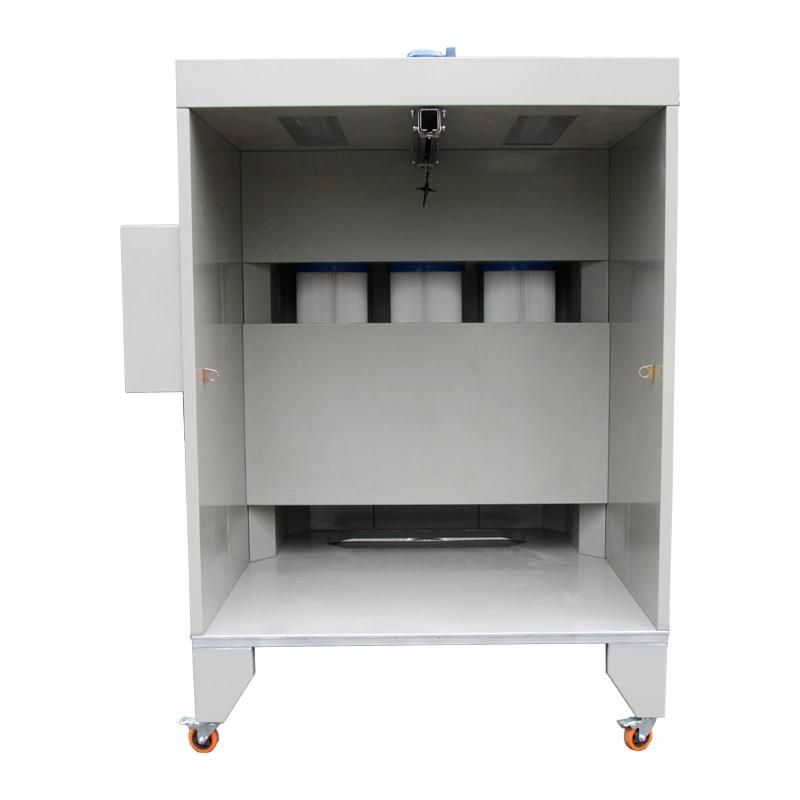

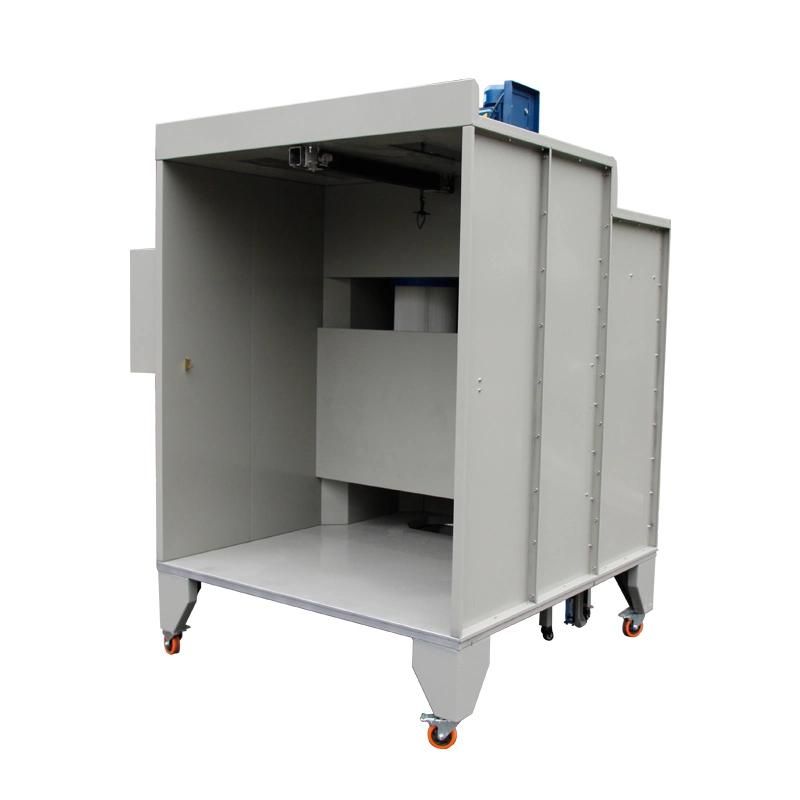

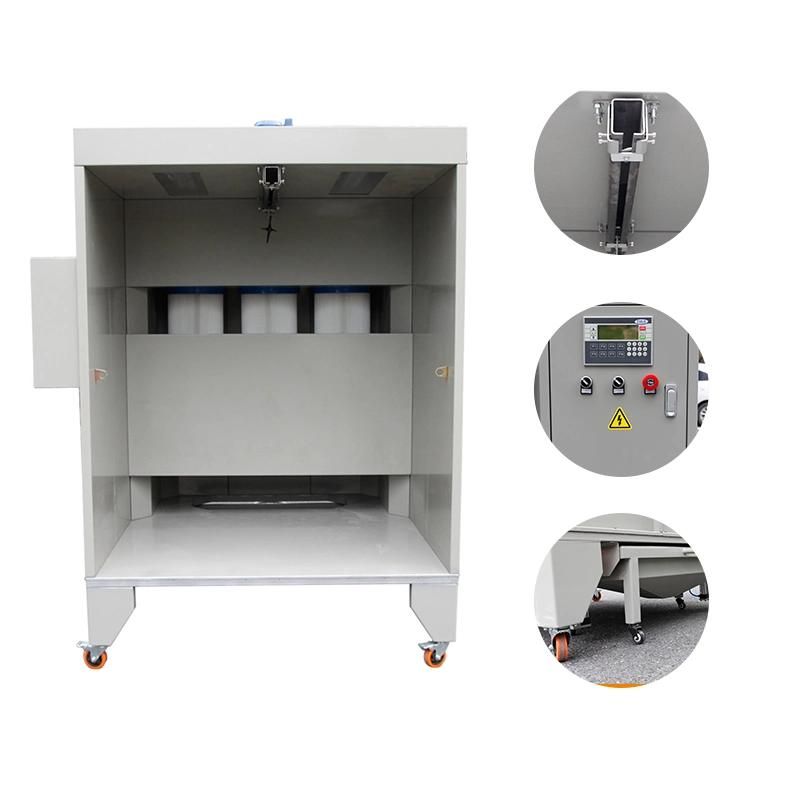

Pictures of COLO-S-1517
Specifications of Powder Paint Booth
Type | Closed |
Operator dimensions | W1500*D1000*H1700mm |
Overall dimensions | W1640*D2070*H2180mm |
Weight | 150kg |
Power supply | Electric |
Nominal power | 2.2kw |
Voltage | 380V |
Frequency | 50-60Hz |
Filters | Polyester |
Filters count | 2 (325*900) |
Filters hang type | easy for change |
Filter cleaning system | Pneumatic |
Air consumption | 4000m3/h |
Warranty | 12 months |
Working Principle of Manual PowderPaint Booth for Car Rim

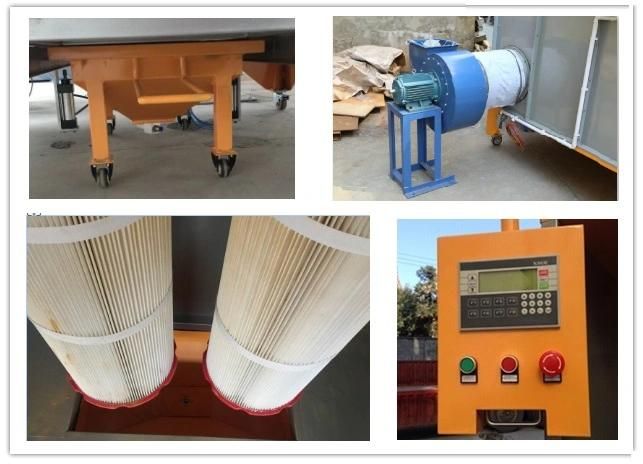

The Fan motor will provide sufficienct air flow for the booth, and the oversprayed powder will be attracted in the cartridge filters by the air flow, and powders will be shocked down from the filters to the recycling.
Cartridge Filters: we use filters D325xH900mm in the COLO-S-1517 Powder Coating Booth.
The material of the filter is Japanese imported polyester.
PLC control: easy control system, convenient for operation
Powder Tank, carry oversprayed powders for recycling
Promotion
Electrostatic Powder Coating Spray Equipment:
FAQ1.What is the working voltage?We exported into more than 90 countries ,so we can supply customer local working voltage ,when you order you just tell us which you want ,it will be ok2. How to pay ?We accept the paypal ( but credit card not accepted),western union ,bank transfer ,money gram3. How to delivery?By sea for big order ,by courier for small order ,by airlines4. Is it safe to order from FEIFU?Yes, 100% sure you are safe to order from us ,we exported into more than 90 countries ,and in many countries we have agents or distributors and we are the famous factory in the powder coating equipmen in china. Contact us :
