• Model NO.：COLO-1732
• Condition：New
• Product：Batch Electric Powder Coating Oven
• Worksize Dimensions：1650width X 3200height X 1700 Depth
• Power Supply：Electric, 12kw
• Heating Time：15-30 Mins.
• Temperature：Max 250
• Motor Power：1.5kw
• Voltage：220,380V 3phase
• Frequency：50-60Hz
• Name：Batch Electric Powder Coating Oven
• Transport Package：Bulk
• Specification：CE
• Trademark：FF
• Origin：China
• HS Code：8424909090
• Production Capacity：50sets,Month

Working size:1650width X 1700height X 3200 depth(mm)Heating time20-30minsMax.Temperature250°C (working temperature 180°C -200°C )Insulated layerThickness 100mm with high quality rock woolFan Motor1.5kw/setHeating system:24KW (12pieces electric heating tube x 2KW)

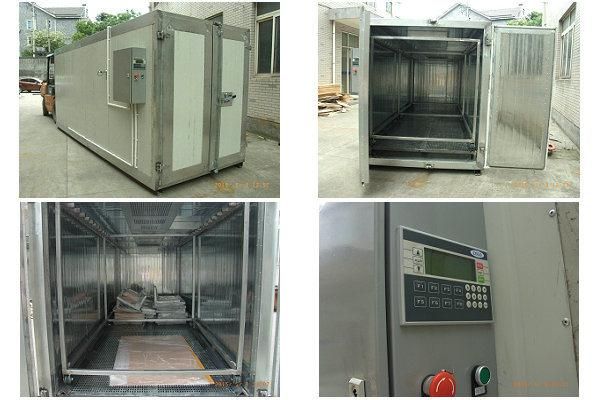

Details of Powder Coating Oven
1 PLC Control Panel: With temperature alarm; could set heating time and temperature, when heating time arrive, the oven will stop heat automatically

2  Frame trolley: to load the metal work-pieces

3  Outwall is color sheet steel, inner wall is galvanized steel, interlayer is and heat-insulation rock wool board, 100mm thickness





After sales service:
Part 1: we will supply complete related instruction in operate ,and if you need ,engineer is available to overseas to trian your worker and install the device.
Part2: our warranty can be 12 months.

We are specialized in providing service of designing, manufacturing, assembling, commissioning and training for the powder coating line. Can also supply the assistant for the new comer or customers not very familar with this industry.
