6060 Model Heavy Duty 3D Metal CNC Engraving Machine with Mach3 Controller
Jinan Upgoal Mechanical Equipment Co., Ltd.- Carving Material：All Kinds of Soft & Hard Metal
- Controlling Mode：CNC
Base Info
- Model NO.：UG-6060
- Main Axle Rotational Speed：≤24000rpm
- Milling Cutter Diameter：3,4,6,8,10,12.7mm
- Feeding Height：200mm
- Certification：ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Working Area：600*600*200mm
- Structure：Heavy Duty Whole Cast Iron Structure
- Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
- Transmission：Lead Ball Screw Transmission
- Driving Mode：Leadshine Hybrid Servo Motor Driver H2-758
- Spindle Motor：3.2kw Water Cooling Spindle or 3.5kw Air Cooling
- Control System：Mach3 4 Axis Controller

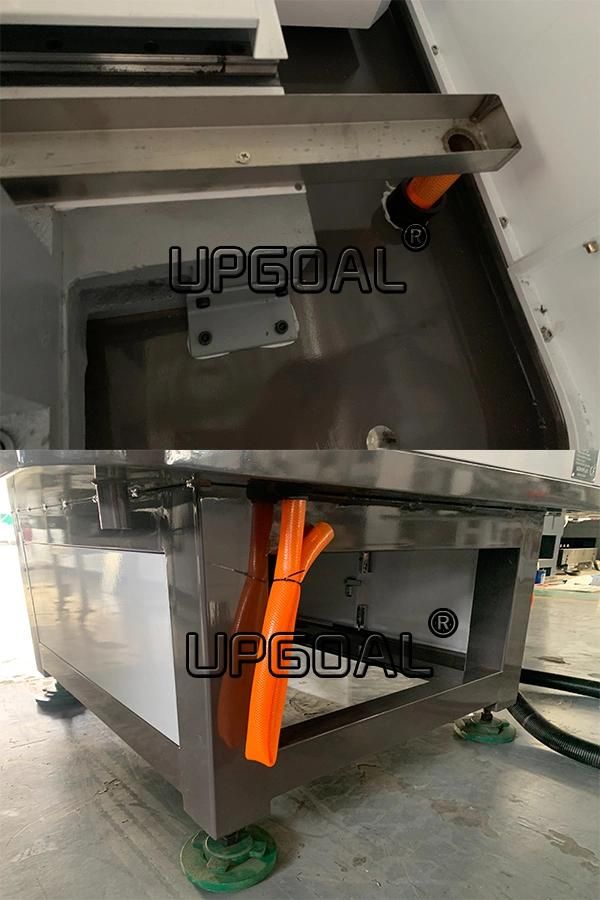

- Cooling System：Stainless Steel Water Slot Cooling
- Tools Calibration：Automatic
- Lubircation：Semi-Auto
- Transport Package：Plywood Case
- Specification：143*1980*1850mm, 700kgs
- Trademark：UPGOAL
- Origin：Jinan City, Shandong Province, China
- HS Code：84659900
- Production Capacity：200 Sets,Month
- Package size per unit product：1430.00cm * 1980.00cm * 1850.00cm
- Gross weight per unit product：700.000kg
Description
10. 4th axis rotary axis for cylinder engraving, diameter 100mm, working length 600mm, reduction gear transmission.
11. Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.
12. auto tool calibration, more convenient for operation.

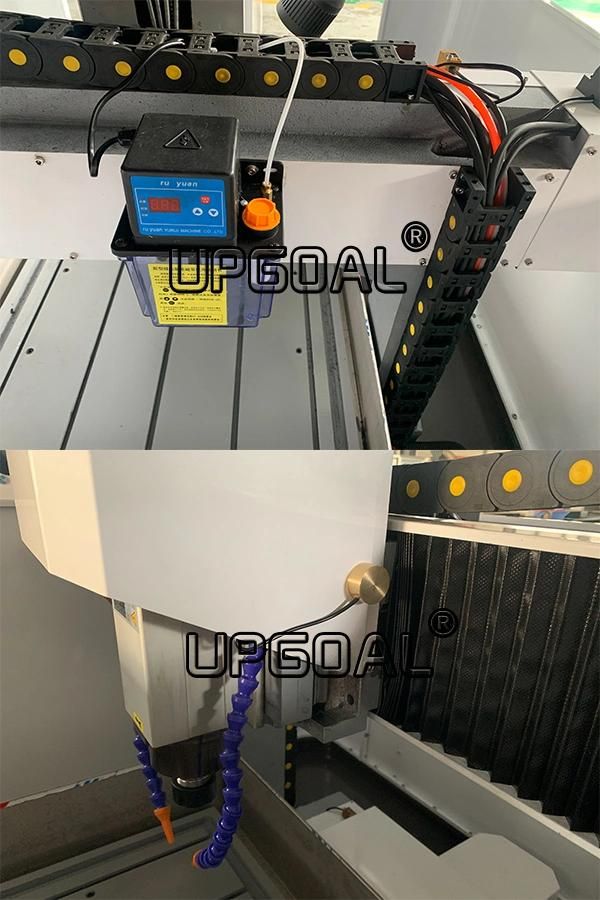

13.Auto lubrication system, more convenient for machine lubricating.

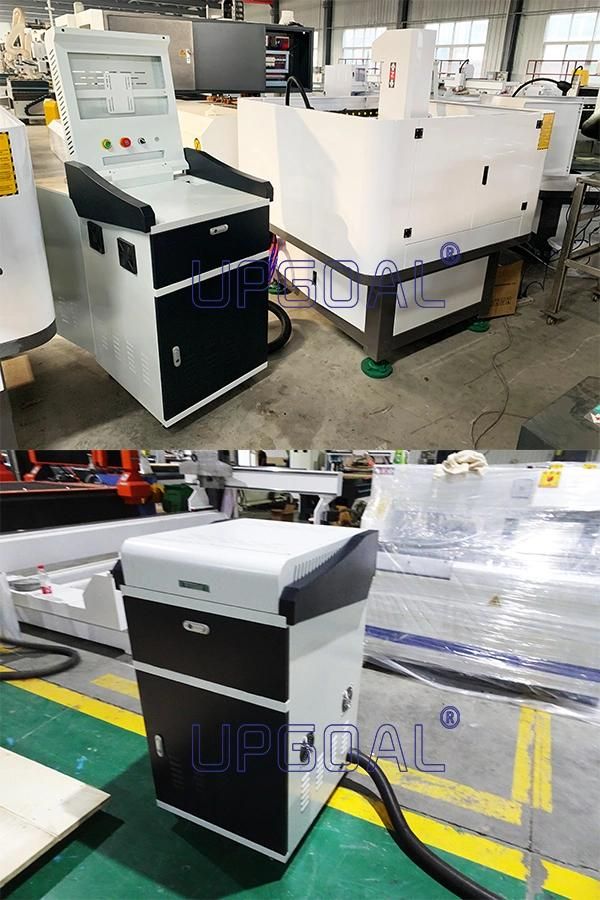

14. With independent small computer cabinet, keeps computer clean and easy to use during working.
15.With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.
16.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
17.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
Technical Parameters
Effective working area | 600(X)mm*600Y)mm*200(Z)mm |
Materials | Heavy duty cast iron machine bed & working table & gantry & Z-axis |

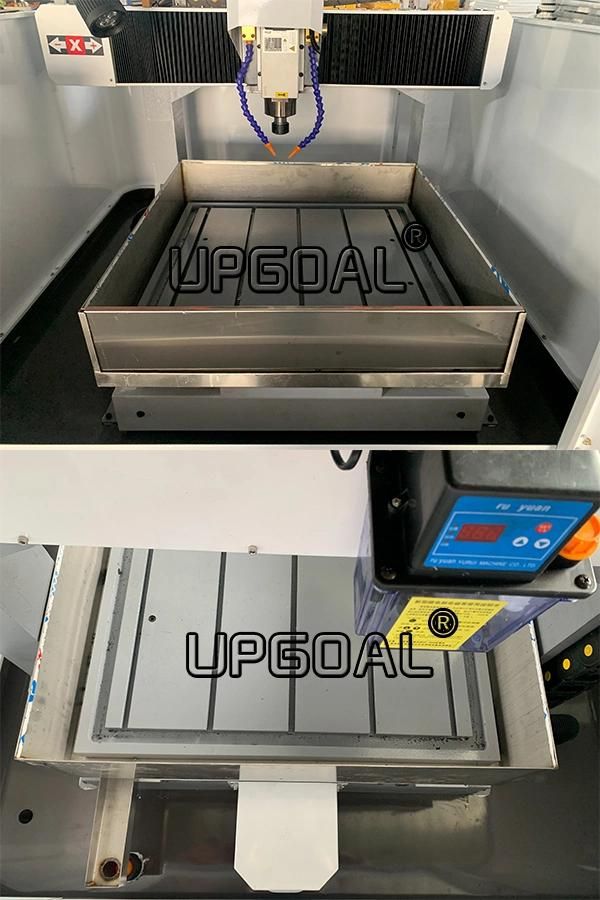

Working table | Cast iron with T slot |
Moving type | Platform moving |
Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
Transmission | Lead ball screw for XYZ-axis |
Driving mode | Hybrid servo motor and driver H2-2206 for XYZA-axis( Leadshine) |
Spindle motor | 3.2kw water cooling |
Spindle speed | 0-24000rpm |
Inverter | Fuling,3.7KW |
Voltage | AC 380V, 50/60Hz, three phases or AC 220V, 50/60Hz, single phase |
Traveling speed | >8000mm/min |
Engraving speed | >6000mm/min |
Machine accuracy | 0.02mm |
Control system | Mach3 4 axis controller with USB port |
Hand wheel | Wireless |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Cooling system | Stainless steel water slot cooling |
Tool calibration | Automatic |
Lubrication | Auto |
Protection cover | Half cover |
Computer cabinet | With |
Certificate | CE |

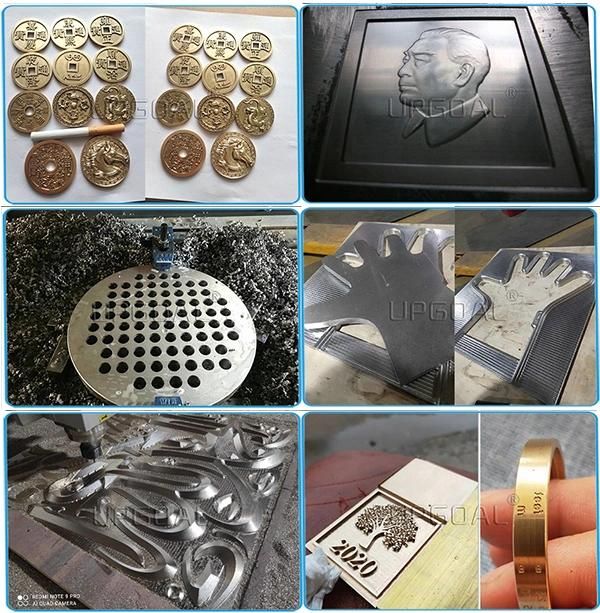

Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.
Accessories & Packing
Reference Working Videos
https://youtu.be/MG3kHaByhpc
For more information, just feel free to contact us!
