• Model NO.：HH-ZLT250
• Max. Number of Block：21
• Certification：REACH, RoHS, ISO
• Condition：New
• Wire Size：2.6-3.0mm
• Wire Finished Diameter：0.4-1.2mm
• Max Dies No.：17
• Drawing/Take up Motor：AC55kw,AC11kw
• Spool Bobbin Size：Sn500 Sn630 Option
• Power Supply：380V,50,60Hz
• Lubrication Capacity：100L,Min
• Annealing Voltage：Max 65V
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8463102000
• Production Capacity：5 Sets,Month

wire drawing machine with annealingModelZLT250/17ZLT250/21power controldual inverterwire inlet diameter2.6-3.0mm2.6-3.0mmwire finished diameter0.4-1.2mm0.4-1.2mmmax wire speed1800m/min1800m/min max dies NO.1721mechanical elongation25%+18.7%18.4%+15%construction of the machine bodaycasting+steel plate welded and annealeddrawing capastantungsten carbidefix speed capastan diameter250mmdrawing/take up motorAC55kw/AC11kw spool bobbin sizeSN500 SN630 optiontransmission typegear drivetension adjustmentbuffer rod with air cylinder and fix systemautomatic control of take up by PIDmax loading capacity250kg(SN 500) or SN630 power supply380V/50/60Hzlubrication capacity100L/minlubrication typelubrication by full immersionbrake disk type brakeannealing capacity85 KVAannealing voltagemax 65V annealing current1000ASteam consumption10-12m³/h 0.2-0.3MPacoiling water  consumption12-18m³/h 0.2-0.25MPaair consumption20-30m³/h 0.4-0.6Mpadimensions9*3*3.5Mweight7000kg

copper drawing machine Certificate of Honor

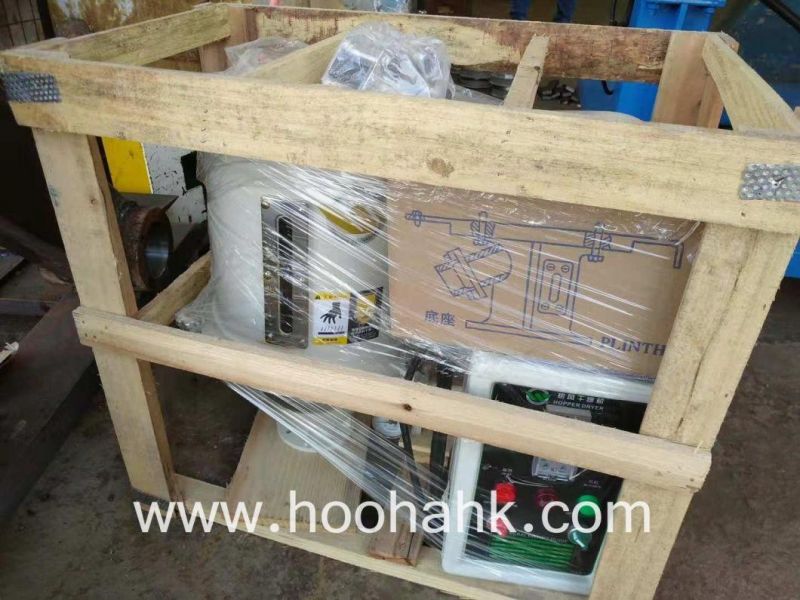

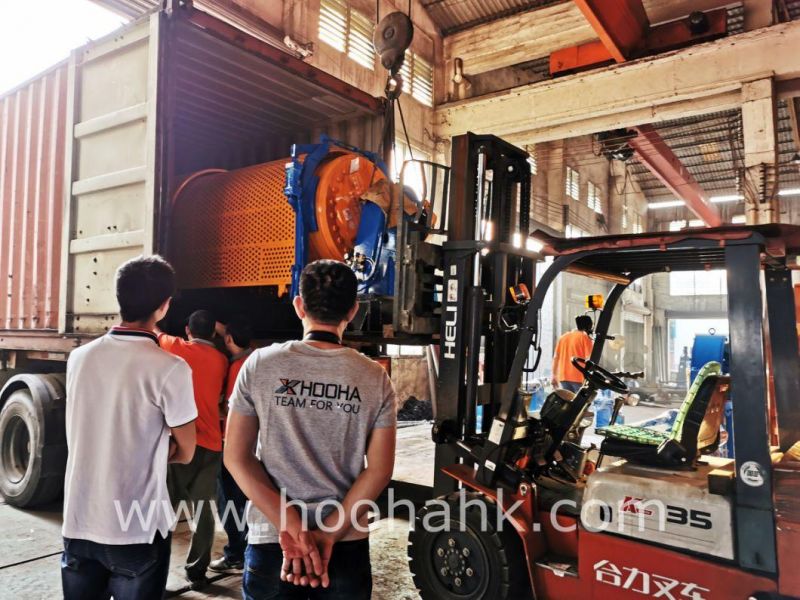

drawing machine Delivery





Drawing machien Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF




Aluminum drawing machine After service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Aluminum drawing machine Contact

Jack Young

http//:hoohaco.en.made-in-china.com
http://hoohaco.en.made-in-china.com/
Add:No. Beice District, Humen Town, Dongguan  City, Guangdong Province,China

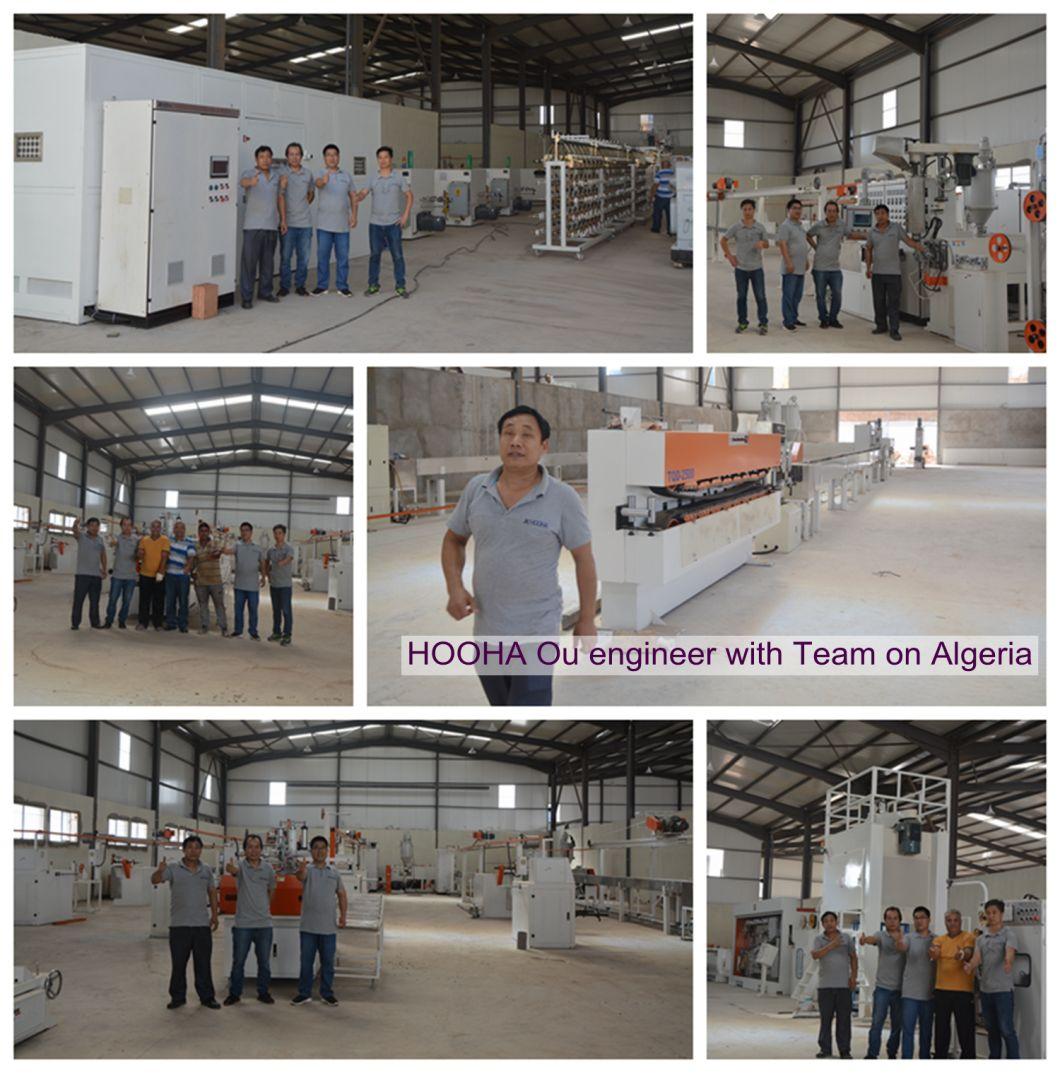

Aluminum drawing machine Professional and Strong Manufacture and Sells Team:
 Copper drawing machien Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history    ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject consulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5



Copper drawing machine Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes.
