• Model NO.：CM610
• Processing Range：2′′-24′′ 50-610mm
• Weight：45kg
• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：5000000PCS a Year

Basic Info.

Model NO. CM610 Processing Range 2′′-24′′ 50-610mm Weight 45kg Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 5000000PCS a Year

Product Description

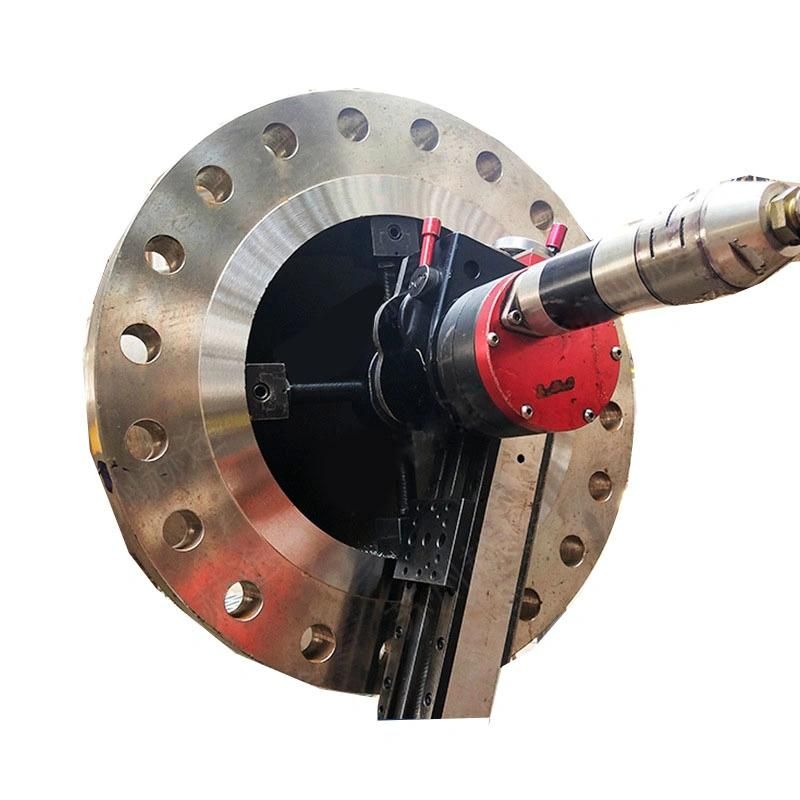

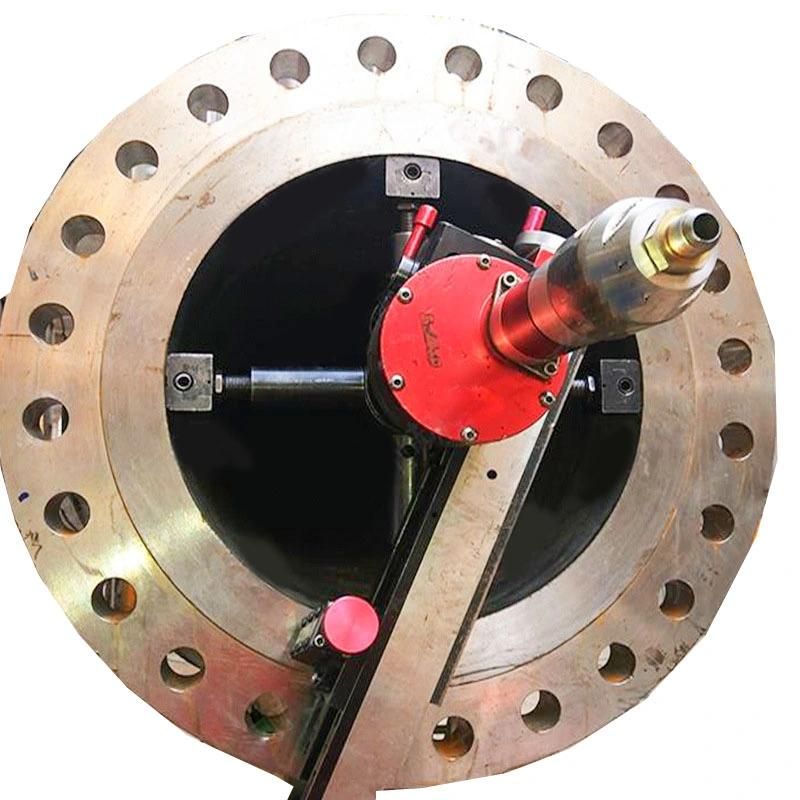

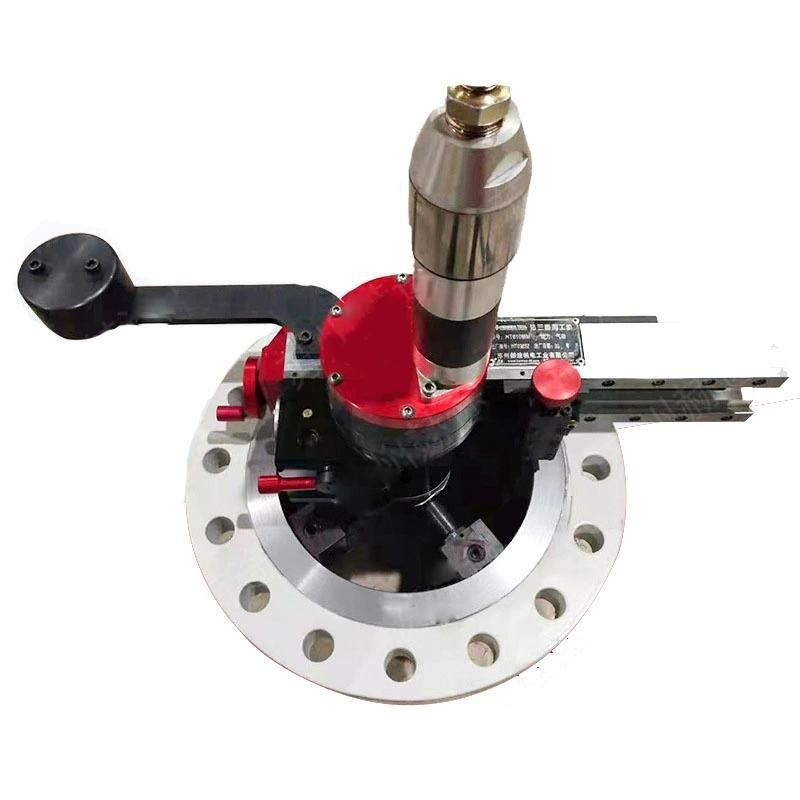

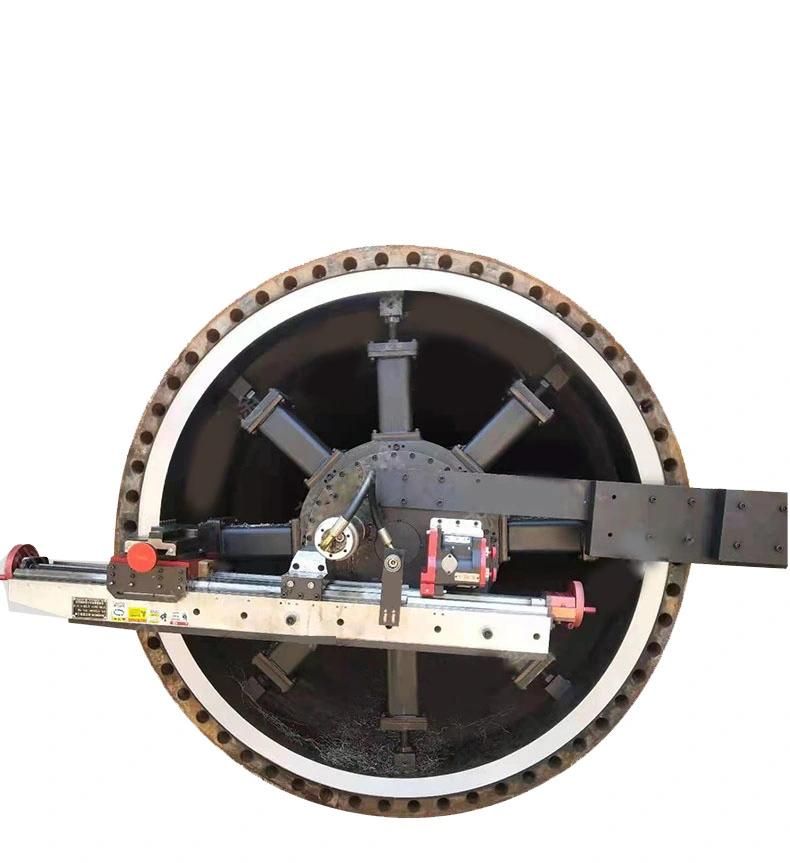

Portable Flange Facing Machine Model CM610

Portable flange surface processing machine CM610 is mainly used for on-site processing of flange sealing surfaces such as flange smooth surface, water line, straight groove, RTJ sealing groove, lens sealing surface, heat exchanger sealing surface, etc. It can be located at any angle. processing.

Processing material: cast iron, alloy structural steel, stainless steel, aluminum and other metal materials.


Mounting Method	Inner Diameter Mounted
Motor	1.1 HP
Rpm	20-43 Rpm
Weight	45KG
Clamping Range	2''-20'' 50-508mm
Processing Range	2''-24'' 50-610mm
Tool Travel Range	50mm 2''

Features:

1. Inner Clamp Installation, High Rigid Support, Suitable Big Cutting processing requirements , High efficiency
2. The tool holder angle can rotate, wide application
3. Two mode selection, Pneumatic or Electric mode
4. Feed Handwheel with scale , accuracy feeding
5. Tool Axial and radial automatic feeding with high precision
6. The tool can be adjusted in 50mm.
7. Surface roughness below Ra 0.8 um
8. Rotating Speed wide adjustable ,meet different processing requirements
9. Horizontal, Vertical, Upside, Tilting all can be installed .
10. Processing Flat face, water line, Groove etc .
