• Model NO.：QBH-A394T-1
• Material：Medium Carbon Steel
• Application：Steel Structure,Communication Tower
• Transport Package：25kg,CTN
• Specification：3,4-8,12
• Trademark：QBH
• Origin：China
• HS Code：7318159001
• Production Capacity：200ton,Month
• Package size per unit product：26.00cm * 26.00cm * 14.00cm
• Gross weight per unit product：25.000kg

Product Description

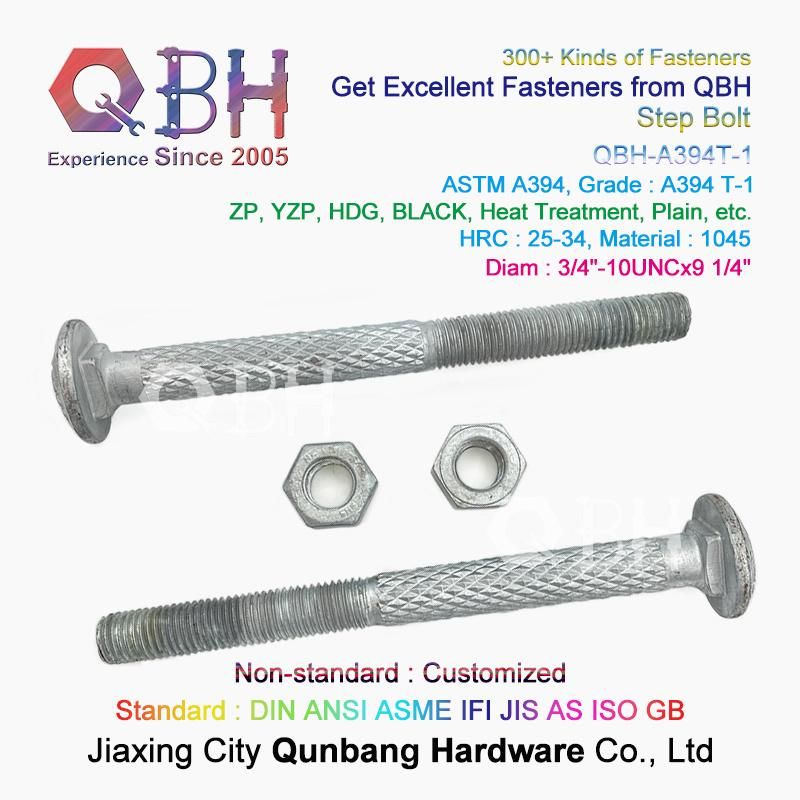

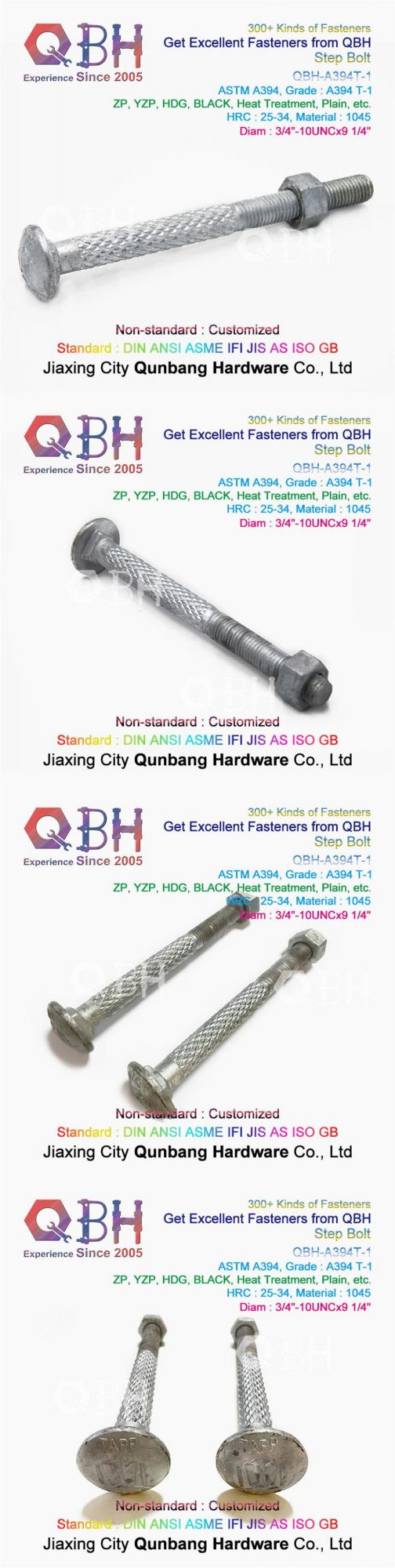

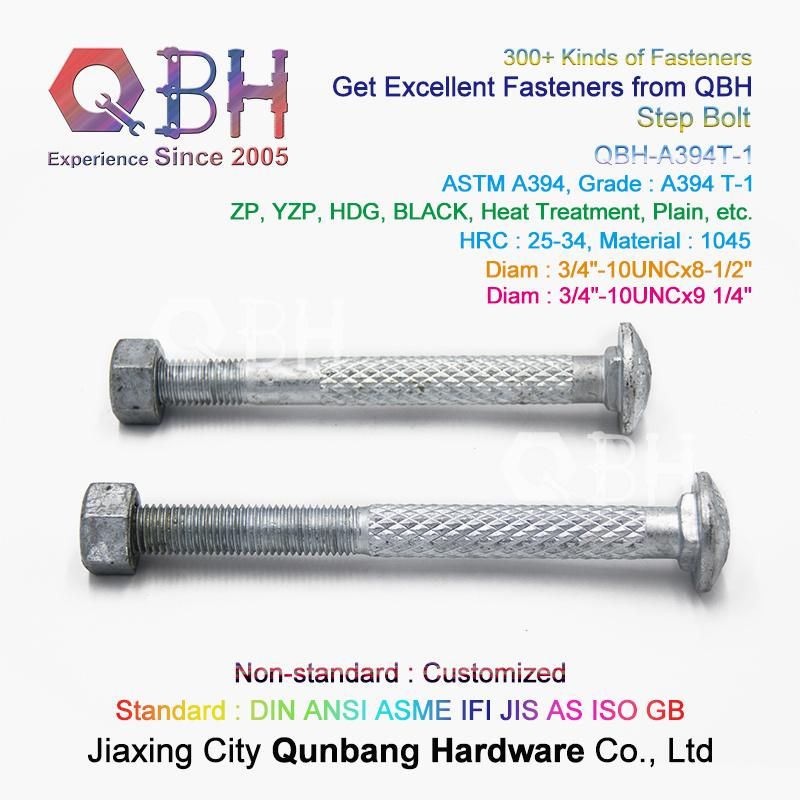

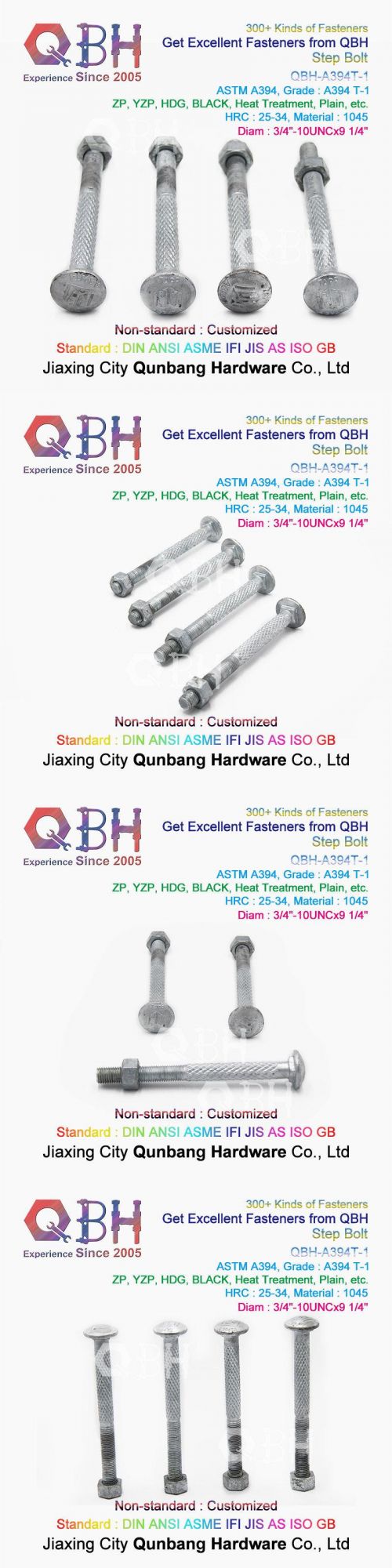

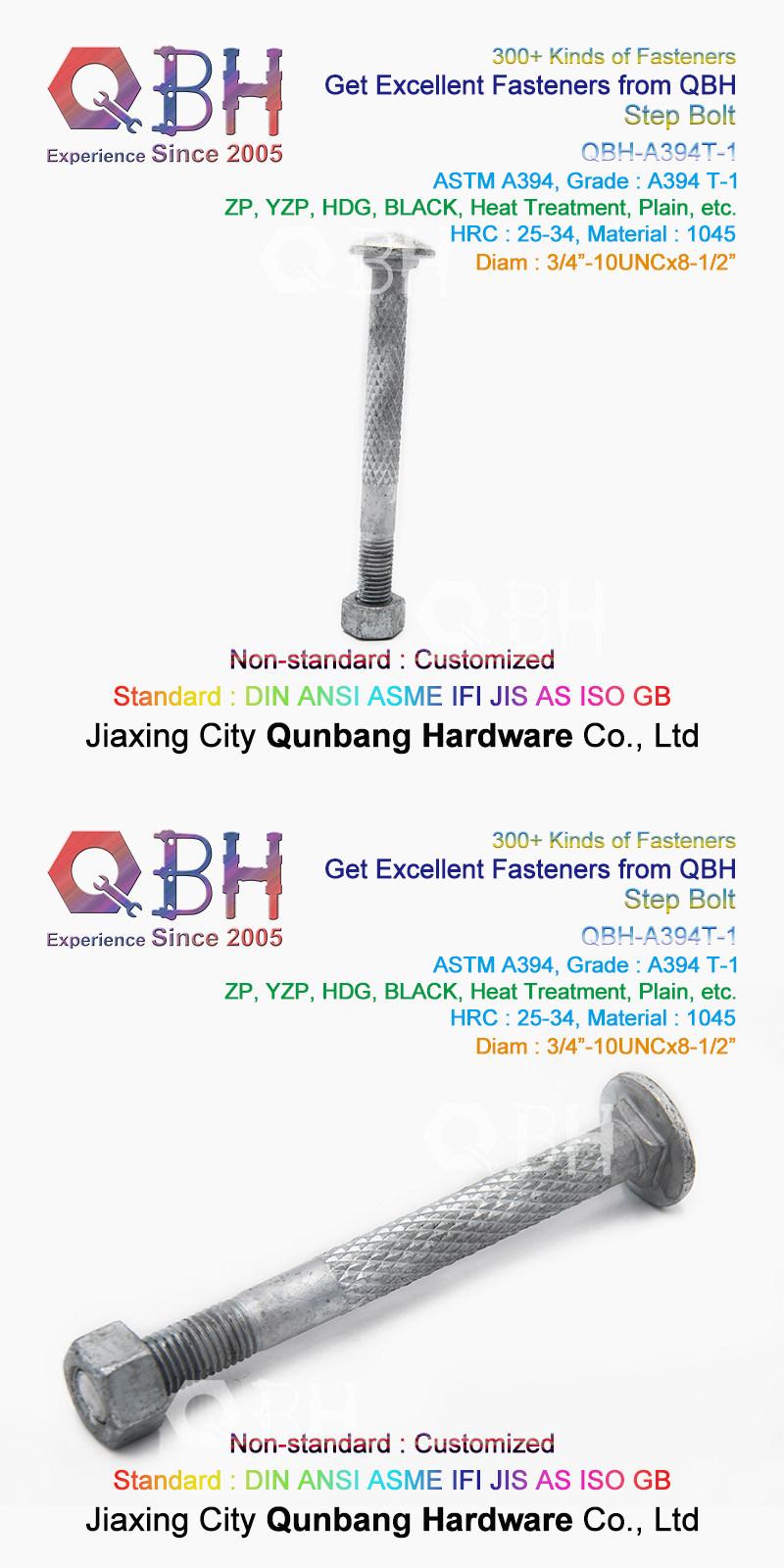

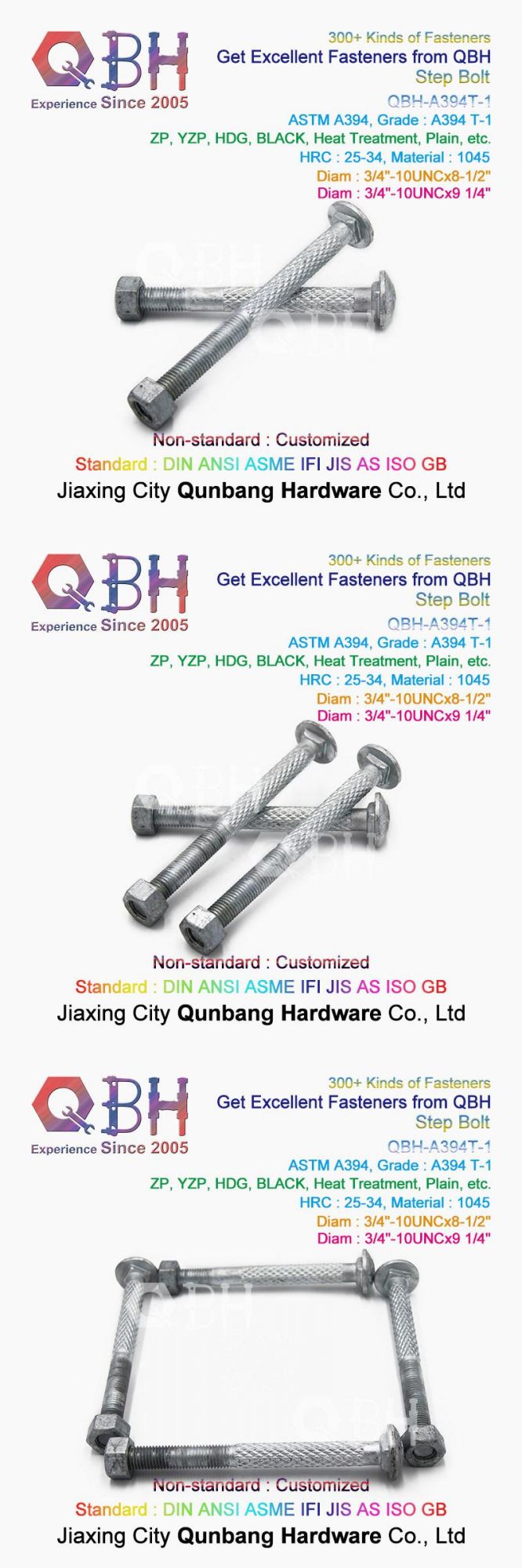

Step Bolts are used for a variety of applications, including Steel Communication, Electrical Transmission Towers,
Tower Reinforcement and a Host of Other Fastening Jobs. The best step bolts feature low carbon steel bodies and
high strength and are excellent for use with heavy hex nuts.

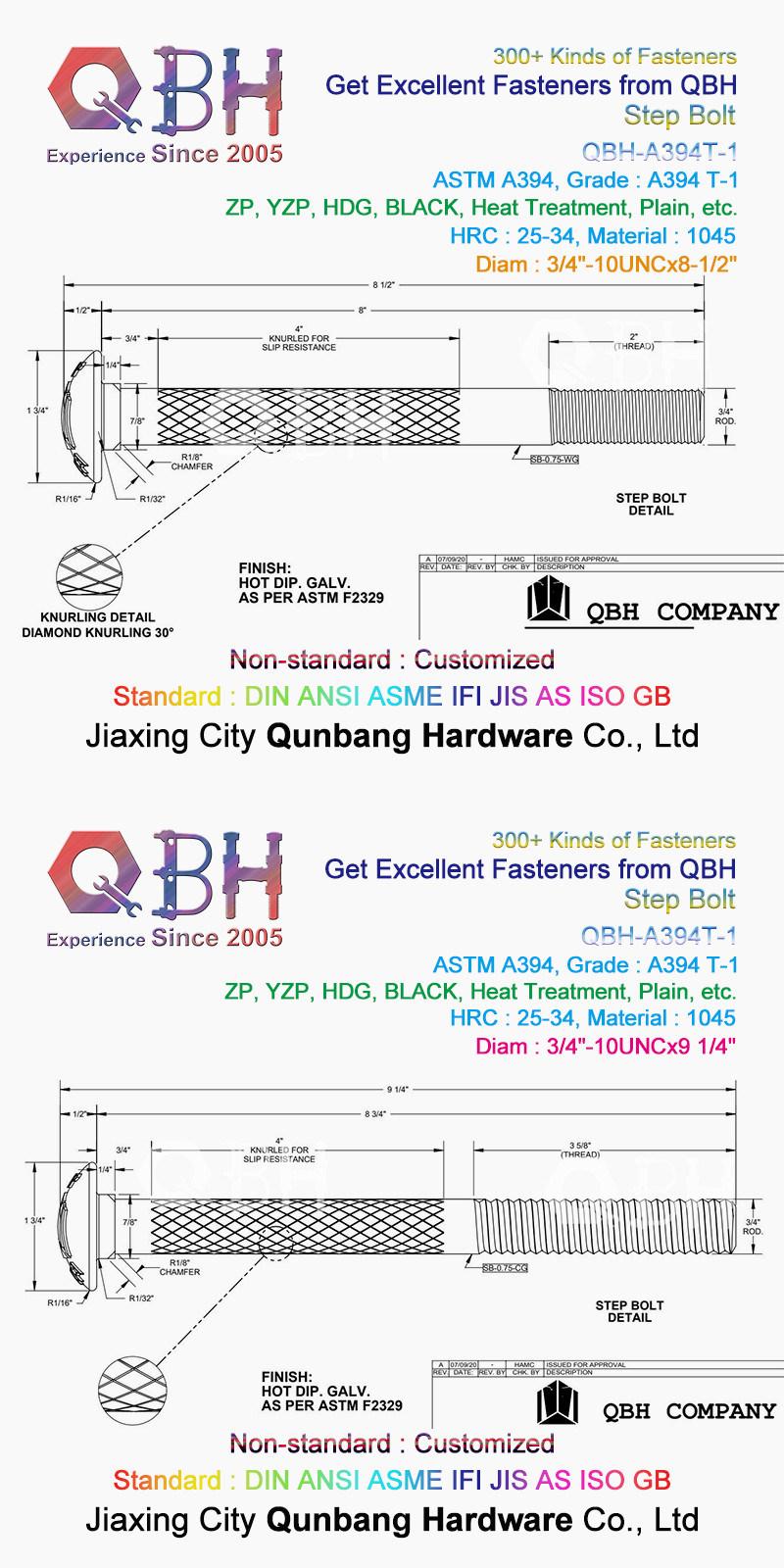

Step Bolt Dimensions

 Bolt DiameterDFHBody Diameter MaxHead DiameterHead Height ⁵⁄₈0.6522"±¹⁄₈"1/2"±¹⁄₈"³⁄₄0.752"±¹⁄₈"1/2"±¹⁄₈" Item( Knurled ) HDG ASTM A394 Tp 1 Step Bolt SupplierQBHWebqbfastener.en.made-in-china.comStandardASTM A394 T-1 ( Type 1 )HRC25-34Material1045 Medium Carbon SteelDiam Diam : 3/4"-10UNC x 8-1/2",
Diam : 3/4"-10UNC x 9 1/4",
Customized: Other Size.FinishHDG Standard : A153,  HDG Thickness : AVG53um;
Customized: ZP, YZP, HDG, BLACK, Heat Treatment, Plain, etc.CustomizedYes,
the real price is determined by product standard , specifications, size , surface treatment, packaging, etc. So , please inquire us.

Heavy Hex Head Structural Bolts from QBH company help you secure steel-to-steel
structural connections. These rugged steel bolts come in Galvanized, Hot Dipped
Galvanized, Yellow Zinc and Plain finishes.

ASTM A394 Specification covers the chemical and mechanical requirements of hexagon
and square-head zinc-coated steel bolts and atmospheric corrosion-resistant bolts for use in
the Construction of Transmission Towers, Substations, and Similar Steel Structures.
The following Types of bolts are: Type 0 includes hot-dip zinc-coated bolts made of low or
medium carbon steel, Type 1 includes hot-dip zinc-coated bolts made of medium carbon
steel, quenched and tempered, Type 2, and Type 3 includes bare, quenched, and tempered
bolts made of weathering steel. Steel for the manufacture of bolts shall be made by any of
the following processes: open-hearth, electric-furnace, or basic-oxygen. Type 1 bolts
produced from medium carbon steel shall be quenched in a liquid medium from above the
austenizing temperature.
Type 1 bolts produced from medium carbon steel to which chromium, nickel, molybdenum,
or boron were intentionally added shall be quenched only in oil from above the austenitizing
temperature.
Type 3 bolts shall be quenched only in oil from above the austenitizing temperature.
Cold-headed Type 0 bolts shall be stress relief annealed before zinc coating to
remove cold work effects such that the hardness measured anywhere on the surface or
through the cross-section shall meet the requirement specified. Different tests shall be
conducted in order to determine the following mechanical properties of bolts: hardness,
tensile strength, and shear strength.

ASTM A394 Bolts can be used for many different applications that include fastening wood,
steel, and other construction materials for projects such as docks, bridges, highway structures,
and buildings. ASTM A394 Hex Bolts and ASTM A394 Hex Head Bolts is some of the toughest
fasteners.
These ASME SA394 sturdy fasteners are used to connect heavy materials.

Bolts are externally threaded fasteners used in industrial and construction applications for
assembling two unthreaded products together and available in hundreds of combinations
of materials, heads, threads, plating, heat treating, and secondary operations. We are
manufacturer & supplier of ASTM A394 studs such as All-Thread, Tap-End, Double-End
Studs, and Combination Studs, different types of nuts such as Hex Nuts, Heavy Hex Nuts,
Overtapped Nuts, Tommy Hole Nuts, Spherical-Faced Nuts and Full Threaded Rods, full
thread rods, bonnet bolts, Carriage Bolt in a variety of finishes and sizes from 1/2" to 3 1/2".
In the petroleum and chemical industry the fully threaded stud is the most common
ASTM A394 Bolt used for flanged connections. ASTM A394 Stud bolts are available in all
thread pitches (UNC/UNRC - UNF/UNRF - 8UN) diameters and metric sizes.

ASTM A394 Hex Cap Screws- also known as machine bolts or hex bolts are available in
various bolt grade markings and strengths. Our ASTM A394 Nut Bolts Hex Bolts, Tab Bolts,
Flange Bolts, Carriage Bolts, Shoulder Bolts and T Head Bolts are used to attach machine
threaded fasteners when joining materials together.

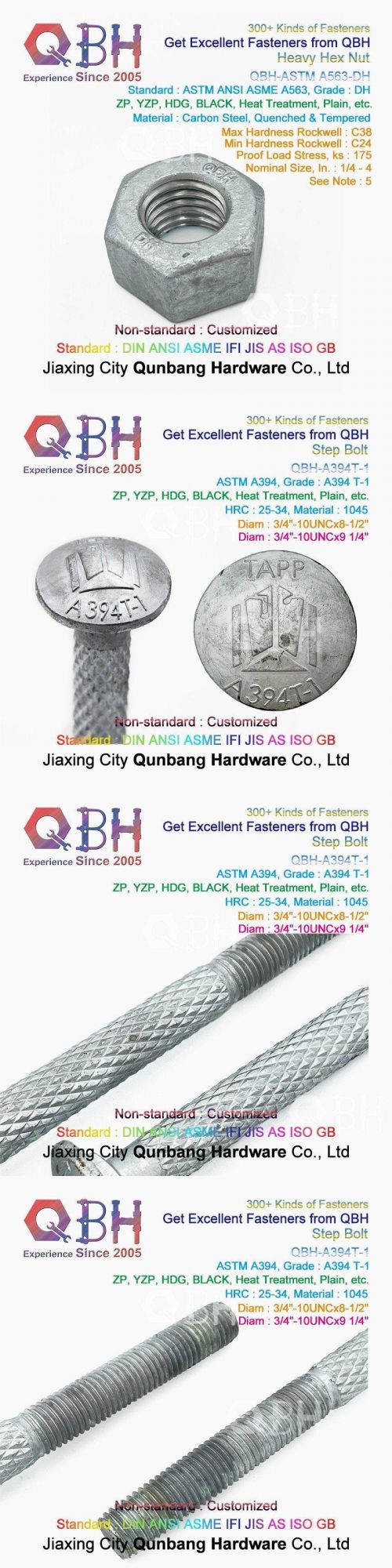

Step Bolts

Step bolts are literally used as steps on steel communication and electrical transmission towers.
These bolts are generally provided with two A194 grade 2H heavy hex nuts. One nut is tightened
against the thread run out. The unthreaded shank, or step length, typically ranges from 6″ to 10″.

Manufacturing
Portland Bolt manufactures step bolts in 5/8″ diameter and 3/4″ diameter. Step bolts are high strength
and are typically manufactured to ASTM specification A449.




Finish



PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON

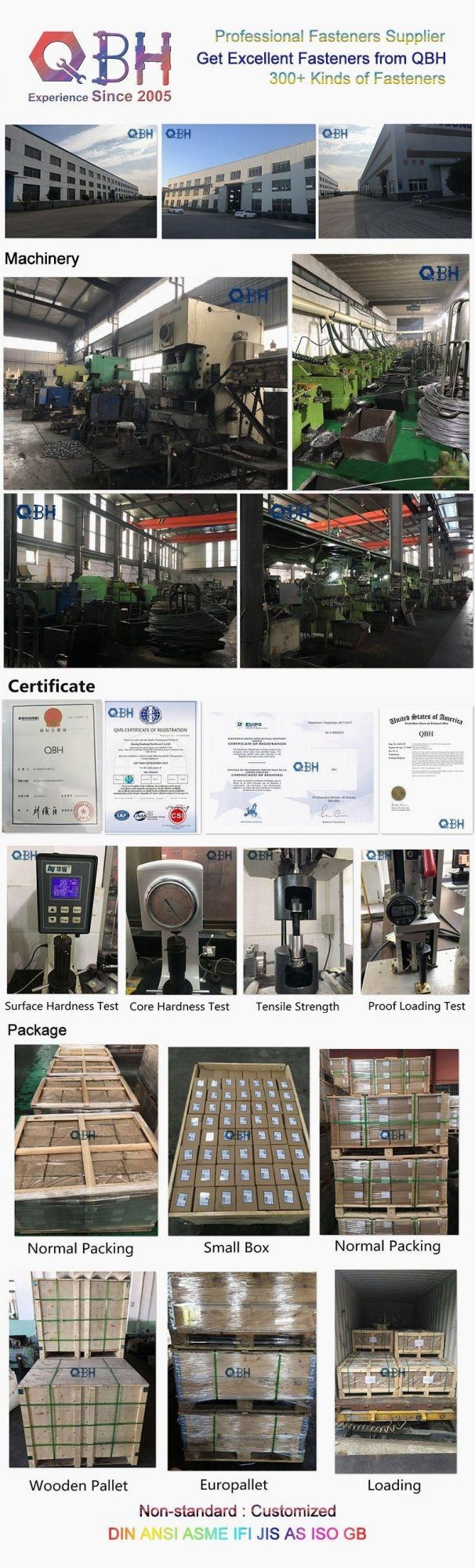

Packing

QBH Bulk
20-25kg/Ctn,36ctns/Pallet
20-30kg/Bags,36bags/Pallet
One Ton/Boxes
50kg/ Iron Drum,12 Iron Drums/Pallet



QBH Small Packing

Packing in small boxes according to customer's requirements

Packing in plastic bag according to customer's requirements



QBH Pallet Type

Solid Wood Fumigation Pallet
Euro Pallet
Three Splint Pallet
Wooden Box




The Advantages of QBH

• QBH brand sales to the main quality assurance.
• Years of export trade management, excellent service, word-of-mouth guarantee.
• By working with TUV,escort for quality.
• Customization of non-standard parts can be made according to customer's requirements and drawings.
• For quality customers,we can provide a certain credit period.

Our Services

Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers'
specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply
Perfect fastening solution with 15+ years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: customized services according to the samples and drawings offered.

Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware
 We Promise:
1.High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service

FAQ
1.What's your experience like?

Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.

2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price for you
refer at once.

3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we can provide you MTC and mill certificate when the goods is finished.

4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce
your goods.

5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.

6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.


Awaiting for your kind inquiry! Thanks & best regards!
For more information:  http://qbfastener.en.made-in-china.com
