• Model NO.：DM-293
• Weight：14260
• Automatic：Fully Automatic
• Container Size：40hq
• Stretcher：40t
• Transport Package：Wooden Box and Paper Box
• Specification：32000x6000x1200
• Trademark：dynamax
• Origin：Foshan
• Production Capacity：30-50

Basic Info.

Model NO. DM-293 Weight 14260 Automatic Fully Automatic Container Size 40hq Stretcher 40t Transport Package Wooden Box and Paper Box Specification 32000x6000x1200 Trademark dynamax Origin Foshan Production Capacity 30-50

Product Description

  .   --Extruder models: 700T    direction: ?
--Specification:L: 32m    W: 6m    spacing: 1.2m     all 26
--type:Four felt belt drive.
--Total power: 43KW
--Air consumption: 1m³/,0.4-0.7MPa
. Initial table
--Dimensions:L7000×W530 ( equipped with clamp)
--Felt roller with high transmission:70×50×400mm  Roller spacing:400mm   Temperature:600ºC
--Saws with manual break,With aluminum scrap recycling bins
--Air-cooled devices: the top with a long nozzle fan 0.37kw 8sets

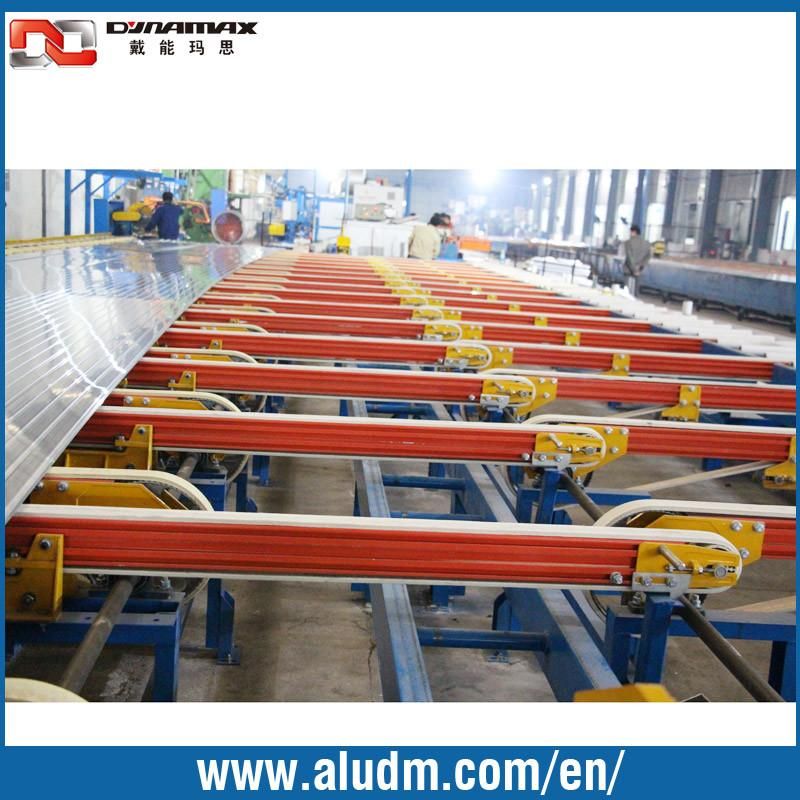

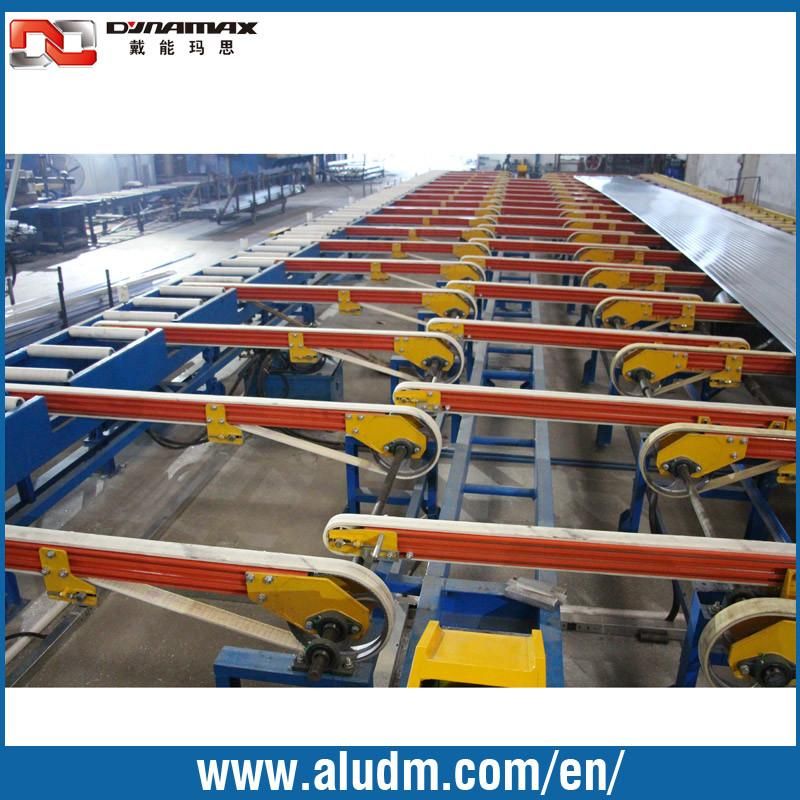

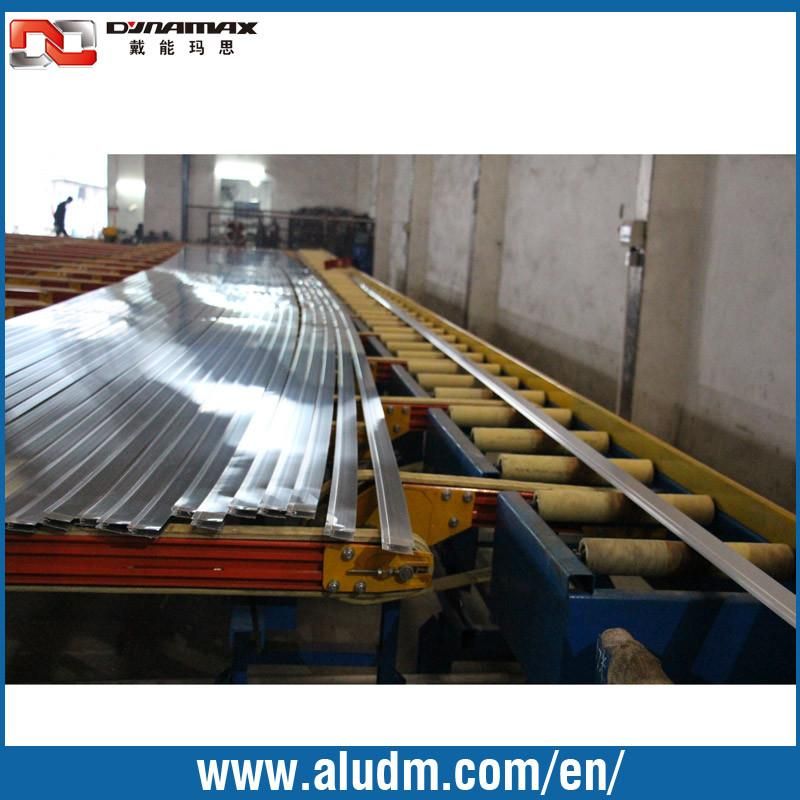

. Run-out table ( hydraulic lift) folded plate
--Dimensions:L32000×W530×H850mm
--Felt roller with high transmission:96×76×400mm  Each cell 3  Roller spacing:400mm   Temperature:500ºC
---- Axial fan with the number: 10, 180W / Taiwan;
--Hydraulic lifting device 1 set;power: 4KW
