• Model NO.：JK-FS-2500A
• Mesh Opening Size：100*100-300*300mm
• Mesh Width：Max.2.5m
• Mesh Length：6m
• Control System：Panasonic PLC
• Raw Material：Ribbed Bar&Round Bar
• Welding Speed：45-60times,Min
• Voltage：220,380,415,440V
• Power Supply：120kw

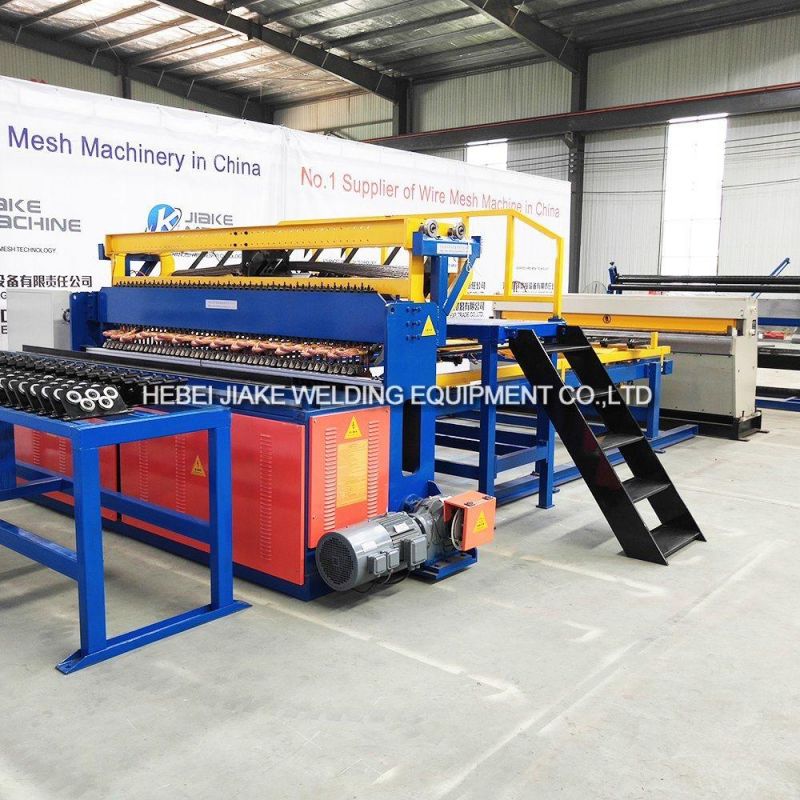

• Machine Name：Fence Mesh Making Machine 3-8mm Manufacturer
• Transport Package：Plastic &Wooden Box
• Specification：CE, SGS, ISO
• Trademark：JIAKE
• Origin：Anping, Hebei, China
• HS Code：8463300000
• Production Capacity：4500kg
• Package size per unit product：840.00cm * 320.00cm * 170.00cm
• Gross weight per unit product：4500.000kg

Model
JK-FS-2500AWire diameter3mm-8mmLongitude wire space100mm-300mmCross wire space50mm-300mmMesh widthMax.2.5mLongitude wire feedingPre-straightened &pre-cutWelding speed45-60times/minCross wire feedingPre-straightened &pre-cutWelding electrodes48pcsRated electrical power125kva*6pcsMachine size8.4m*3.2m*1.7mWeight4500kgPacking& delivery60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire
Application: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding
Material: low carbon wire, galvanized wire.

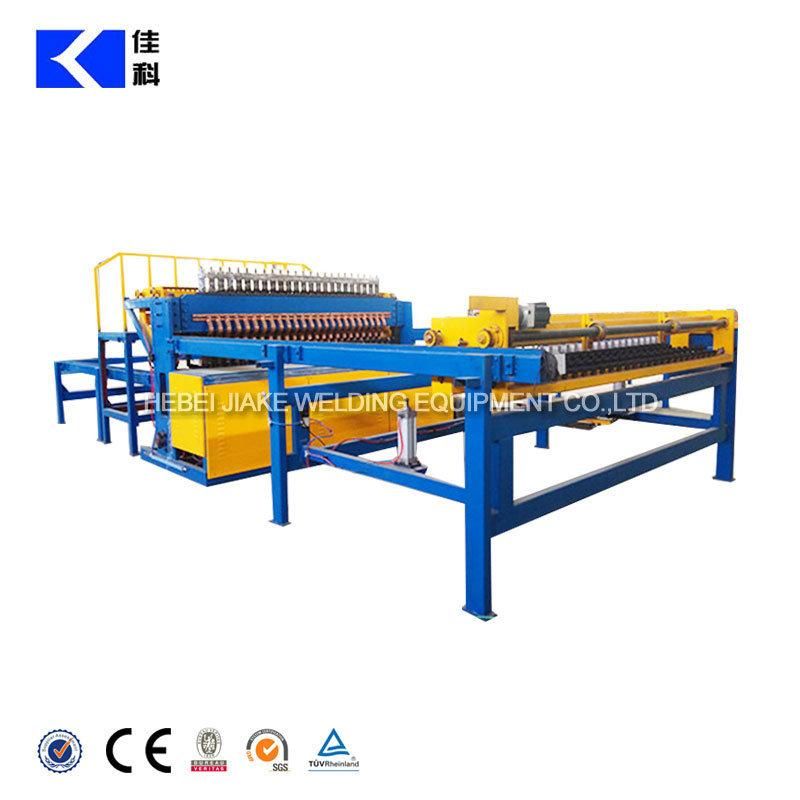

Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh

wire diameter 5-12mm
mesh width 2.5m
mesh length max 12m
aperture 100-300mm
welding electrode 24pcs
welding transformer 150KVA*12
welding speed: 30-65 cross wires/min

Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh


wire diameter 3-6mm
mesh width 2.5m
mesh length max12m
aperture 50-200mm
welding electrode 48pcs
welding transformer 150KVA*12
welding speed  45-75 cross wires/min
mesh drawing device, powered by Servo motor
line wire: pre-straightened and precut or coil wire
cross wire:pre-straightened and precut

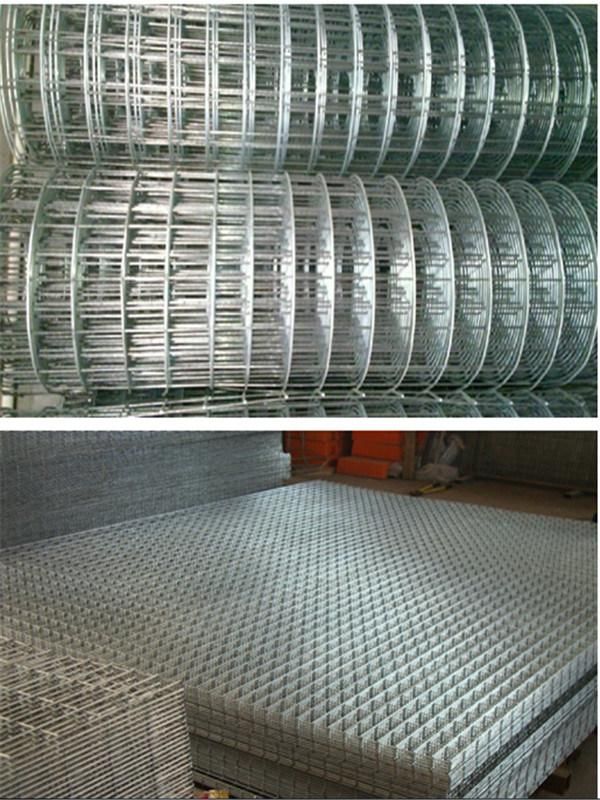

end products: roll mesh or panel mesh

Machine cataloge
wire mesh welding machine
fence mesh welding machine
chicken cage welding machine
rabbiet cage welding machine
reinforcing mesh welding machine
automatic welded mesh machine
 producttion line of wedged screen and steel gratings.
