Embossing Machine with Orange Skin Mold
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- After-sales Service：Whole Life After Sale Service
- Type：Straightening Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：CCC, ISO9001, CE
Base Info
- Model NO.：zh
- Warranty：24 Months
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Width of The Panel：1300mm
- Thickness of Coil：1-2mm
- The Diameter of The Rollers：320mm with Hard Chroming Treatment, CNC Processing
- Thickness of The Middle Panel：80mm
- Control System：PLC Control
- Roller Shaft：Upper 5 Rows Bottom 6 Rows
- Main Machine Structure：350 H Steel with 16mm Thickness Plate CNC Milling
- Line Speed：0-30m,Min
- Main Power：7.5kw Motor
- Cutter：Cut to Length Motor Control
- Accurate：1mm
- Material of Blade：Cr12MOV with Hard Heat Treatment 55-62 Degree
- Bearing：High Speed Motor Bearing
- Transmit：Gear
- Transport Package：Water Proof Plastic Film Cover
- Specification：1300mm *2mm
- Trademark：ZHONGHENG
- Origin：China
- HS Code：8462399000
- Production Capacity：50 Sets ,Months
Description
Main parameter1 Suitable to process G550 Galvanized steel 2 Width of the plate 1220mm(Max) 3 Thickness of plate 0.6mm 4 Power 7.5kw 5 Diameter of embossing rollers 320mm 6 Plate thickness 80mm 7 Size (Approx) 1.5m*2m*1.5m 8 Weight 2500kg
Usage :Accessories of the roll forming machine. The usgae is leveling and cutting .

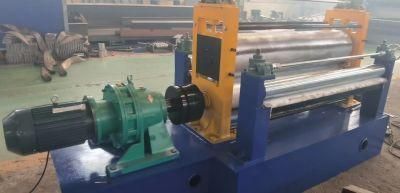

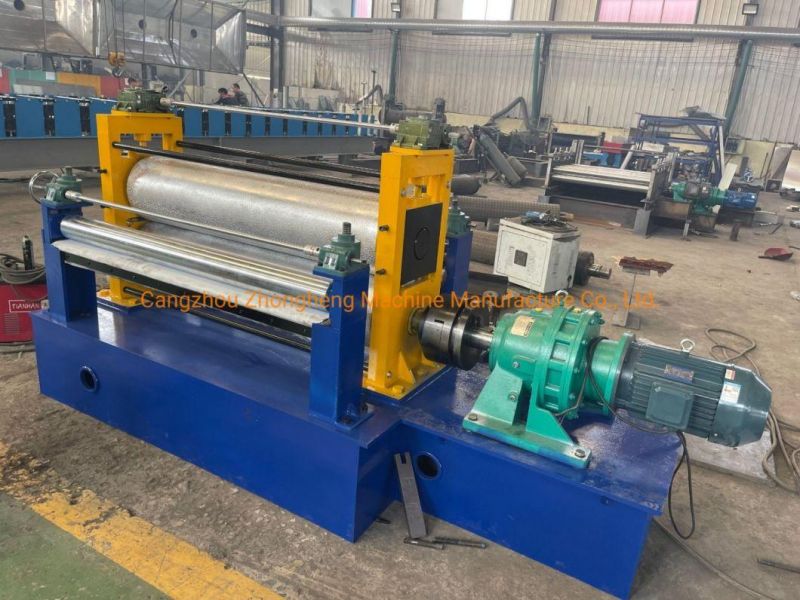

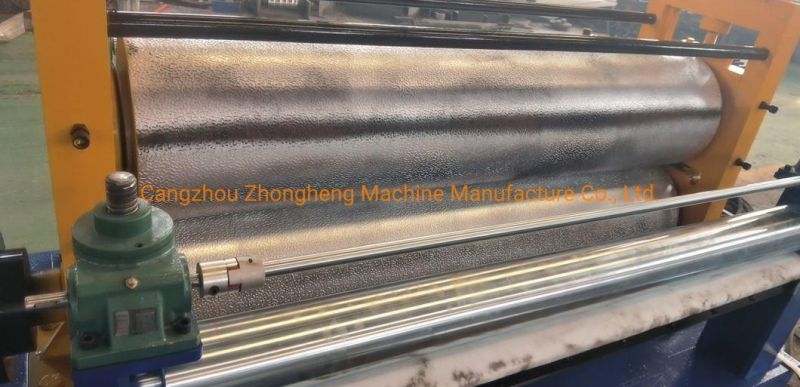

Machine picture

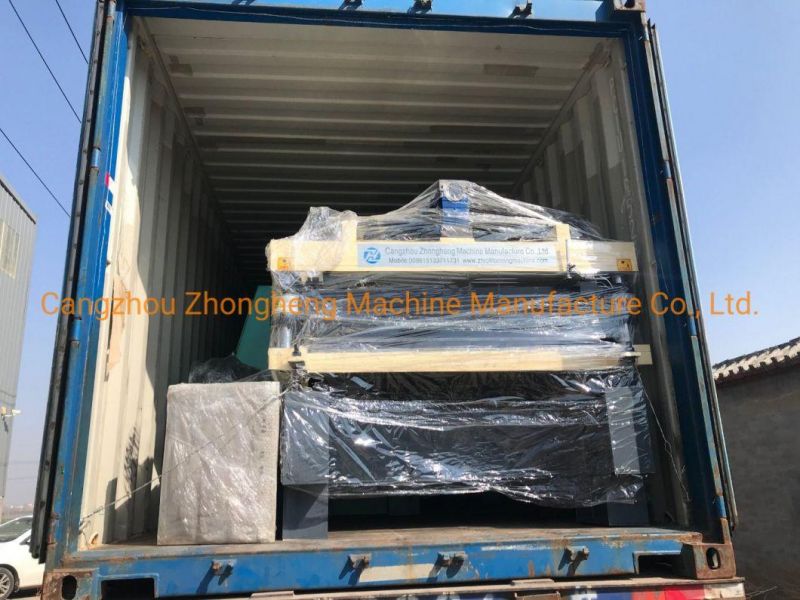

Package and shipment
This machine can load with the hydraulic decoiler and other machines together in one 20' container.
