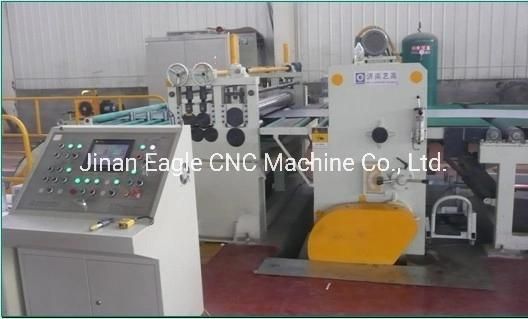

China Galvanized Aluminum Sheet Stainless Steel Coil Cutting Machine/Cut to Length Line
Jinan Eagle CNC Machine Co., Ltd.- Type：Cut to Length Line
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
Base Info
- Model NO.：ECL-8X1600
- Advantage：Work Flexible
- Condition：New
- Processing Material：Cold,Hot Rolled,Galvanized,Stainless,Carbon Steel
- Processing Thickness：2-8mm
- Processing Width：900-1600mm
- Cutting Accuracy：±0.5mm
- Max. Speed：35m,Min
- Max. Cutting Frequency：30spm
- Uncoiling Weight：25t
- Certificate：Ce, ISO9001
- Guarantee Period：12 Months
- Transport Package：Seaworthy
- Specification：CE, ISO9001
- Trademark：Eagle
- Origin：Jinan, Shangdong
- HS Code：8462312000
- Production Capacity：60 Sets,Year
Description

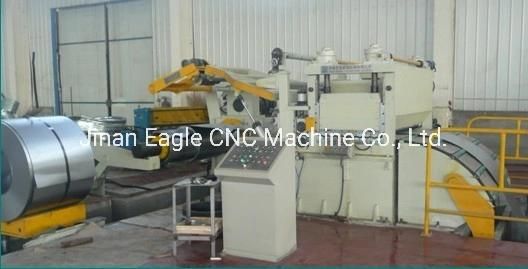

Uncoiling Unit
This uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.
Leveler
The leveler of our cut to length line may have various designs, from 2H, 4H or 6H. It can be flexibly controlled and can carry out good leveling of the plate materials. Its leveling roll is made of roll steel with a chrome-plated surface. It is of good abrasion resistance and long service life.
Feeder and Shear
Our cut to length line employs a pair or two pairs of feed rolls, driven by an AC servo motor, to feed the strip to the set length precisely. They ensure fast positioning with little error. These feed rolls are compatible with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment. It can be equipped with a roll type or a belt type conveyor.

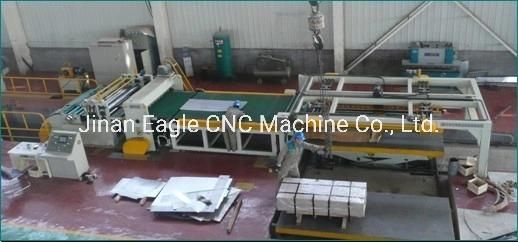

Stacking Unit
Our cut to length line can be equipped with a pneumatic or electromagnetic stacking unit. It is equipped with a blower to protect the surface from scraping. Both longitudinal and transverse stacking are available.

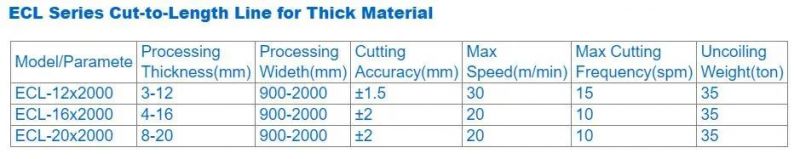

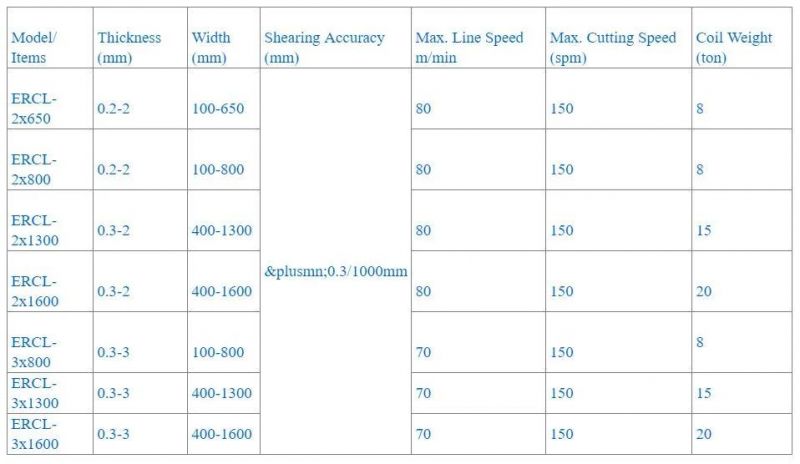

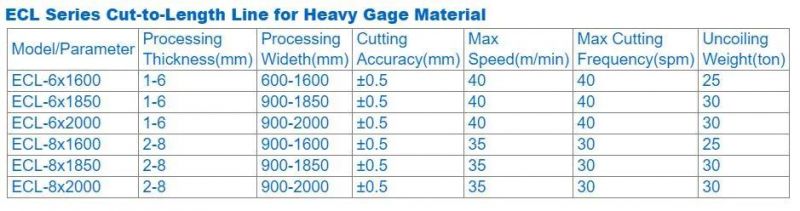

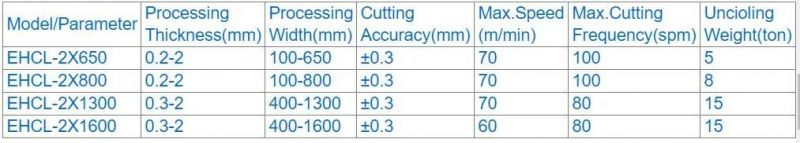

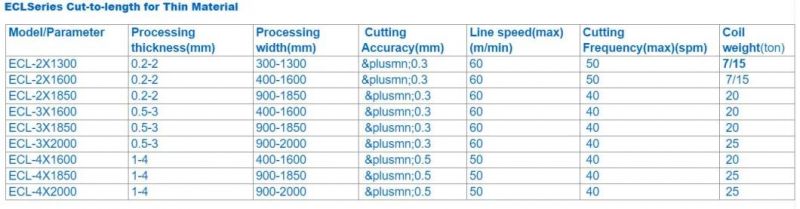

Besides,there are also other types of ECL series cut to length lines,all the cut to length line are sa follows:
Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Postscript
Years of practice make us deeply understand the inherent requirement of modern production, insist to do production of the user's strong backing, insist to provide the industry's most sophisticated and efficient slitting equipment.
We offer high quality machines and first class service to our clients, we sincerely hope our machines can make many years prosperity for our customers.
