Two Roller Type Round Black Steel Bar Straightening Machine with High Efficiency
RealWell Machinery Co., Ltd.- Type：Balance Roller Straightening Machine
- Usage：Pipe, Bar
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Small Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：JY80Z
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Transport Package：Seaworthy Package
- Specification：weight: 16.3T
- Trademark：RW
- Origin：Shandong, China
- Production Capacity：1000PCS,Year
Description

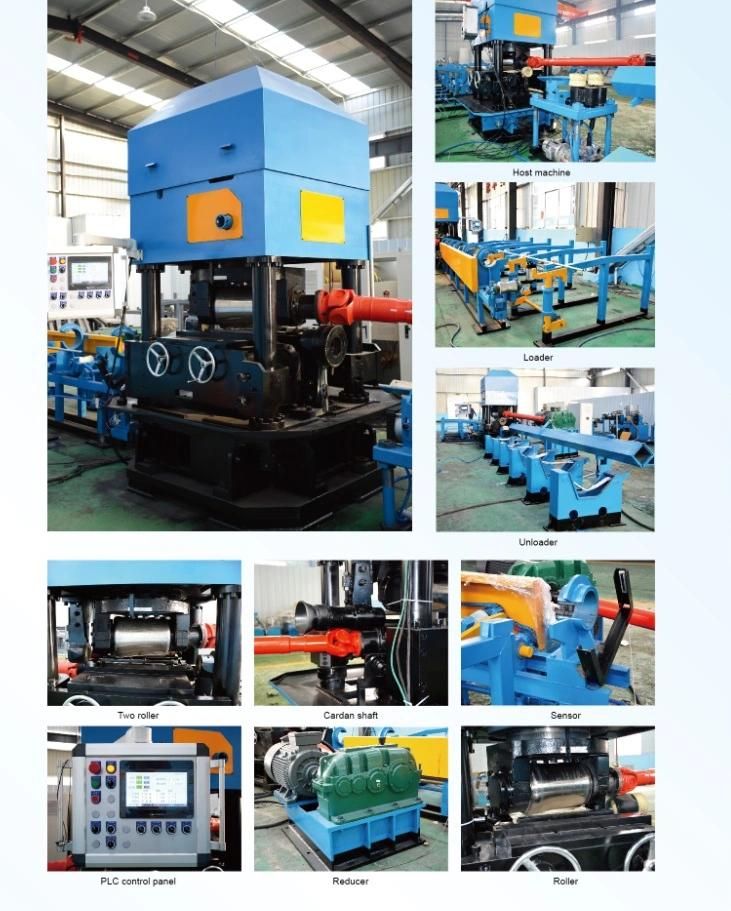

Compositions
Optional Models
| Model | Input Dia | Length | Feeding Speed | Surface Roughness | Straightness | Spindle Motor | Total Capacity |
| JY20Z | ф5-ф20mm | ≥2000mm | 2-30m/min | Ra≤0.8 | ≤0.25mm/m | 2×7.5KW | 18KW |
| JY40Z | ф8-ф40mm | ≥2000mm | 2-30m/min | Ra≤0.8 | ≤0.25mm/m | 2×22KW | 47KW |
| JY60Z | ф10-ф60mm | ≥2000mm | 2-30m/min | Ra≤0.8 | ≤0.25mm/m | 2×37KW/55KW | 90/100KW |
| JY80Z | ф20-ф80mm | ≥2000mm | 2-20m/min | Ra≤0.8 | ≤0.25mm/m | 2×55KW/75KW | 125/170KW |
| JY100Z | ф25-ф100mm | ≥3000mm | 2-15m/min | Ra≤0.8 | ≤0.25mm/m | 2×75KW | 170KW |
| JY130Z | ф35-ф130mm | ≥3000mm | 2-15m/min | Ra≤0.8 | ≤0.25mm/m | 2×90KW | 200KW |
| JY160Z | ф40-ф160mm | ≥3000mm | 1-10m/min | Ra≤0.8 | ≤0.25mm/m | 2×132KW | 280KW |
| JY200Z | ф60-ф200mm | ≥3000mm | 1-10m/min | Ra≤0.8 | ≤0.25mm/m | 2×185KW | 410KW |

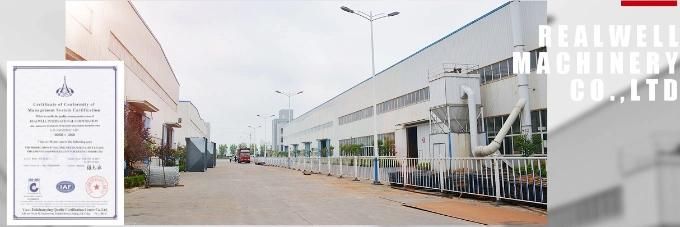

Our Factory
Realwell Machinery Co.,Ltd is a high-tech enterprise integrating product development, manufacturing, sales and service, located in Yantai City, Shandong Province. Its main products such as the peeling machine, straightener, combined drawing unit, polisher, centreless grinder, chamfering machine and auxiliary machine etc. have been widely used in deep processing of non-ferrous metal, ferrous metal and profile in various industries, the quality and accuracy of which are both well received by customers.
Its products have been exported to Russia, India, Pakistan, Vietnam, Iran and so on, and greatly welcomed by the customers in these countries.
Realwell Machinery Co.,Ltd is committed to the surface treatment industry, bringing China's high-quality products to the world.
