Best Price Fully Automatic Stainless Steel Wire Drawing Machine

Kaiye Wire Mesh Machinery Co., Ltd.
  • Type：LZ Straight-Line Metal Drawing Machine
  • Usage：Wire, Prestressed Steel Wire
  • Metal Material：Stainless Steel
  • Outlet Diameter：0.5-4.5mm
  • Max.Inlet Wire Dia.：6.5mm
  • Block Dia.：560mm

Base Info

  • Model NO.：KY-LZ-560
  • Max. Number of Block：9
  • Certification：RoHS, ISO
  • Capstan Diameter：560 mm
  • Drawing Speed：10-15 M,Min
  • Drawing Dies：9
  • Tensile Strength：≤1300
  • Wire Material：Stainless Steel Wire
  • PLC Brand：Siemens
  • Motor Power：22-37 Kw
  • Color：Customizable
  • Transport Package：Wooden Pallet and Plastic Package in The Container
  • Specification：ISO, SGS
  • Trademark：KAIYE
  • Origin：an Ping He Bei China
  • HS Code：8463102000
  • Production Capacity：30set,Month

Description

PRODUCT OVERVIEWStainless steel straight line wire drawing machineThe main features of the straight line wire drawing machine are that the drum adopts narrow slot water cooling, and the drawing die adopts direct water cooling; the cooling effect is good; the transmission efficiency is high and the noise is low; the fully enclosed protection system is adopted, and the safety is good; the air tension tuning is adopted, and the drawing is stable.

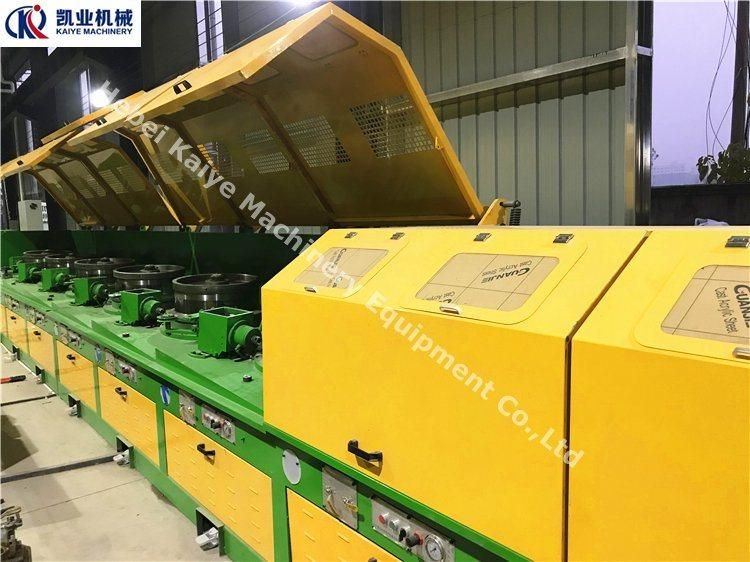

Best Price Fully Automatic Stainless Steel Wire Drawing MachineMachine description
The stainless steel wire straight wire drawing machine is different from the ordinary wire drawing machine, it adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawing products. It is suitable for drawing various stainless steel wires with diameter less than 12mm.

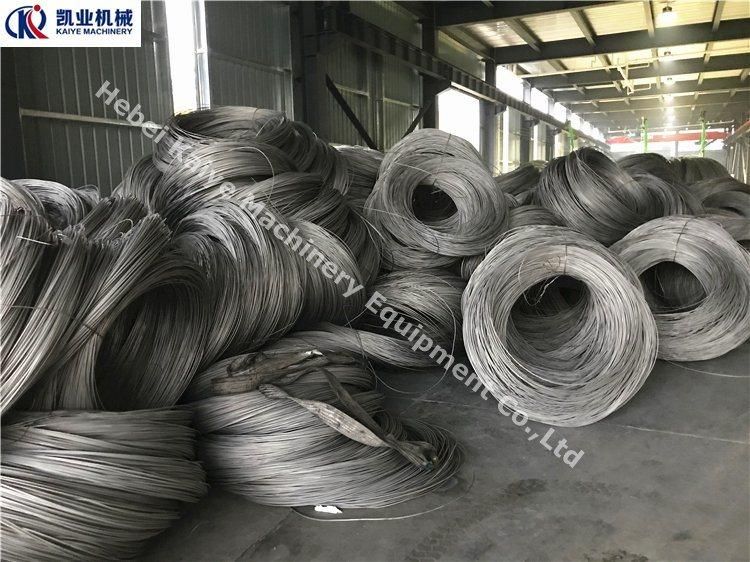

Best Price Fully Automatic Stainless Steel Wire Drawing MachineRaw Material

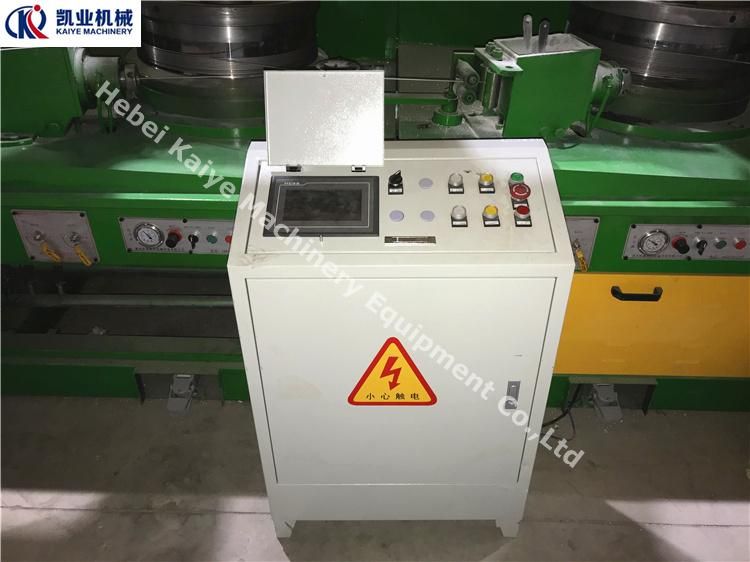

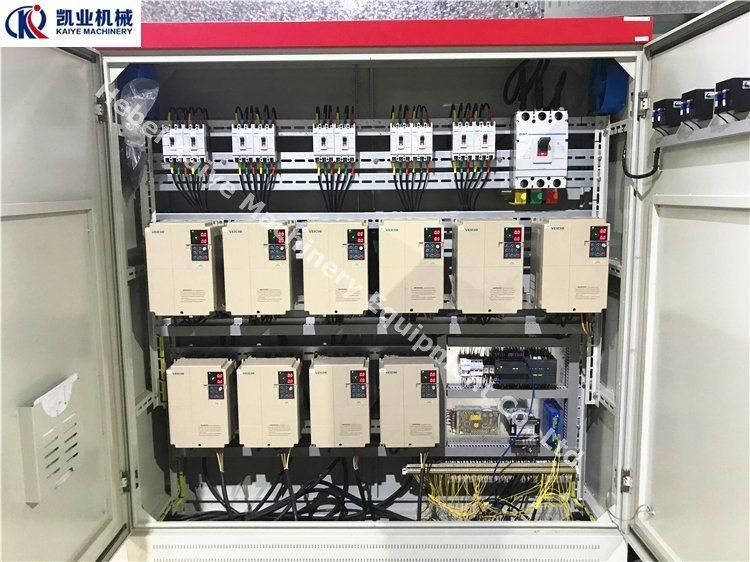

Our High quality stainless steel wire drawing machine is mainly used for drawing stainless steel wire. PRODUCT SPECIFICATIONS ModelUnitLZ400LZ560LZ600LZ800Capstan diametermm400560600800Drawing diesTimes9999Inlet wire diametermmΦ2.5-4.5Φ5.5-6.5Φ6.5-8.0Φ8.0-10.0Outlet wire diametermmΦ0.8-1.4Φ1.6-2.0Φ2.0-3.0Φ2.8-3.5Drawing speedm/s12-1810-158-128-10Total reduction rate%90.3290.5390.5390.53Motor powerKw7.5-1522-3722-3737-75PRODUCT DESCRIPTIONBest Price Fully Automatic Stainless Steel Wire Drawing MachineBest Price Fully Automatic Stainless Steel Wire Drawing MachineControl cabinet
High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.Inverter

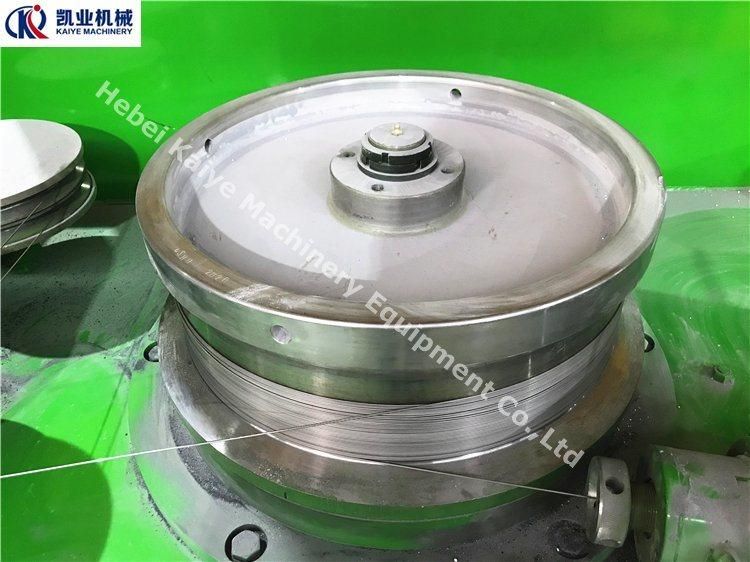

The inverter cabinet has good heat dissipation performance, hard oxidation surface treatment, good friction resistance, and can effectively prevent dust.Best Price Fully Automatic Stainless Steel Wire Drawing MachineBest Price Fully Automatic Stainless Steel Wire Drawing MachineDrawing drum
The drum of drawing machine adopts narrow slot water cooling, which has good cooling effect. And it is not easy to enter the dust.The drum is sprayed with tungsten carbide coating to prolong the service life.Tension device

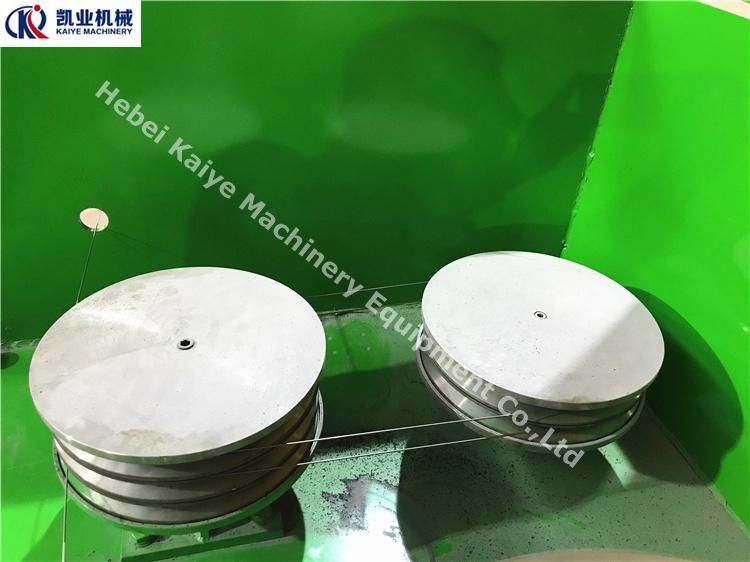

The last drum adopts tension tuning, drawing is stable, and the groove is also sprayed with tungsten carbide process. Machine can be broken line detection and automatic stop; any drum positive and negative point movement and left and right linkage.Best Price Fully Automatic Stainless Steel Wire Drawing MachineBest Price Fully Automatic Stainless Steel Wire Drawing MachineBoron coating system
The upper part of boron coating system is boron coating function, and the lower part is automatic drying function.Cleaning wire system

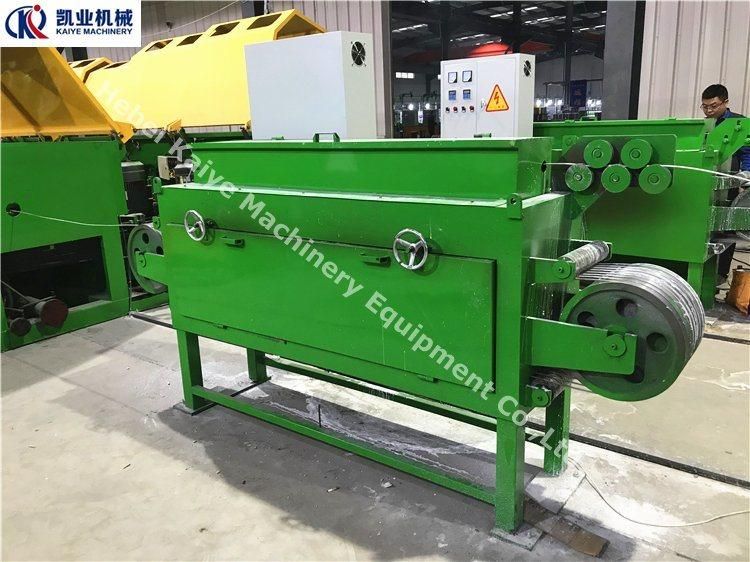

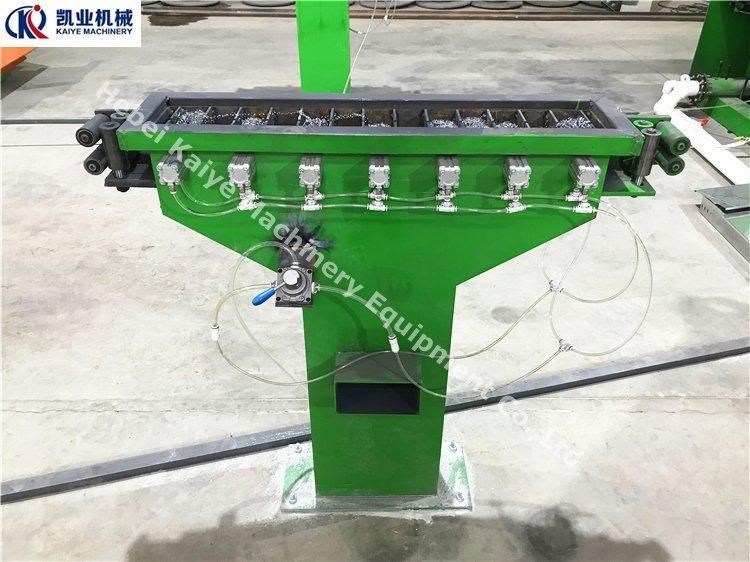

The finished wire will pass through the cleaning device after drawing, and the finished wire is clean and smooth without impurities.SALES AND SERVICE NETWORKBest Price Fully Automatic Stainless Steel Wire Drawing MachineFactory Customer

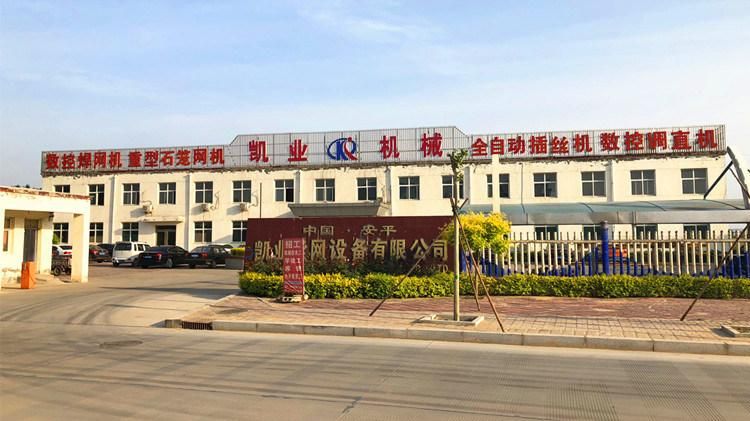

Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.COMPANY INFORMATIONBest Price Fully Automatic Stainless Steel Wire Drawing MachineBest Price Fully Automatic Stainless Steel Wire Drawing MachineFactory HistoryRELATED PRODUCTSWe can also produce wire drawing machines for drawing other raw materials: FAQ1.Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
2.Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
3.Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
4.Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
5.Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
6.Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
