DN8-50 Corrugated Annular Stainless Steel Metal Tube Pipe Making Machine
Comflex Industrial Co., Ltd.- Product Name：Mechanical Forming Metal Hose Machine
- Production Speed：2.5~3.5m,Min
- Voltage：380V,415V
- Wall Thickness：0.18-0.3mm
- Size Range：DN8-32mm
- Foming Way：Mechanical
Base Info
- Model NO.：Comflex
- Material：SUS304, 321 and 316L
- Machine Package：Polywood Box and Standard Pallet
- Lead Time：45 Days After Receiving The Deposite
- Transport Package：Seaworthy
- Specification：DN8-40
- Trademark：HLT
- Origin：Jiangsu, China
- HS Code：8501320000
- Production Capacity：500 Sets,Year
Description

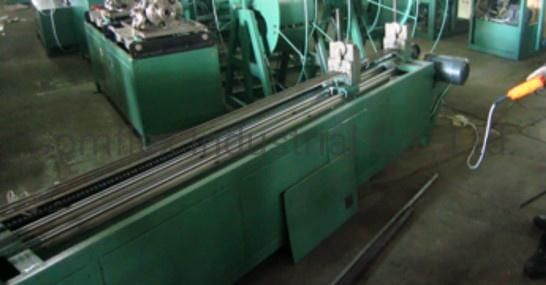

Machine Name.
Mechanical hose making machine
Technical Data
Application of the hose: natural and water hose
Size range: DN8 up to DN32
Wall thickness: 0.15-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions: 8000*1100*1700
Packing details
Polywood box and standard pallet
MOQ
1 set
Warranty
1 year
Payment terms
T/T, L/C, D/P, Western union
Gas Hose Standard Size Specification
No.
(mm)
(mm)
(mm)
(mm)
distance
(mm)
(mm)
60KW

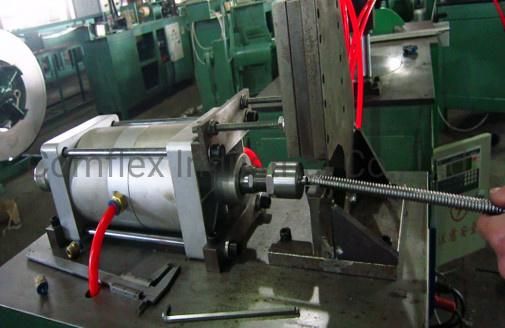

C. Convolution compressing machine
To compress the corrugation for easy welding
D.Pitch closing machine
To get more flexible hose, the metal hose will be compressed on this machine, the pitch distance will be closed which make hoses more flexible. Size range: HJ-BA100 DN25-100mm HJ-BA200 DN100-200mm

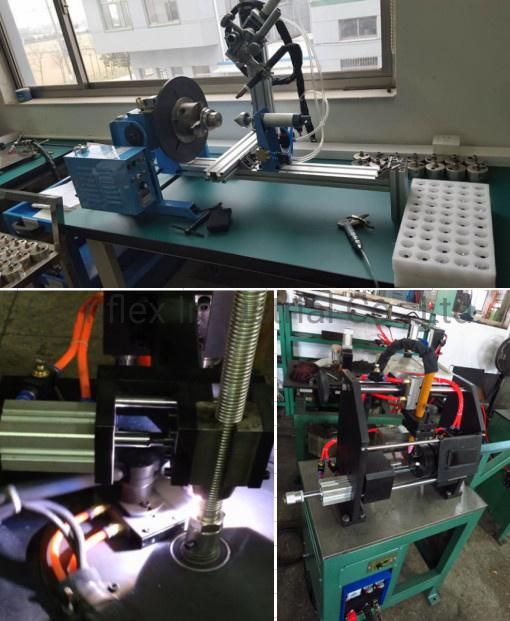

E.Hose Fitting Welding Machine
1.Vertical fitting welding machine
Size range: DN8-32mmWelding type: TIG wleding
Welding position: Circumference
Compact structure
Torch automatic rotating
2.Horizontal fitting welding machine
Size range: DN8-32mm
Welding type: TIG wleding
Compact structure
Part automatic rotating

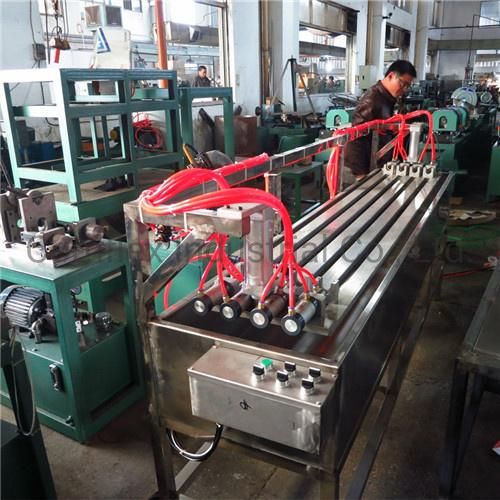

F. Testing Bench
The machine is widely used for following hose testing:
Water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing Size range: DN8-32mm Pressure: 6bar Max. length of the hose: up to 2000mm No. of hoses testing at the same time: 4-8pcs Testing medium: water

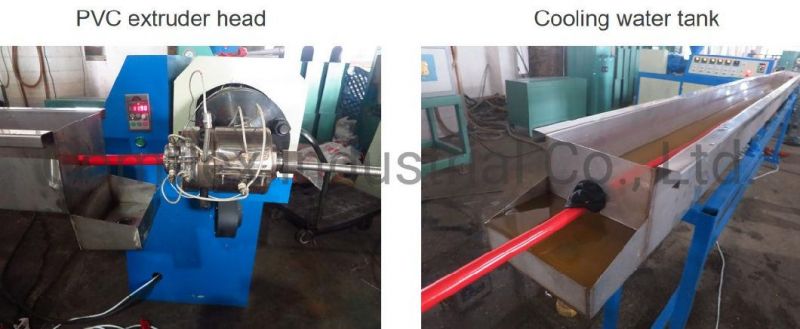

G. PVC extruder line
Hard Teeth Surface, type 173 Gearbox 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor The screw & barrel are 38CrMoAl, Nitriding treatment,depth: 0.2-0.4MM,
compression ratio:3.2,
Length : diameter: 25:1
with water cooling system Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds Size range: DN8-32mm

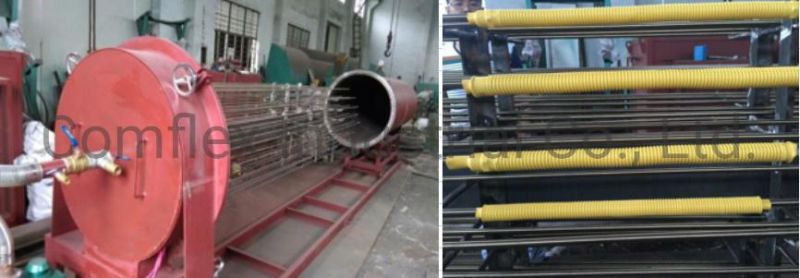

H.Vacuum PVC coating line
Rated Power: 60KW Rated voltage: 380V Rated temperature: 300 ºC Frequency: 50HZ Cylinder: ¢ 600X4 meters Cylinder moves: Manual Cylinder seal forms: with silicone rubber seal Vacuum pump: The 2X-30 rotary vane vacuum pump Max. length: 3m Heating element: 30 Pcs of stainless steel electric heating pipe

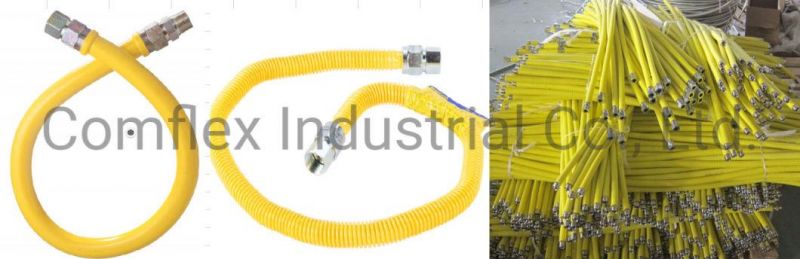

Finished Products

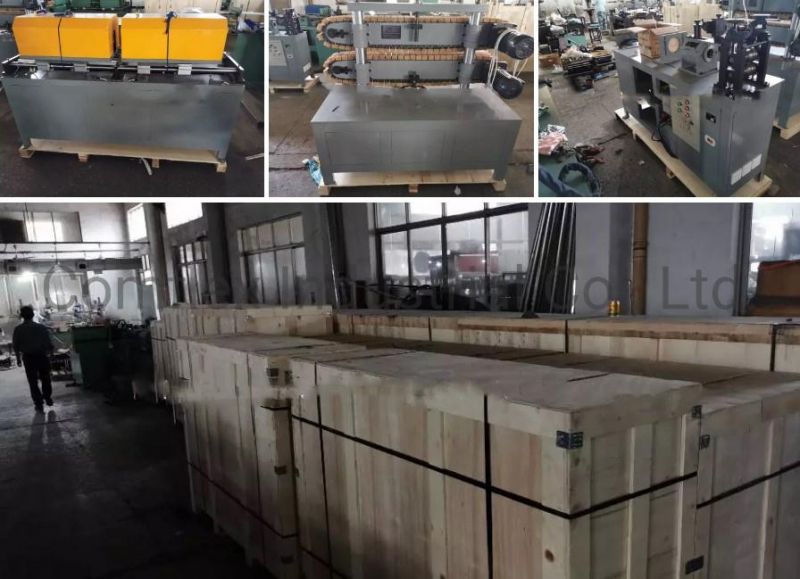

Our Machine Package
Polywood package with tray
Customer training
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know the following information to quote your the correct machinery:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc.
3.Wall thickness
