• Model NO.：Comflex
• Forming Type：Mechanical
• Forming Speed：5-10 Seconds Per Convolution
• Wall Thickness：0.3-0.8mm
• Pitch Distance：9-30mm
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS, ISO
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. Comflex Forming Type Mechanical Forming Speed 5-10 Seconds Per Convolution Wall Thickness 0.3-0.8mm Pitch Distance 9-30mm Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS, ISO Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

Fire fighting hose welding and making machine1. Product description of flexible metallic hose making machine
*Diameter: DN8-50mm
*No. of layers: single or double layers
*Type of the bellows: annular bellows
*Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
*Control: PLC control
*Length: ≤7500mm
*Forming speed:5-10seconds per convolution
2. Technical data of flexible metallic hose making machine

No.	Size (mm)	Tube OD (mm)	Wall thickness (mm)	Hose ID (mm)	Hose OD (mm)	Pitch  distance (mm)	Width of the strip (mm)
1	DN 8	10.3	0.18	8	11.3	2.7	31.8
2	DN10	12.3	0.18	10	13.5	2.9	38.1
2	DN 12	15	0.18	12.3	16.3	3.2	46.6
3	DN 16	20	0.2	16.2	21.3	4.5	62.2
4	DN 20	23.5	0.25	20	25	4.5	73.0
5	DN 25	30	0.3	25	31.5	4.5	93.3
6	DN 32	39.5	0.3	33	41	4.5	123.2
7	DN50	55.7	0.35	50	56.7	6	173.2

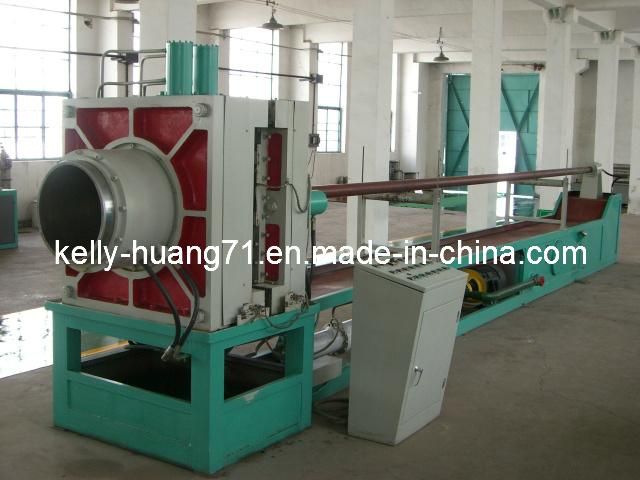

                                 DN8-50mm mechanical hose forming machine

3. Forming process

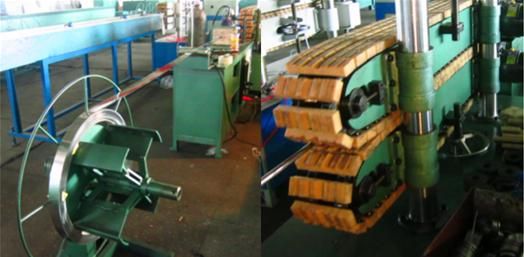

                                                 Decoiler and caterpillar

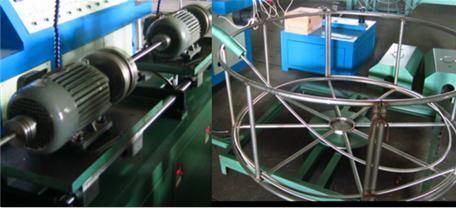

                                                   forming head and take up

4. Products show
                                                  Flexible metal hose

5. Related machines

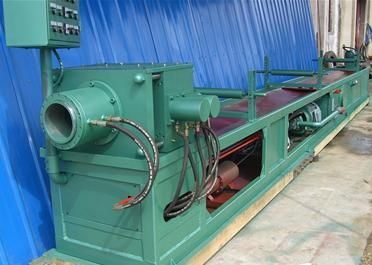

                                     DN50-300 Hydraulic forming machine

                                     DN32-125mm Hydraulic forming machine

6. FAQ for hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
