• Model NO.：GMMA-100K
• Power Source：Electric
• Certification：CE, ISO
• Bevel Angel：0-90 Degree for Top and 0-45 Degree for Bottom
• Plate Thickness：6-100mm
• Milling Head：Dia 63mm * 2 PCS
• Single Bevel Width：0-15mm
• Max Bevel Width：0-60mm Top Bevel and 0-45 mm Bottom Bevel
• Total Power：6480W
• Cutting Mode：Cold Cutting
• Transport Package：Wooden Case
• Specification：1200J*1200
• Trademark：TAOLE
• Origin：Shanghai, China
• HS Code：846090
• Production Capacity：400 Sets Per Year

Basic Info.

Model NO. GMMA-100K Power Source Electric Certification CE, ISO Bevel Angel 0-90 Degree for Top and 0-45 Degree for Bottom Plate Thickness 6-100mm Milling Head Dia 63mm * 2 PCS Single Bevel Width 0-15mm Max Bevel Width 0-60mm Top Bevel and 0-45 mm Bottom Bevel Total Power 6480W Cutting Mode Cold Cutting Transport Package Wooden Case Specification 1200J*1200 Trademark TAOLE Origin Shanghai, China HS Code 846090 Production Capacity 400 Sets Per Year

Product Description

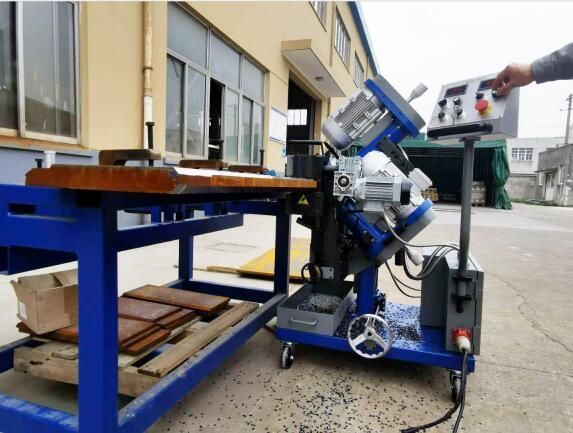

GMMA-100K Beveling Machine for mild steel and stainless steel plate

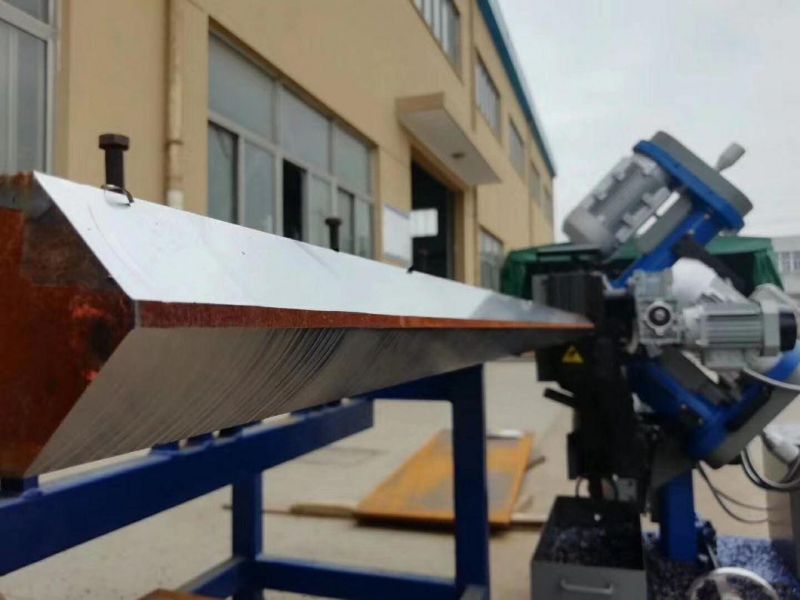

GMMA-100K Beveling Machine for mild steel and stainless steel plate mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.  GMMA-100K High Efficiency Double Sided Beveling Machine could process metal plate thickness 6-100mm. With 2 spindle and milling head. One for top bevel and one for bottom bevel to process bevel cutting simultaneously to achieve a higher efficiency.

Specifications for GMMA-100K Beveling Machine for mild steel and stainless steel plate

Models	GMMA-100K
Power Suppy	AC 380V 50HZ
Total Power	6480W
Spindle Speed	500~1050r/min
Feed Speed	0~1500mm/min
Clamp Thickness	6~100mm
Clamp Width	≥100mm
Clamp Length	≥400mm
Bevel Angel	Top 0~90 ° and Down 0~-45°
Singel Bevel width	0-20mm
Bevel Width	Top 0~60mm and Down 0~45mm
Cutter Diameter	2 * Dia 63mm
Inserts QTY	2 *6 pcs
Worktable Height	810-870m'm
Suggest Table Height	830mm
Worktable Size	800*800mm
Clamping Way	Auto Clamping
Wheel Size	4 Inch Heavy duty
Machine Height Adjust	Handwheel
Machine N.Weight	395 kgs
Machine G Weight	460 kgs
Wooden Case Size	950*1180*1430mm

Futures for GMMA-100K Beveling Machine for mild steel and stainless steel plate

1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)

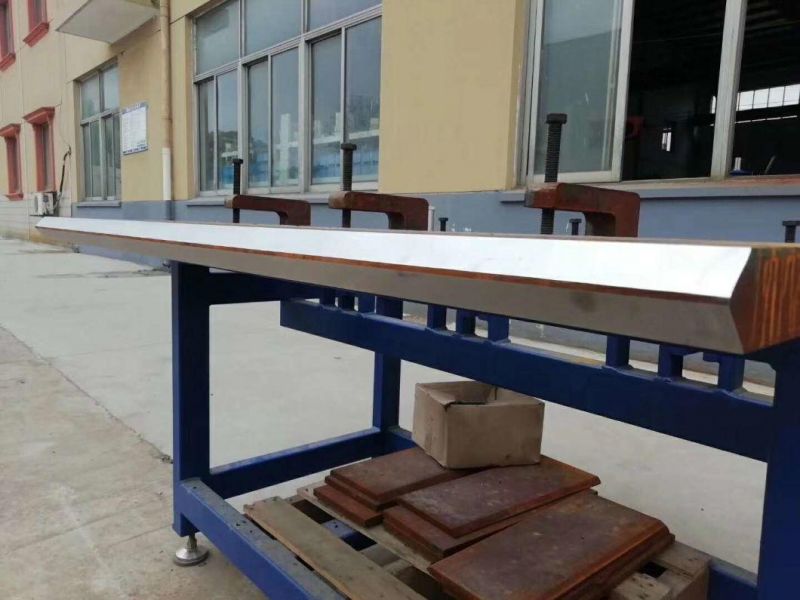

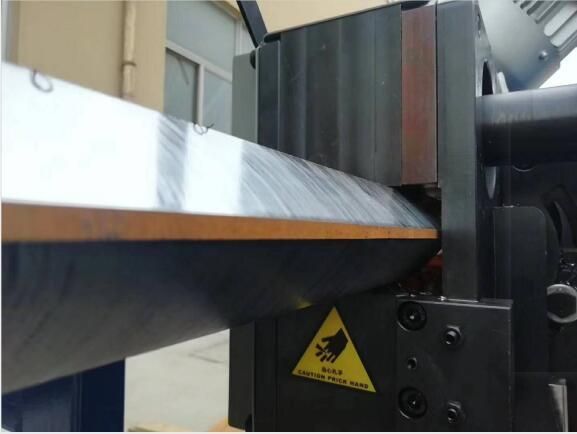

3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do        welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
9) Machine with double spindle / Head could process top bevel and buttom bevel simultaneously.



Application for Beveling Machine for mild steel and stainless steel plate

1. GMMA-100K specially for K/X bevel and high efficiency
2. Applicatd industry like steel construction, shipbuilding,pressure vessel,welding manufacturing
3. Most suitable for plate thickness less than 40mm but K/X double sided bevel joint.


RFQ

Q1: Are you factory?
A1: Yes. We are the direct manufacture for plate beveling machine with brand of "TAOLE" and export with company name of "SHANGHAI TAOLE MACHINE CO.,LTD"

Q2: How long do you need for shipment?
A2; Standard models of beveling machine are stock avaiblable which could be test and pack ready in 3-5 days.  Customized solutions normally need 30-45 days fresh made. CNC edge milling machine request 3-4 months.


Inquiry Guide for plate beveling machine

Before exact price offer. Can you pls advise below points to choose suitable models for metal sheet beveling?

1. Are you user or reseller for this beveling machine?
2. What is your plate material? ( Like Carbon steel, stainless steel or alloy steel etc)
3. What is your plate sizes? (Maximum and Minimum will be OK)
4. Do you request high precisions on the bevel surface?

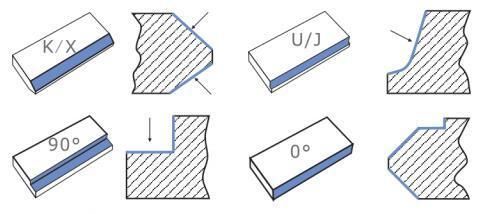

5. What kind of bevel joint do you need to process?  Mostly like V/Y, K/X, U/J,L type, 0 degree clad removal.
6. How about bevel sizes ? (Better if could share the drrawing and sizes)

Pls feel free to contact us if any interested models or questions. Thank you.
