• Model NO.：Comflex
• Material of Strip：SUS304, 321 and 316L
• Application：Gas Hose,Water,Hose ,AC Hose
• Packing Details：Plywood Box and Standard Pallet
• Transport Package：Standard Seaworthy Package Plywood Box
• Specification：SGS
• Trademark：HLT
• Origin：Jiangsu China
• HS Code：844790900
• Production Capacity：400sets,Year

No.
Size
Tube OD
(mm)
Wall thickness
(mm)
Hose ID
(mm)
Hose OD
(mm)
Pitch
 distance
(mm)
Width of the strip
(mm)
1
DN 8
10.3
0.18
8
11.3
2.7
31.8
2
DN10
12.3
0.18
10
13.5
2.9
38.1
2
DN 12
15
0.18
12.3
16.3
3.2
46.6
3
DN 16
20
0.2
16.2
21.3
4.5
62.2
4
DN 20
23.5
0.25
20
25
4.5
73.0
5
DN 25
30
0.3
25
31.5
4.5
93.3
6
DN 32
39.5
0.3
33
41
4.5
123.2

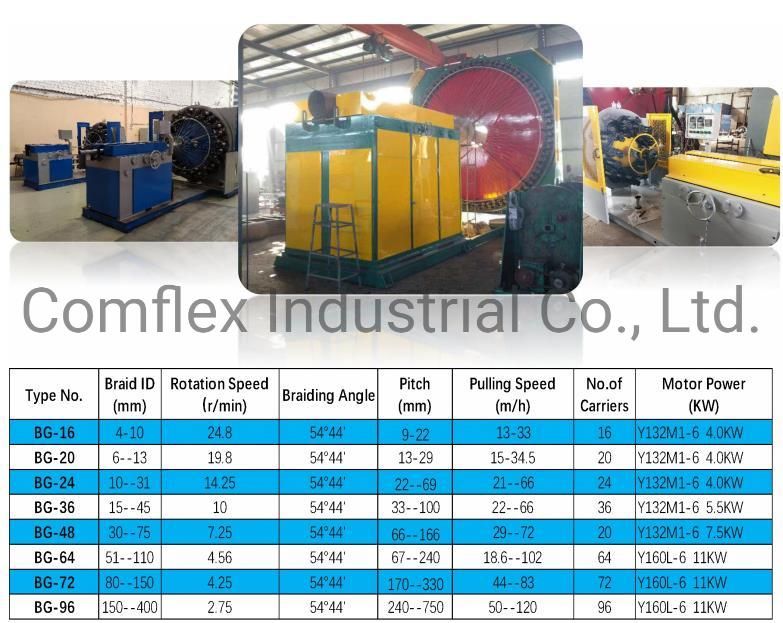

B. Stainless Steel Wire Braiding Machine The braiding machine is widely used in metal hose and rubber hose/hydraulic hose manufacturing industry. We have different kinds of braiding machine including single&double decker braiding machine, yarn braiding machine, carbon&glass fiber braiding machine and high speed braiding machine. The braiding materials can be stainless steel, carbon steel, copper wire, yarn, glass fiber… To make sure that we can provide our clients best quality in different situation. We also provide the sound proof for removing running noise as options for customer. Select us, high quality machine and general after-sales service can be guaranteed.



C. Fitting Welding Machine
1. Vertical Fitting Welding MachineSize range: DN8-32 Welding type: TIG wleding
Welding position: Circumferential seam welding Compact structure Torch automatic rotating

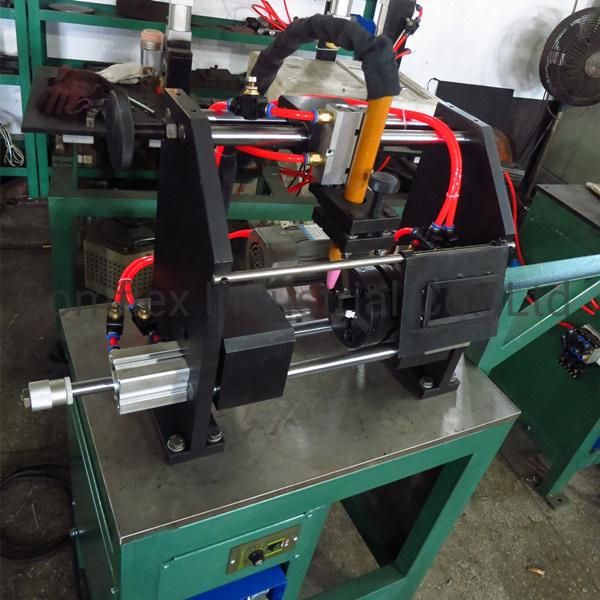

2. Horizonal Fitting Welding MachineSize range: DN8-32 Welding type: TIG wleding Compact structure Part automatic rotating

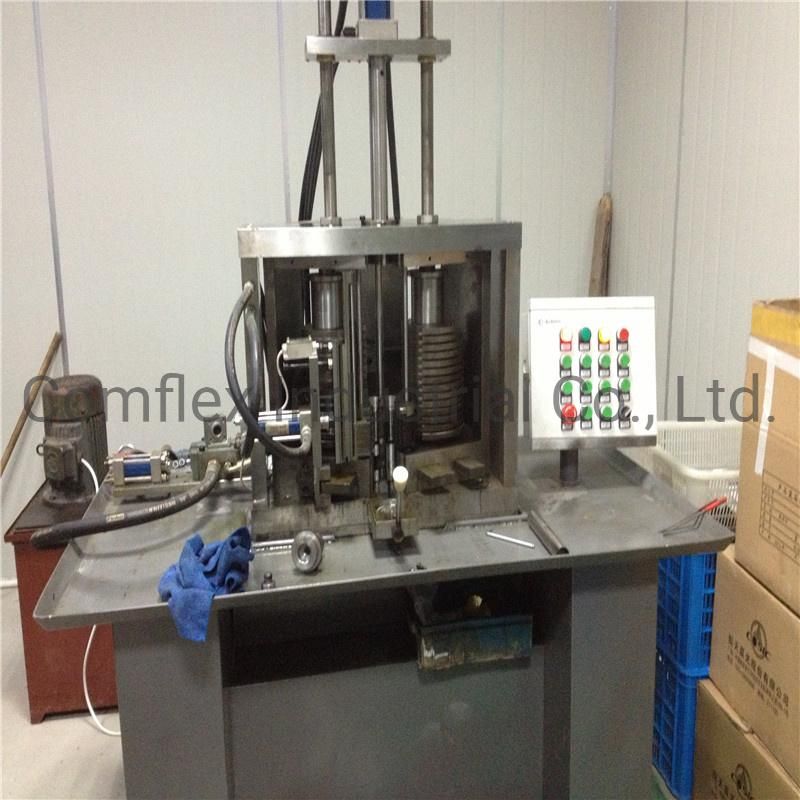

D. Pitch closing machineTo get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible. Application: vacuum hose/bellow, high flexible bellows Size range:  HJ-BA100 DN25-100mm  HJ-BA200 DN100-200mm

E. Hose compressing machine
To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible. Application: vacuum hose/bellow, high flexible bellows
Size range: HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm

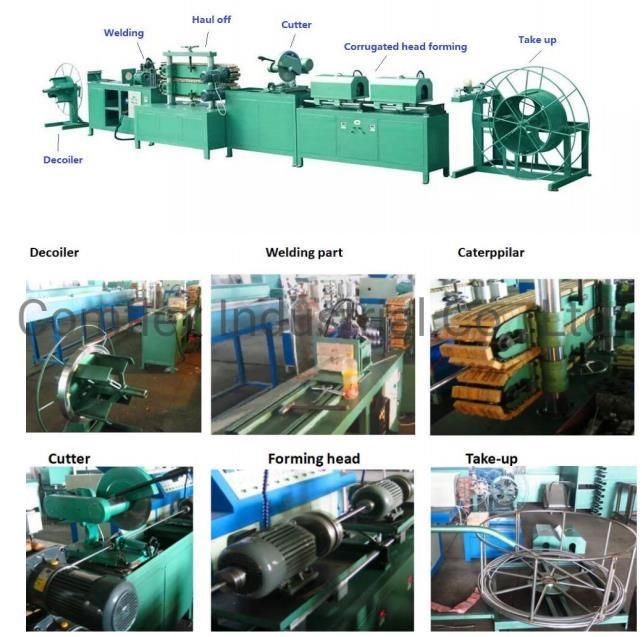

Continuously forms unlimited length of hose


F. Testing bench
The machine is widely used for following hose testing: water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range:DN8-32mm
Pressure:6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water

----Customer's visit

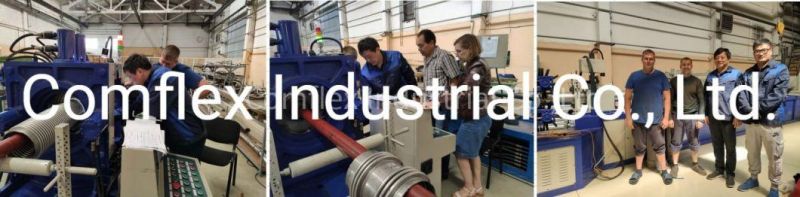

Tecnique Communication

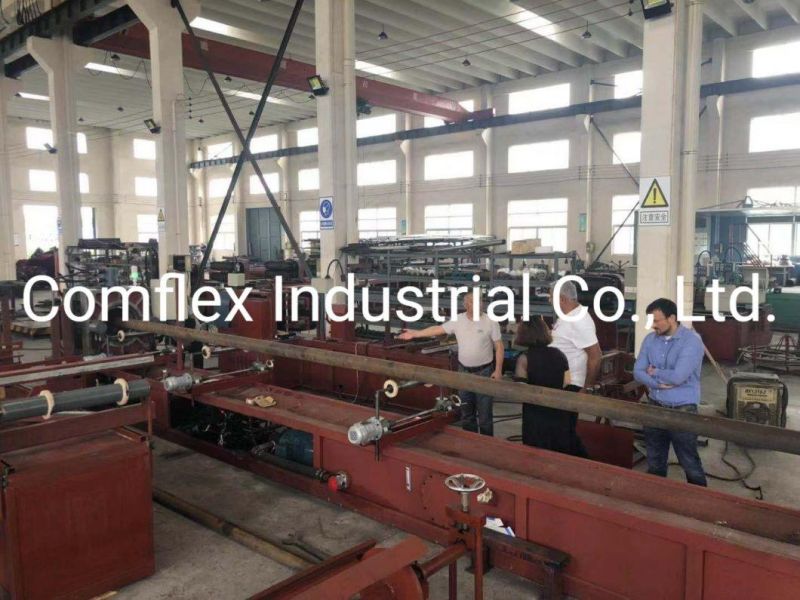

Customer visit our factory




----FAQ

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well


----We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
