• Model NO.：CutMaster4080
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Name：CNC Plate & Pipe Cutting Machine
• Application：Industrial Metal Cutting
• Cutting Way：Plasma and Flame Cutting
• Cutting Thickness：1-45mm,6-200mm
• Cutting Speed：100-12000mm,Min
• Control System：F2300
• Cutting Accuracy：±0.5mm
• Motor：Stepper Motor
• Guiding Rail System：Double Axis Linear Guideway
• Transport Package：Wooden Box Package
• Specification：2100*3400*1650mm
• Trademark：seanior
• Origin：Shandong, China (Mainland)
• Production Capacity：200 One Month

Basic Info.

Model NO. CutMaster4080 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Name CNC Plate & Pipe Cutting Machine Application Industrial Metal Cutting Cutting Way Plasma and Flame Cutting Cutting Thickness 1-45mm/6-200mm Cutting Speed 100-12000mm/Min Control System F2300 Cutting Accuracy ±0.5mm Motor Stepper Motor Guiding Rail System Double Axis Linear Guideway Transport Package Wooden Box Package Specification 2100*3400*1650mm Trademark seanior Origin Shandong, China (Mainland) Production Capacity 200 One Month

Product Description

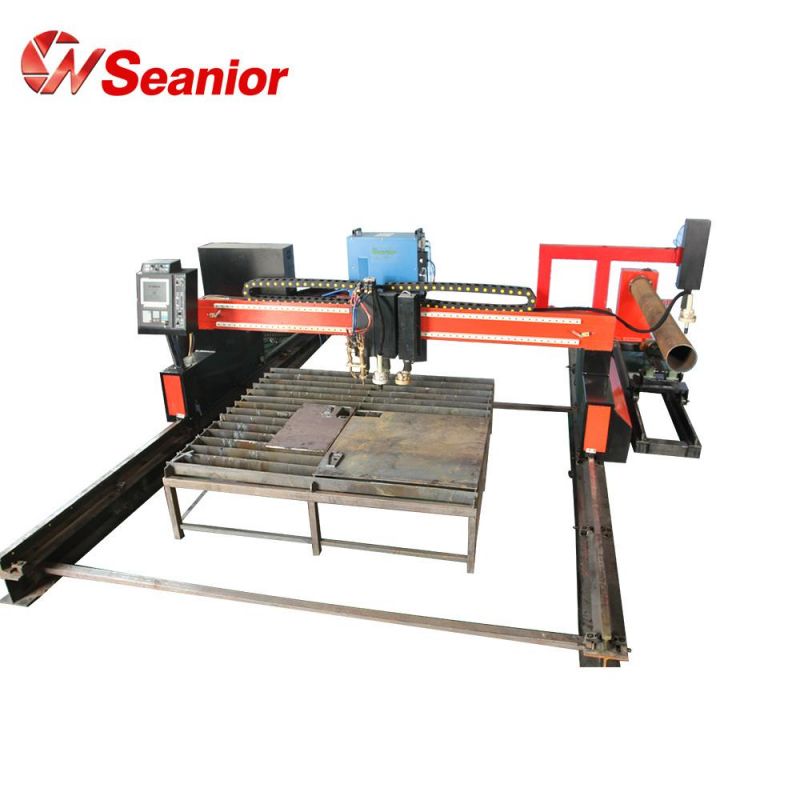

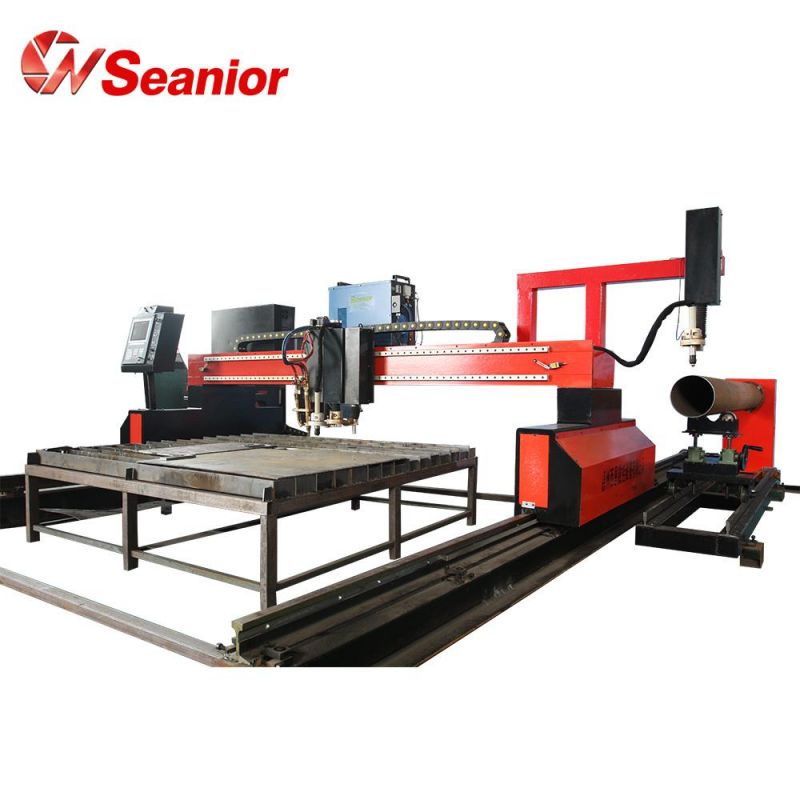

Chinese Automatic CNC Plasma and Flame Automatic Pipe Cutting Machine

(CNC Plate & Pipe Cutting Machine            CutMaster 4080)

Thank you for your interest in our CNC cutting machine and made time for me to introduce to you our best CNC Gantry plasma/flame cutting machine.Do you want to cut something great and improve your efficiency with CNC cutting machine?
Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?It is a kind of CNC cutting equipment with high efficiency and high precision,and can reduce labor intensity. It is widely used in the process of cutting metal plate in machinery manufacturing industry, and can cut steel, stainless steel, aluminum, coppper and many kinds of non-ferrous metal.

Main Features

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.
2) High compliance digital drives provide a smooth cut edge with zero maintenance.
3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.
4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.
5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.
6) Up to 800 amp plasma depending on your choice.
7) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.
Product Parameter


Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting
Plasma cutting thickness	1-45mm for plasma cutting
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	100-12000mm/min for plasma cutting50-600mm/min for flame cutting process
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

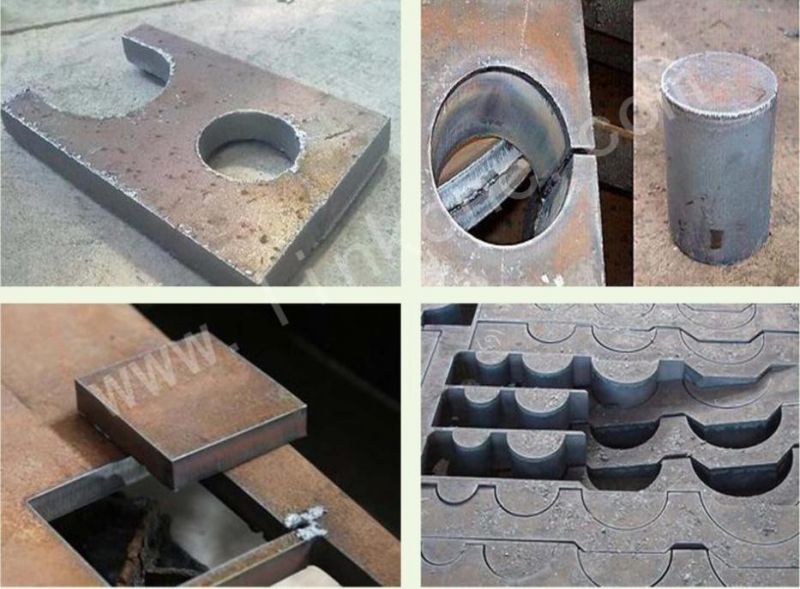

Cutting Samples

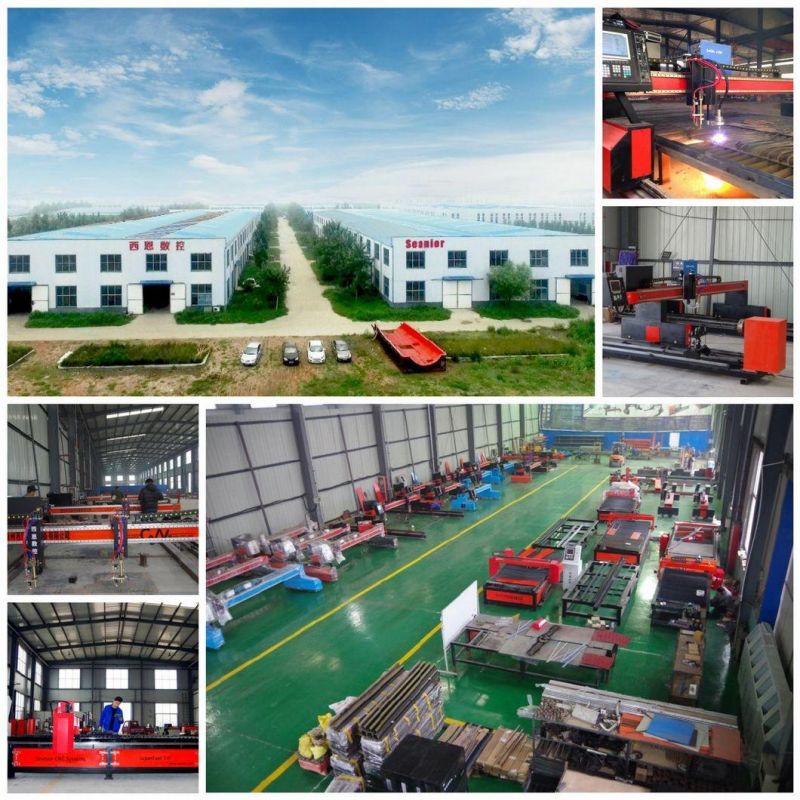

 Seanior CNC Systems

Established in 2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.
Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently .We aim to make great machines available to workshops strive for high efficiency and low cost.

Customer Photo
