• Model NO.：COLO-5219
• Condition：New
• Name：Large Gas Fired Powder Coating Oven Powder Coating
• Item：Large Powder Coating Oven
• Working Size (mm)：Width1900 * Height1900 * Depth5000
• Power Supply：Gas,LPG,Diesel
• Motor Power：7.5 Kw
• Voltage：220,380V Customized as Local
• Frequency：50-60 Hz
• Warm-up Time：15-30 Minutes
• Temperature：180-250 Degrees Celsius
• Delivery：15 Working Days
• Transport Package：Wooden Cases
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50sest,Month

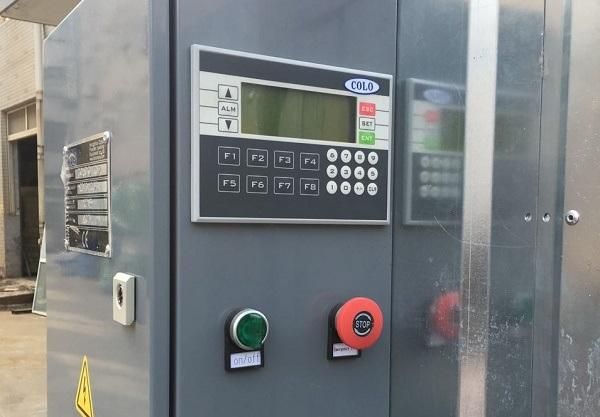

PLC Controller

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.Italy RIELLO Gas Burner

Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250ºC (normally 180ºC for heating 15-20mins). Quick heat-up rates helps to achieve higher production output.Oven Wall Materials

Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.Transporting System

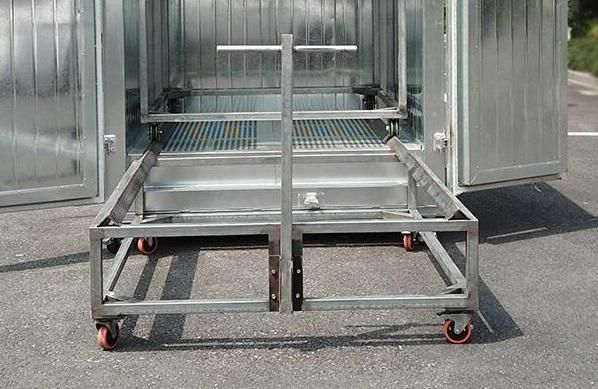

Supply with trolley and frames for easy carrying and  loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.

Specifications of Large Gas Powder Coat Oven


Model	COLO-5219
Worksize dimensions	Width1900 * Height1900 * Depth5000
Overall dimensions	Width2100 * Height2200 * Depth5200
Power supply	Gas/LPG/Diesel
Burner	Italy Riello, 200,000cal
Voltage / Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min, (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Motor power	7.5kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

Delivery and Payment

1. 25-30 work days.
2. 50%T/T in advance and remaining 50% Paid before the shippment
3. If you have the shipping agent just tell us, if not we can arrange for you.
4. Warranty:12 months


Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment

2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.

3.Customed as you want.

4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.

5.One year of warranty period and life long technical support.

6.Market share in Global: about 90%, is a leading factory in this filed.


More details weclome to contact us !
