48 Carriers Wire Braiding Machine for Metal Hose
Comflex Industrial Co., Ltd.- Name：48 Carriers Wire Braiding Machine for Metal Hose
- Wire Diameter：:0.3mm To1.0mm
- Gbg24- Gbg128：Braiding ID4 Till 400mm
- ID of The Braids：4mm to 600mm
- No.of Spindles：16 to 128 Spindle Braiding Machine
- Material of Wires：:Stainless Steel,Galvanized Carbo
Base Info
- Model NO.：GBG48
- Application：for Metal Hose,Rubber Hose
- Transport Package：Standard Seaworthy Package
- Specification：GBG16 till GBG128 carrier
- Trademark：HLT
- Origin：Jiangsu, China
- HS Code：844790900
- Production Capacity：500 Sets,Year
Description
| single decker Wire Braiding Machine | |||||||
| Type No. | Braid ID (mm) | rotation speed of spindle r/min | braiding angle | Pitch(mm) | pulling speed (m/h) | no.of carriers | Motor power(KW) |
| BG-16 | 4-10 | 24.8 | 54°44' | 9-22 | 13-33 | 16 | Y132M1-6 4.0KW |
| BG-20 | 6--13 | 19.8 | 54°44' | 13-29 | 15-34.5 | 20 | Y132M1-6 4.0KW |
| BG-24 | 10--31 | 14.25 | 54°44' | 22--69 | 21--66 | 24 | Y132M1-6 4.0KW |
| BG-36 | 15--45 | 10 | 54°44' | 33--100 | 22--66 | 36 | Y132M1-6 5.5KW |
| BG-48 | 30--75 | 7.25 | 54°44' | 66--166 | 29--72 | 48 | Y132M1-6 7.5KW |
| BG-64 | 51--110 | 4.56 | 54°44' | 67--240 | 18.6--102 | 64 | Y160L-6 11KW |
| BG-72 | 80--150 | 4.25 | 54°44' | 170--330 | 44--83 | 72 | Y160L-6 11KW |
| BG-96 | 150--400 | 2.75 | 54°44' | 240--750 | 50--120 | 96 | Y160L-6 11KW |
Double decker wire braiding machine
(mm)
r/min
(m/h)

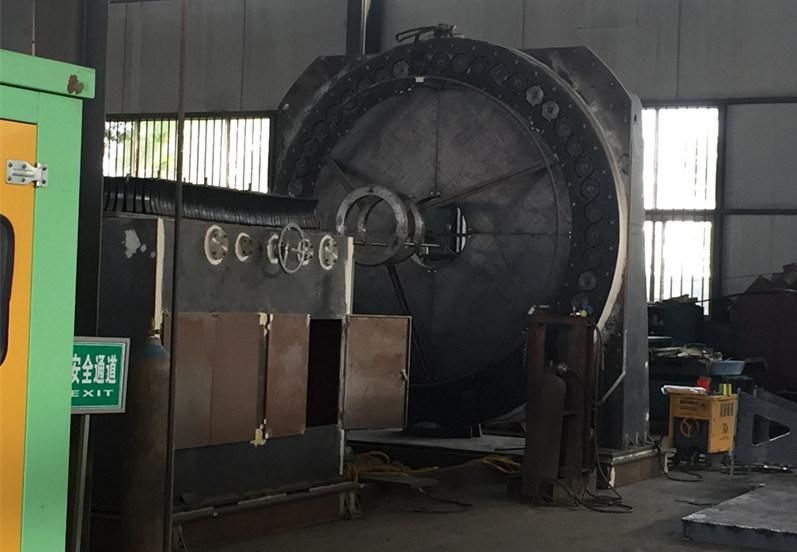

double decker wire braiding machine

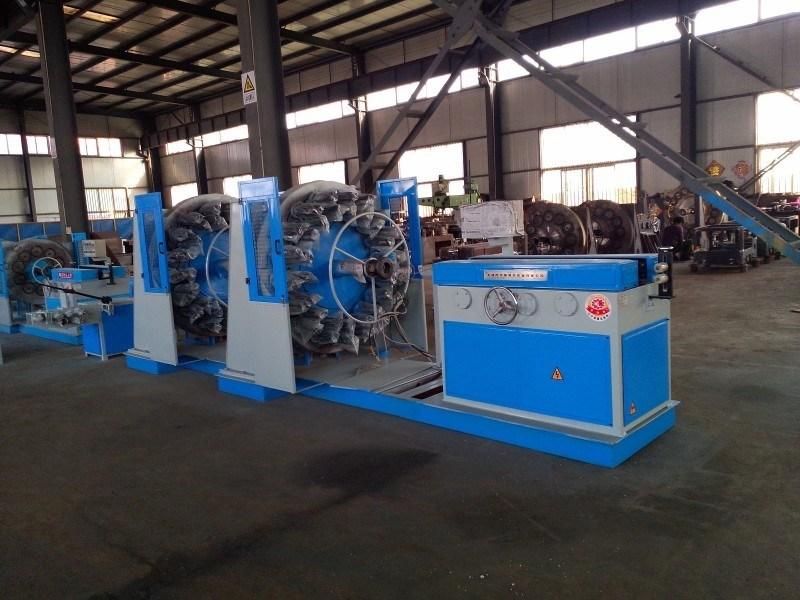

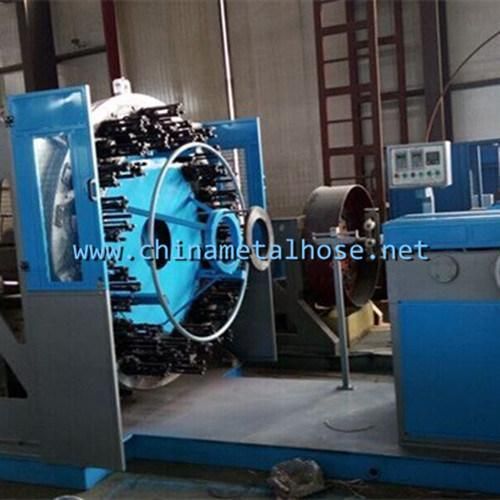

single decker 48 carriers wire braiding machine
Factory show

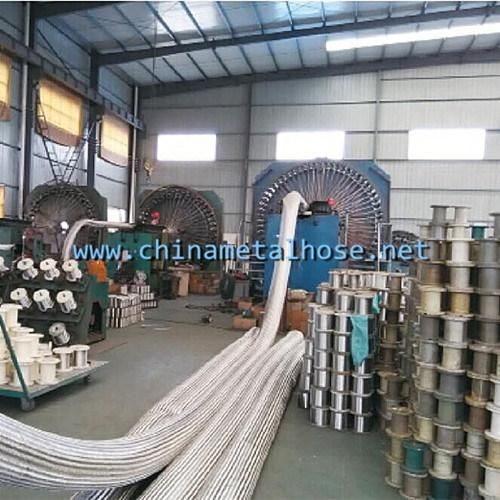

Manufacturing site
Our customer
Company information
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas
FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
