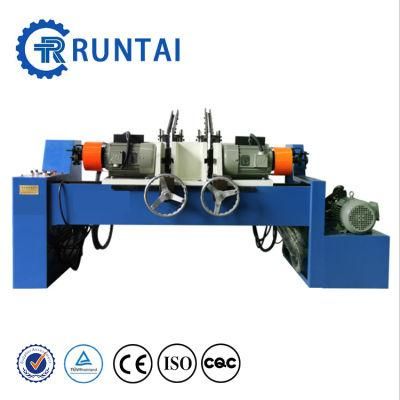

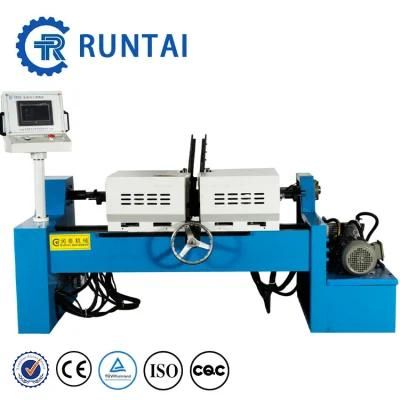

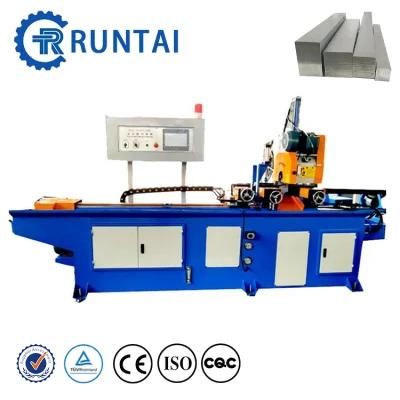

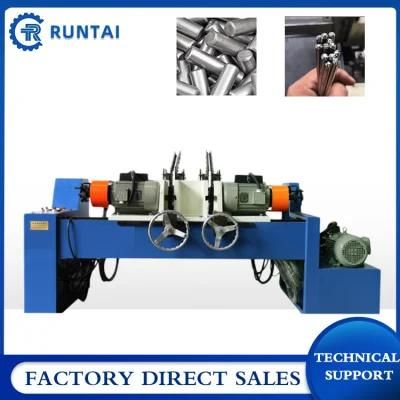

Plastic Stainless Steel Orbital Tube Cutting Machine
Zhangjiagang Runtai Machinery Co., Ltd.- Customized：Customized
- Layout：Coaxial
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Hydraulic Pressure
- Cutting Mode：Saw Cutting
Base Info
- Model NO.：RT425CNC
- Warranty：1 Year
- Transport Package：Wooden Box
- Specification：CE ISO
- Trademark：RUNTAI
- Origin：Zhangjiagang Jiangsu China(Mainland)
- Production Capacity：5000PCS,Year
Description
The largest pipe cutting ability Φ70 mm (several small tubes can be cut at one time) Maximum once feeding material length 700mm (can be customized) Clamping mode hydraulic oil cylinder (upper and lower clamping) Machine head cutting mode hydraulic cylinder Feeding material mode servo motor Tail material mode servo motor Power of feeding servo motor 1KW Power of tail material servo motor 400W Saw blade drive motor 3.3/4.0KW/380V/50HZ (customizable) Saw blade revolving speed 35/70RPM 60/120RPM Cooling pump motor 90W Oil pressure system 2.2KW motor Working pressure 70KG Machine volume 2580 * 1050 * 1850 mm Machine weight 1600KG
