Hydraulic Hose Steel Wire Braiding Machine
Comflex Industrial Co., Ltd.- Product Name：Wire Braiding Machine
- Braiding Diameter (mm)：51-110mm
- Carrier Rotation Speed (R/Min)：4.56r,Min
- Braiding Angle：54, 44"
- Braiding Pitch：67-240mm
- Pulling Speed M/H：18.6-102
Base Info
- Model NO.：GBG-64
- Model：Gbg-64
- No Carrier：64
- Motor Power：7.5kw
- Transport Package：Standard Seaworthy Packing
- Specification：ISO9001
- Trademark：HLT
- Origin：China Jiangsu Wuxi
- HS Code：84485900
- Production Capacity：500PC,Years
Description
| Double decker wire braiding machine | |||||||
| Type No. | Braid ID (mm) | rotation speed of spindle r/min | braiding angle | Pitch(mm) | pulling speed (m/h) | no.of carriers | Motor power(KW) |
| BG-2S16 | 4-10 | 24.8 | 54°44' | 9-22 | 13-33 | 32 | Y132M1-6 5.5KW |
| BG-2S20 | 6--13 | 19.8 | 54°44' | 13-29 | 15-34.5 | 40 | Y132M1-6 5.5KW |
| BG-2S24 | 10--31 | 14.25 | 54°44' | 22--69 | 21--66 | 48 | Y132M1-6 5.5KW |
| BG-2S36 | 15--45 | 10 | 54°44' | 33--100 | 22--66 | 72 | Y132M1-6 6.0KW |
| BG-2S48 | 30--75 | 7.25 | 54°44' | 66--166 | 29--72 | 96 | Y132M1-6 9.5KW |

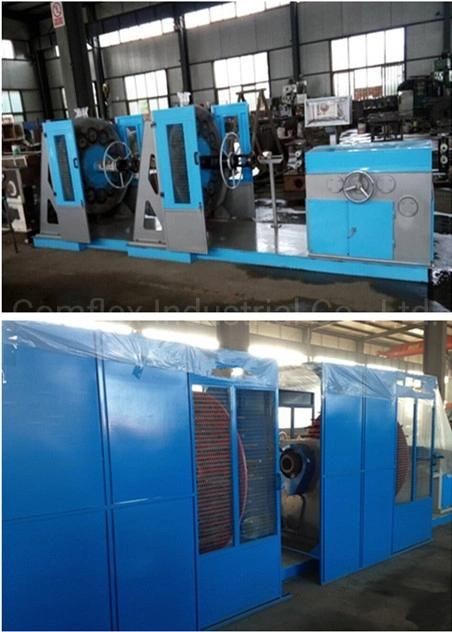

Double decker wire braiding machine

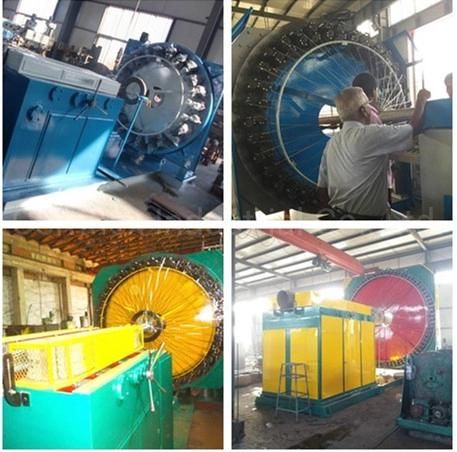

Single decker wire braiding machine

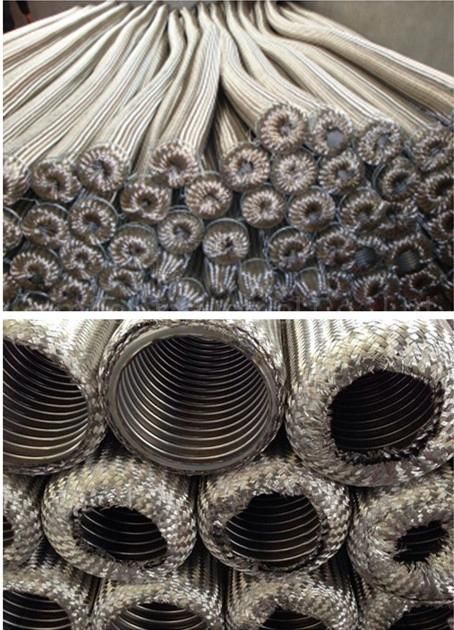

Picture of Wire Braided hose

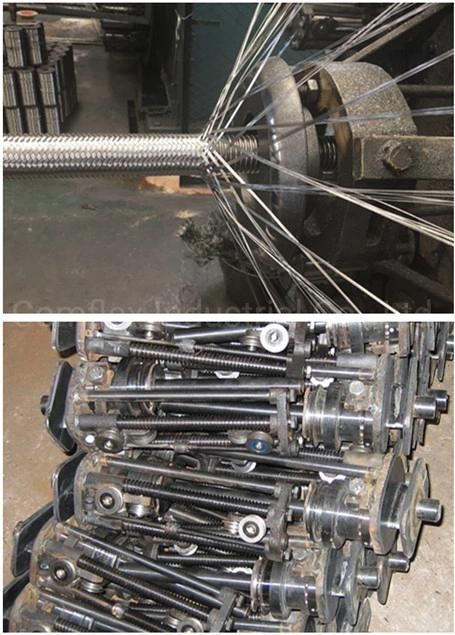

Wire braids

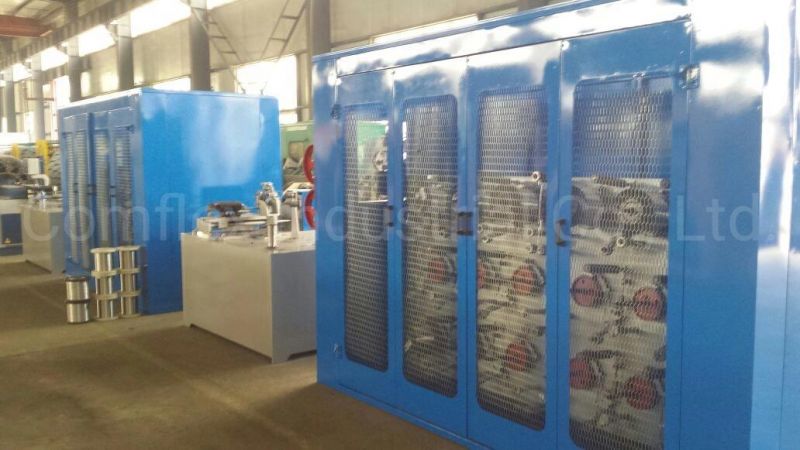

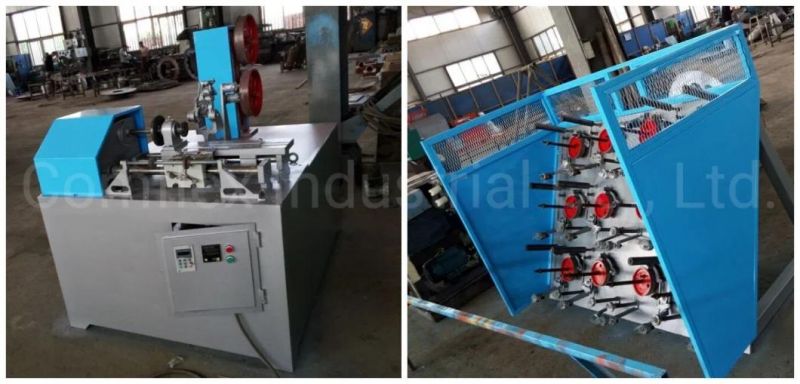

Related machine-Rewinding machine

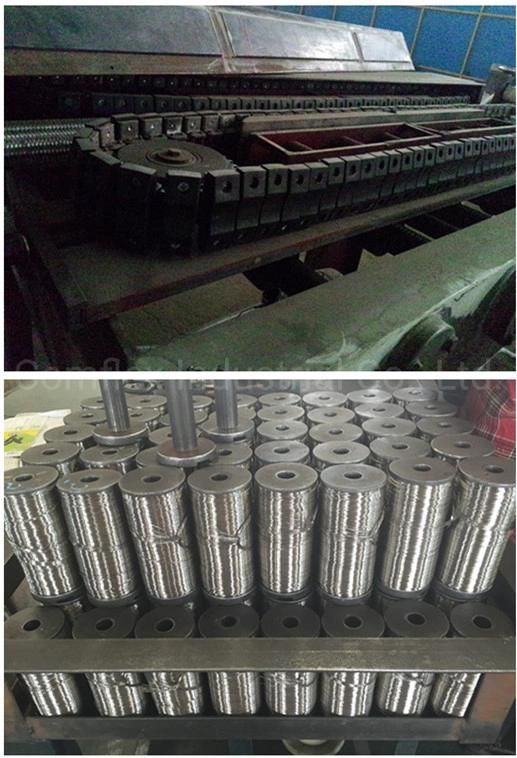

Parts of machine
Certification
Package & Delivery
Company information
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas
FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
