Monthly Deals Big Throat Pneumatic Hydraulic Clinching Machine

Suzhou Simitch Machinery Co., Ltd.
  • Automatic Grade：Semi-Automatic
  • Power Supply：Pneumatic Hydraulic
  • Warranty：1 Year
  • Certification：CE, ISO
  • Model：Cec08-01
  • Throat Depth：500mm

Base Info

  • Model NO.：CEC08-01
  • Power Stroke：12mm
  • Weight：500kg
  • Throat Height：425mm
  • Max.Clinching Thickness：2mm+2mm
  • Application：HVAC, Sheet Metal Industry, Automobile
  • Transport Package：Exporting Plywood Box
  • Specification：970mm*650mm*2105mm
  • Trademark：SIMITCH Brand
  • Origin：Jiangsu, China
  • HS Code：8463900090
  • Production Capacity：600sets,Per Year

Description

Basic Info.

Model NO. CEC08-01 Power Stroke 12mm Weight 500kg Throat Height 425mm Max.Clinching Thickness 2mm+2mm Application HVAC, Sheet Metal Industry, Automobile Transport Package Exporting Plywood Box Specification 970mm*650mm*2105mm Trademark SIMITCH Brand Origin Jiangsu, China HS Code 8463900090 Production Capacity 600sets/Per Year

Product Description

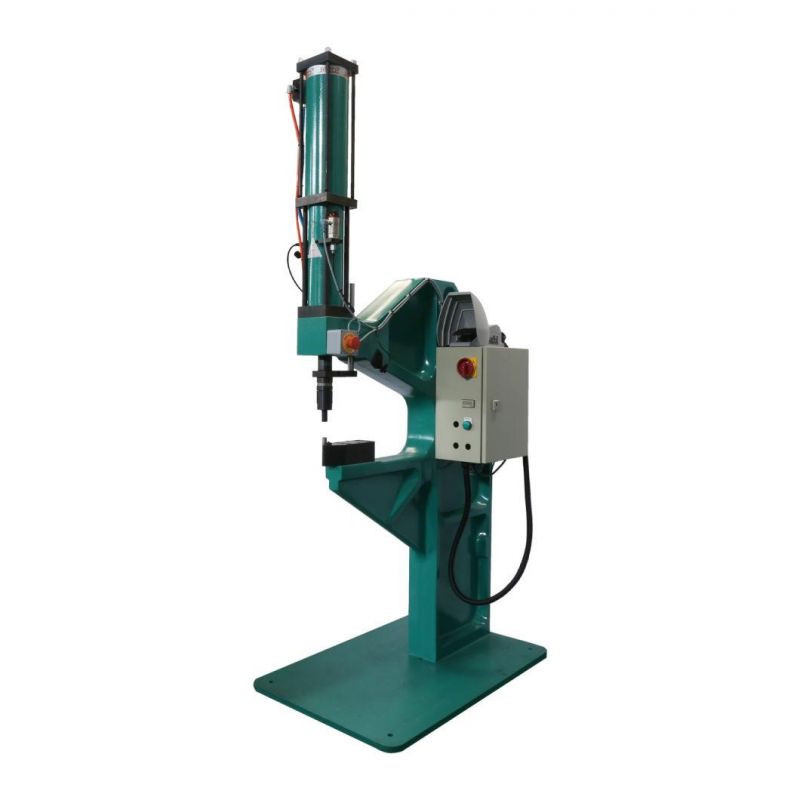

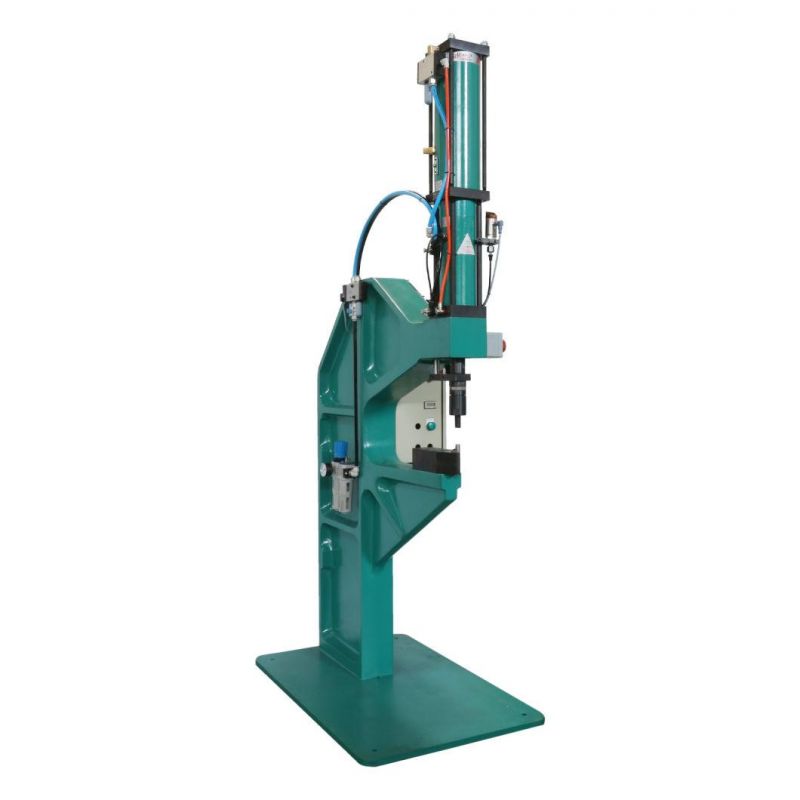

Big throat pneumatic hydraulic clinching machine

Monthly Deals Big Throat Pneumatic Hydraulic Clinching Machine
Monthly Deals Big Throat Pneumatic Hydraulic Clinching Machine

Technical parameter:
Impact pressure:8.0T
Power source: Hydropneumatic
Voltage: 220V,50Hz
Total travel: 100mm
Compressed air source need:3bar-8 bar
Weight: 500KG
Max. thickness of clinching:2mm+2mm

Characteristics:
1. Joint point are firm and credibility
2. Rivetless, low cost.
3. Match the pre-pressure device,overcoming distort badly.
4. Riveting time, pressure, speed  are all can be adjusted.
5. National patent technology, number shows can accuracy to 0.1 second
6. Press gently , the molding tool loss is small
7. Can transform into round or square
8. The riveting area has no stress
9. Can not break the plating or painting in surface
10. To the metals material request not high, the copper ,aluminums, steel, zinc are all unlimited
11. Riveting process has no vibration, low noise, low consumption
12. Unnecessary to processing in before or after riveting joint, allow to have the mezzanine and multi-layer conjunction
13. Advanced counter and time shows window
14. The electricity control system's operating are convenience and safety
15. Can riveting different shapes after replaced the different die


Why choose Simitch:
-1. 14 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 7-15 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
