Monthly Deals 358 Anti-Climb Security Welded Wire Mesh Machine
Hebei Jiake Welding Equipment Co., Ltd.- After-sales Service:2 Years
- Type:Welded Wire Mesh Machine
- Voltage:as Your Requirement
- Style:Automatic
- Warranty:2 Years
- Wire Diameter:3-6mm
Base Info
- Model NO.:DP-FP-3200A+
- Line Wire Space:50-300mm
- Cross Wire Space:Min. 12.5mm
- Mesh Width:Max. 3200mm
- Mesh Length:Max. 4m
- Welding Electrodes:41PCS
- Welding Speed:Max. 120times,Min
- Certificate:CE
- Cooling System:Water Cooling System
- Delivery Time:30 Days After Receive Your Advanced Payment
- Support After-Sales Countries or Regions:Africa, India, South America, Mexico
- Transport Package:Plastic Package and Fixed with Steel Wire
- Trademark:JIAKE
- Origin:Hebei, China (Mainland)
- HS Code:8515809090
- Production Capacity:15 Sets Per Month
Description
Basic Info.
Model NO. DP-FP-3200A+ Line Wire Space 50-300mm Cross Wire Space Min. 12.5mm Mesh Width Max. 3200mm Mesh Length Max. 4m Welding Electrodes 41PCS Welding Speed Max. 120times/Min Certificate CE Cooling System Water Cooling System Delivery Time 30 Days After Receive Your Advanced Payment Support After-Sales Countries or Regions Africa, India, South America, Mexico Transport Package Plastic Package and Fixed with Steel Wire Trademark JIAKE Origin Hebei, China (Mainland) HS Code 8515809090 Production Capacity 15 Sets Per MonthProduct Description
358 Anti-Climb Security Welded Wire Mesh MachineThis machine is also called the 358 fence mesh machine and anti-climb fence mesh welding machine.
This machine is popular with its small opening (76.2*12.7mm), which can't go through the finger
even the foot. So the finished mesh has a good effect on doing the security fence.
Machine advantage
1. Panasonic/Schneider electric components+touch screen;

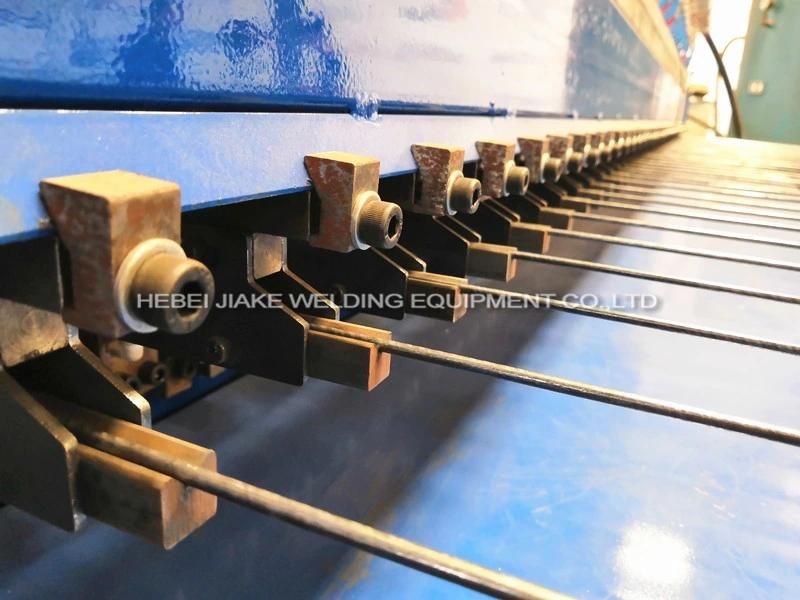

2. "V" type slot tunnel, suitable for different wire diameter, no need adjustment.
3. 600mm2 upper copper wires, much more than before, much easier for electric conduction.
4. The cross wires should be put into the hopper manually, then fall automatically.
It is equipped with SMC (Japan) air cylinder.

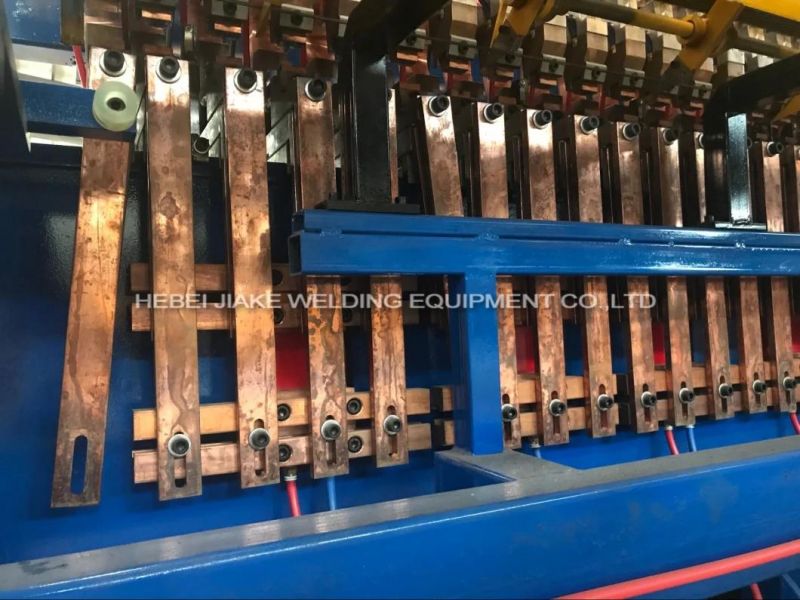

5. Pneumatic welding. The welding electrodes are controlled by SMC (Japan) air cylinders.
30*30*30mm, water cooling electrode base.

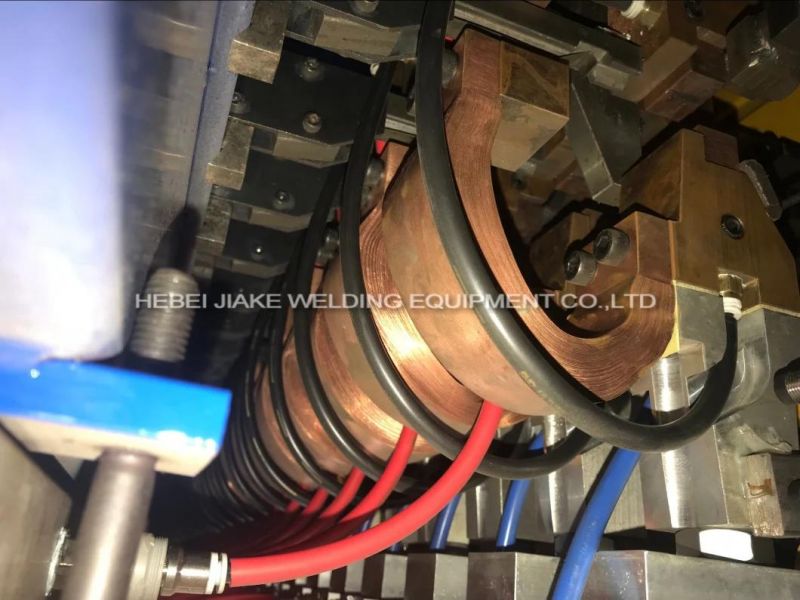

6. Cast water-cooling transformers, One transformer control 4 welding electrodes.
The welding degree is adjusted by PLC.




Technical Parameters
Model | DP-FP-3200A+ |
Wire diameter | 2.5-6mm |
Line wire space | 76.2-300mm |
Cross wire space | Min.12.7mm |
Width of mesh | Max.3.2m |
Length of mesh | Max.6m |
Welding electrodes | 42pcs |
Welding transformer | 150kva*11pcs |
Welding speed | 40-60 times/min |
Line wire feeding | Pre-straightened&pre-cut |
Cross wire feeding | Pre-straightened&pre-cut |
Power supply | Min.160kva |
Weight | 5.5T |
Machine size | 12*3.7*2.3m |

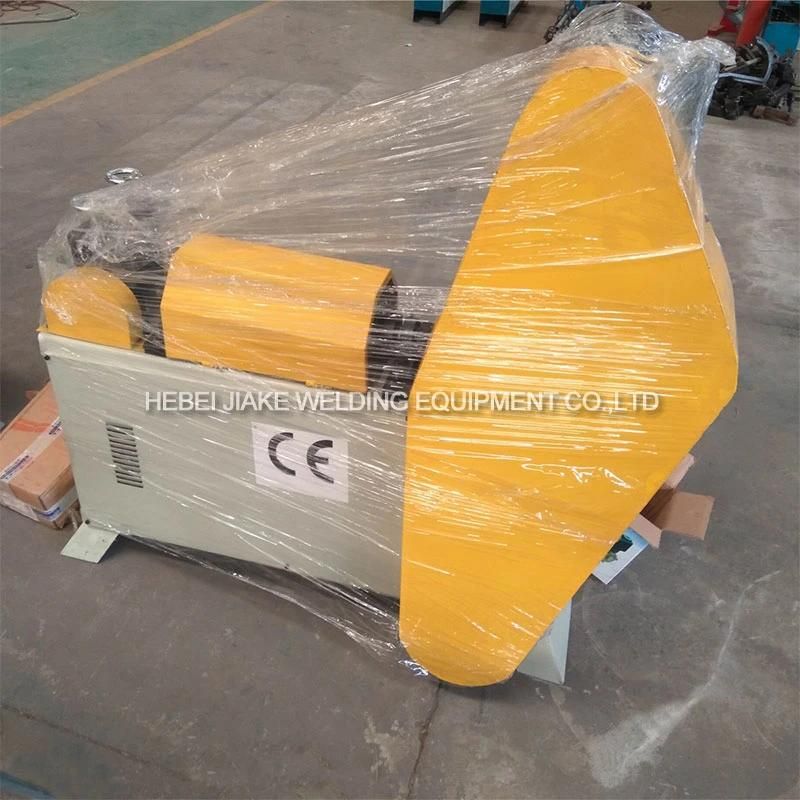

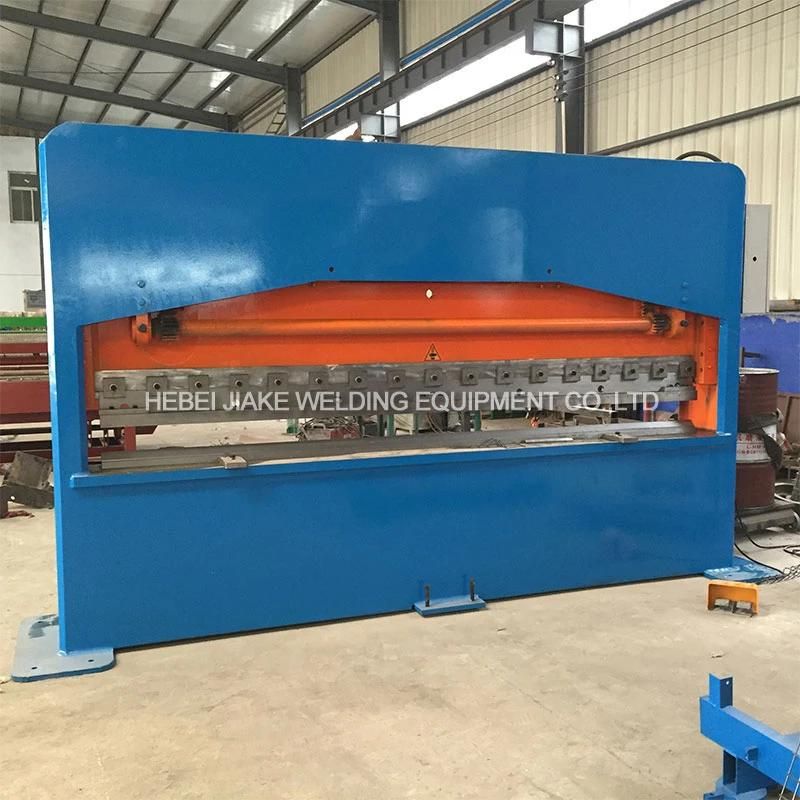

Wire straightening and cutting machine, 2 sets Fence mesh bending machine, 1 set

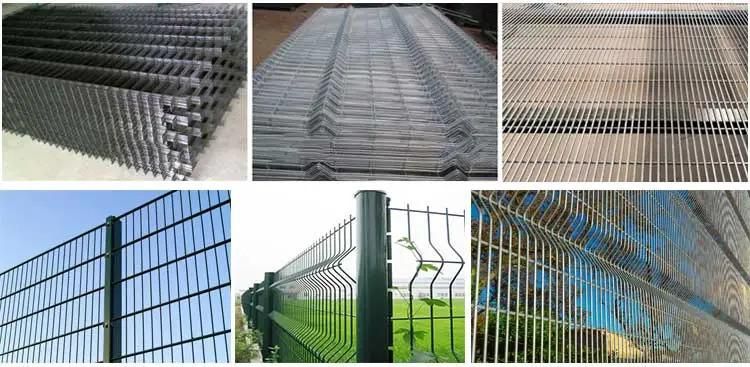

Finished Mesh
