Diesel Fired Powder Coating Large Oven
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Months
- Type：Powder Coating Oven
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO, RoHS
Base Info
- Model NO.：COLO-5219
- Condition：New
- Item：Diesel Fired Powder Coating Large Oven
- Working Size (mm)：Width1900 * Height1900 * Depth5000
- Power Supply：Gas,LPG,Diesel
- Motor Power：7.5 Kw
- Voltage：220,380V Customized as Local
- Frequency：50-60 Hz
- Warm-up Time：15-30 Minutes
- Temperature：180-250 Degrees Celsius
- Delivery：15 Working Days
- Transport Package：Wooden Cases
- Specification：CE
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：50sest,Month
Description

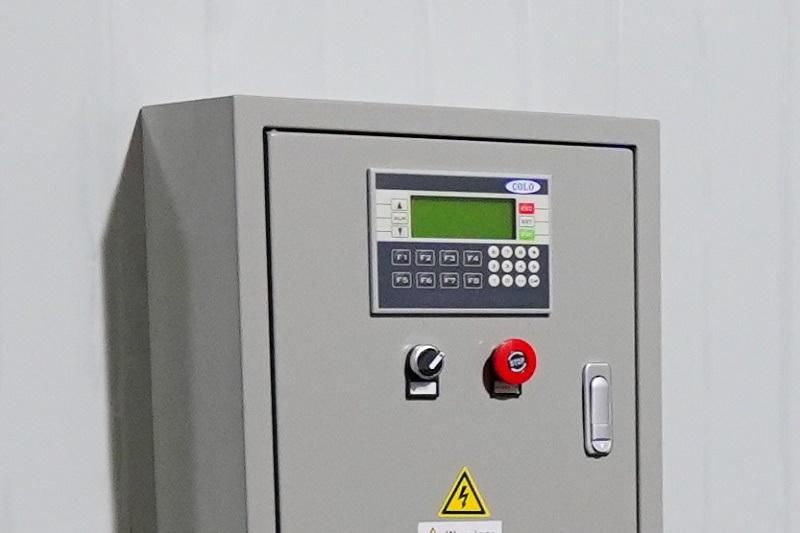

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.

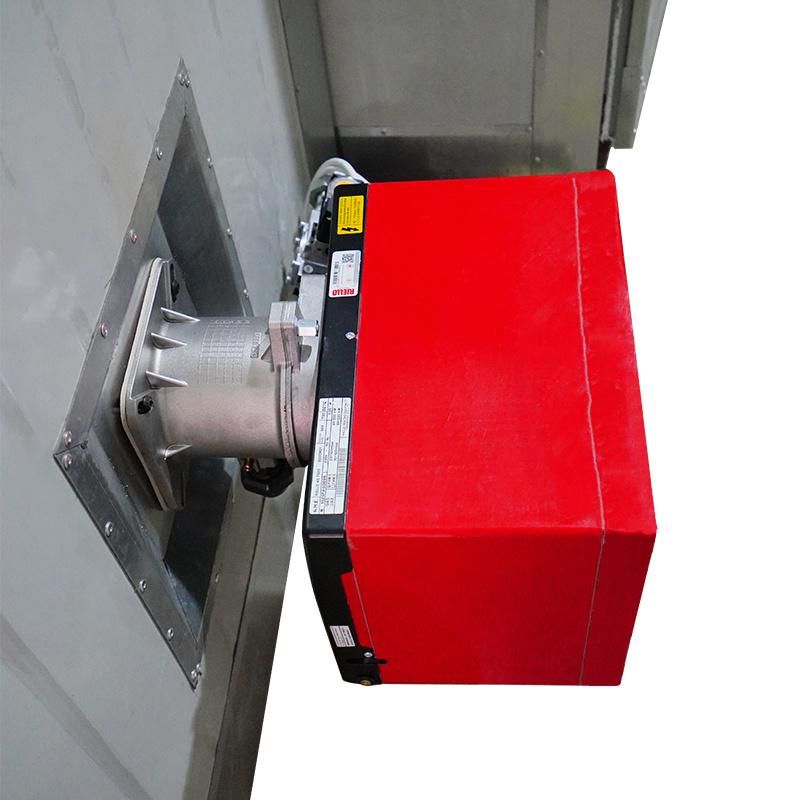

Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250ºC (normally 180ºC for heating 15-20mins). Quick heat-up rates helps to achieve higher production output.
Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.

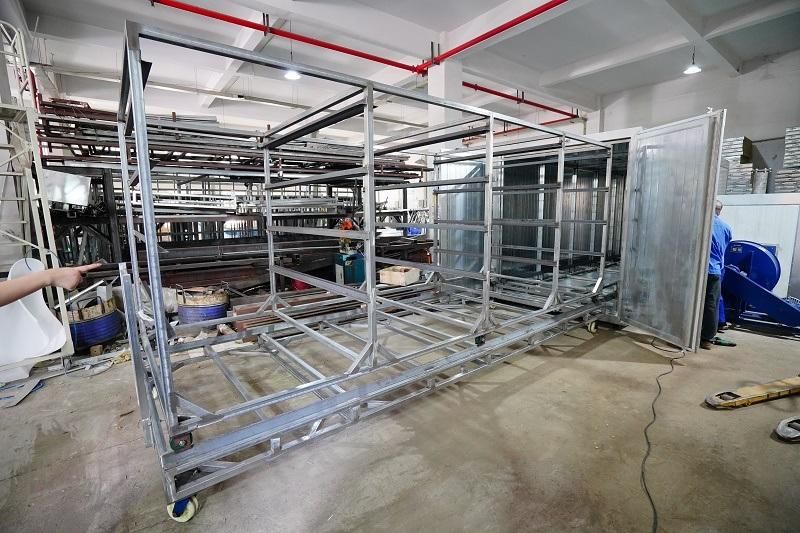

Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.
Specifications of Diesel Fired Powder Coating Large Oven
| Model | COLO-5219 |
| Worksize dimensions | Width1900 * Height1900 * Depth5000 |
| Overall dimensions | Width2100 * Height2200 * Depth5200 |
| Power supply | Gas/LPG/Diesel |
| Burner | Italy Riello, 200,000cal |
| Voltage / Frequency | 380V/220v(50-60hz) |
| Warm-up time | 15-30 min, (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Motor power | 7.5kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
Application of Powder Coating Oven
Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment
2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.
3.Customed as you want.
4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.
5.One year of warranty period and life long technical support.
6.Market share in Global: about 90%, is a leading factory in this filed.
More details weclome to contact us !
