Colo Electric Powder Coating Curing Furnace
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Months
- Type：Powder Coating Oven
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO, RoHS
Base Info
- Model NO.：COLO-1864
- Condition：New
- Application：Powder Coating
- Work Size：1.8m*1.6m*1.4m(L*W*H)
- Power Supply：Electric, 12kw
- Warm-up Time：15-30 Mins.
- Temperature：180-250 Degrees
- Item：Colo Electric Powder Coating Curing Furnace
- Name：Colo Electric Powder Coating Curing Furnace
- Delivery：10-15 Working Days
- Product：Colo Electric Powder Coating Curing Furnace
- Transport Package：Wooden Case
- Specification：CE
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：50sest,Month
Description
Basic Info.
Model NO. COLO-1864 Condition New Application Powder Coating Work Size 1.8m*1.6m*1.4m(L*W*H) Power Supply Electric/ 12kw Warm-up Time 15-30 Mins. Temperature 180-250 Degrees Item Colo Electric Powder Coating Curing Furnace Name Colo Electric Powder Coating Curing Furnace Delivery 10-15 Working Days Product Colo Electric Powder Coating Curing Furnace Transport Package Wooden Case Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 50sest/MonthProduct Description

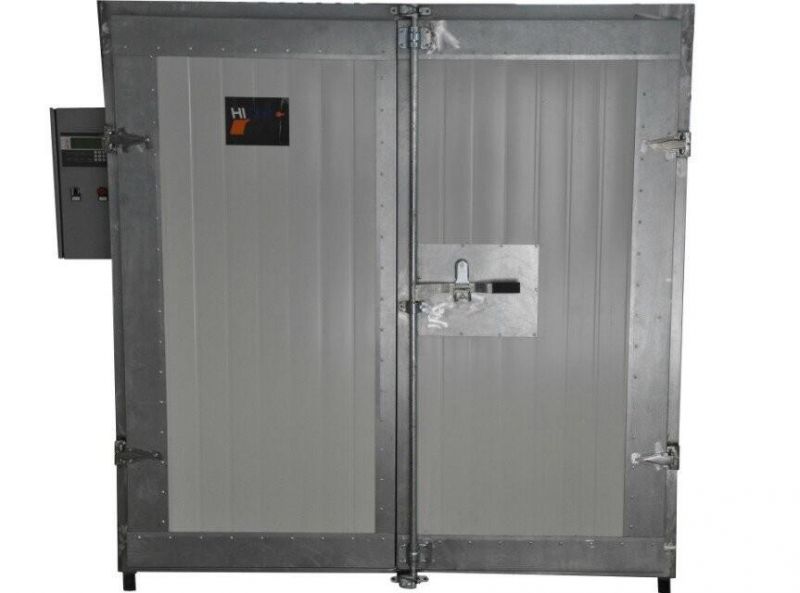

COLO-1864 Electric Powder Coating Curing FurnaceSpecification:
Power Supply: 380V, 50-60Hz. 3 Phase(Voltage can be Customized)
Heating Type: Electricity
Heating Temperature: 180-220oC(Max. 250oC)
Heating Time: 18-20min

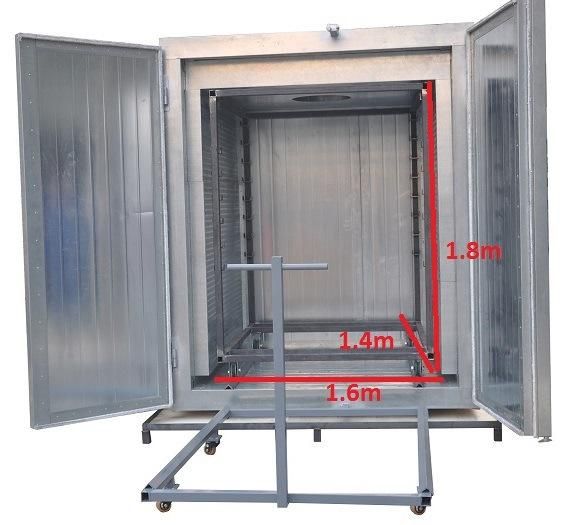

Dimension: Width 1600 x Depth 1400 x Height 1800mm
Inner Transportation: Trolley
Application:
COLO electrical powder curing oven are designed safely and efficiently for curing metal work-piecese which are powder coated previously.
Main Structure
| Item | Name | Qty |
| 1 | Chamber | 1 set |
| 2 | Fan Motor | 1 set |
| 3 | Electrical Cabinet | 1 set |
| 4 | Trolley | 1 set |
| 5 | Electrical Heating System(heating tube) | 1 set |
Material of Powder Coating Oven
1 inner wall: Galvanized Steel(thickness=1~1.5mm),

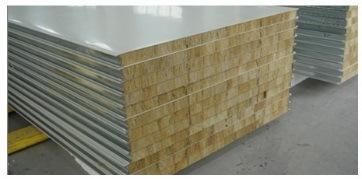

2.interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature
3.outer wall: Color Steel(thickness=1-1.5mm), anti-rust

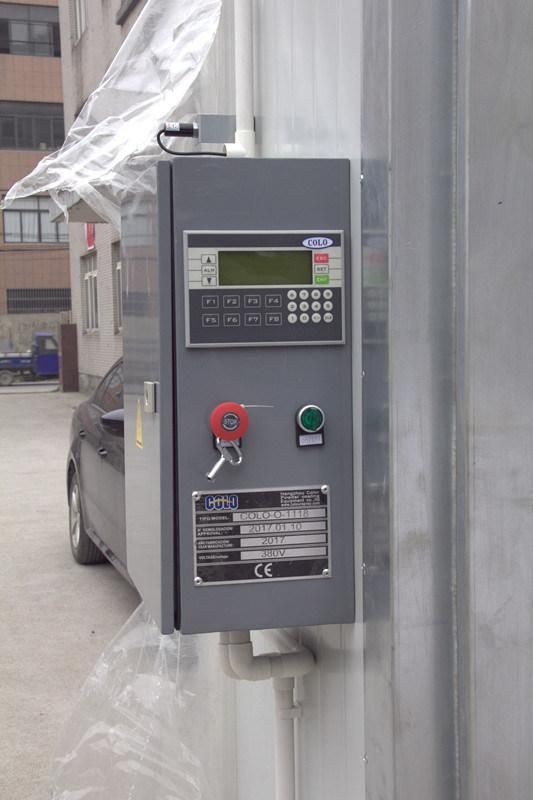

Control Panel- Simple PLC System
PLC control system providing high precision heating process. It offers all the features you need.
The LED display allow you to set the temperature, as well as the duration of the heating process at the desired heating temperature.
You can setting heating time and temperature on the panel.
When the heating time arrive, the system will stop automatically.
