• Model NO.：COLO-2000D
• Condition：New
• Power Supply：AC220V,110V 50Hz-60Hz
• Item：Automatic Powder Painting Robot
• Sweep Speed：0-50m,Min
• Acceleration：1m,Second
• Environmental：0-50degree
• Max Load Capacity：35kg
• Product：Powder Painting Robot
• Motion Range：0.3m-2.5m
• Name：Powder Painting Robot
• Stroke：1.5m,2m,2.5m,3m
• Transport Package：Export Packaging
• Specification：CE, ISO
• Trademark：COLO
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：50set,Month

Basic Info.

Model NO. COLO-2000D Condition New Power Supply AC220V/110V 50Hz-60Hz Item Automatic Powder Painting Robot Sweep Speed 0-50m/Min Acceleration 1m/Second Environmental 0-50degree Max Load Capacity 35kg Product Powder Painting Robot Motion Range 0.3m-2.5m Name Powder Painting Robot Stroke 1.5m/2m/2.5m/3m Transport Package Export Packaging Specification CE, ISO Trademark COLO Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 50set/Month

Product Description

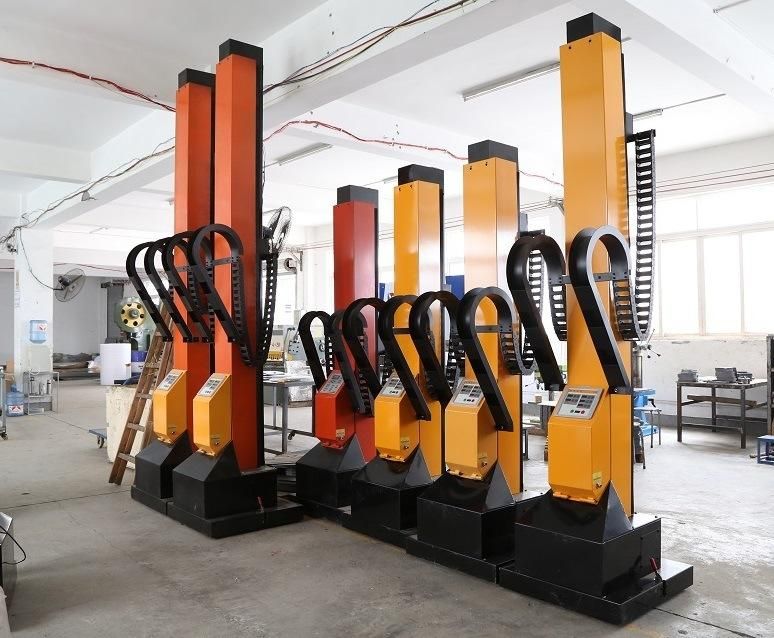

Automatic Linear Unit for Powder Coating
Model: COLO-2000D
Application: auto powder coating for metal work-pieces

Excellent Features:
*Normally it could be equipped with 4-6pcs of auto guns, Max up to 8pcs.
*Smooth and precise movement through chain for speedy and uniform coating.
*User-friendly touch screen control to control speed and stroke.
*Four different strokes to choose, 1.5m/2.0m/2.5m
*Can store up to 80 programs

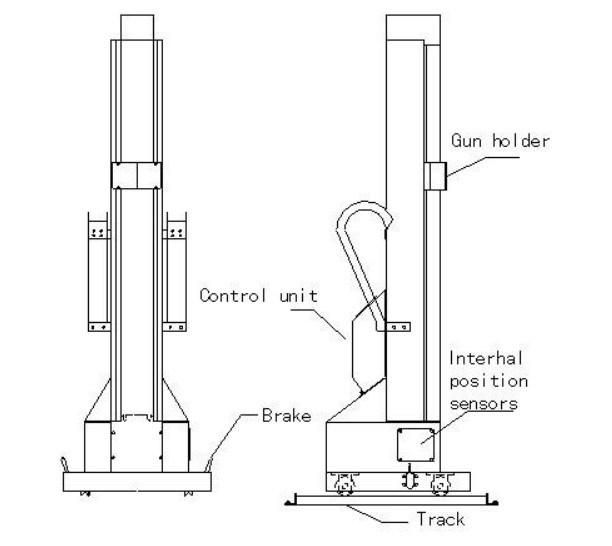

Technical Specification & Drawing

Power supply	AC 220V/110V 50-60HZ
Power motor	0.75KW
Sweep speed	0-50M/MINer
Acceleration	1M/SECOND
	speed adjustable by invert. low limit setting by potentiometer.
Environmental	0-50 degree
Star signal model	digital display
Max load capacity	25kgs
Motion range	0.3-2.5m(can be setting)
Point delay time	0-5sec(optional)
Stroke	1.5m/1.8m/2.0m/2.5m

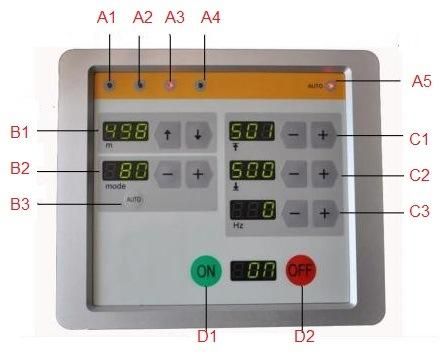

Control Panel Display Instruction

A1 Light NO1
A2 Light NO2
A3 Upward moving light
A4 Downward moving light
A5 Auto model light
B1 Actual value
B2 Program mode
B3 Manual/auto switch button
C1 Top stroke setting
C2 Bottom stroke setting
C3 Speed setting
D1 Powder switch ON
D2 Power switch OFF

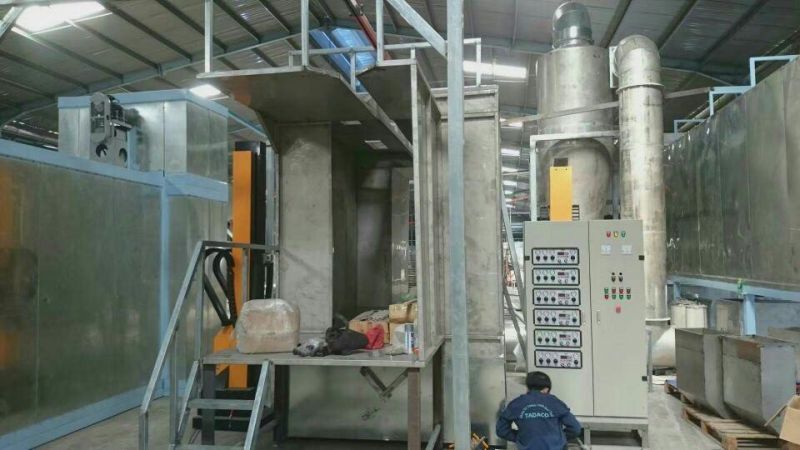

Working in automatic powder coating line

Customer Visiting
Brazilian customer are taking instersted in our reciprocator

Packaging & Delivery



More infromation contact us online, or welcome to visit our factory.

Contact us for more product detail!!!
