Automatic Powder Coating Robot Equipment

Hangzhou Feifu Import and Export Co., Ltd.
  • After-sales Service：12 Moths
  • Warranty：1 Year
  • Type：Automatic Reciprocator Robot
  • Coating：Powder Coating
  • Substrate：Steel
  • Certification：CE, ISO

Base Info

  • Model NO.：COLO-2000D
  • Condition：New
  • Model：Colo-2000d
  • Name：Colo Automatic Z Axle Positioner for Powder Paitin
  • Stroke：2.5m
  • Voltage：Customized
  • Max Load Capacity：35kg
  • Delivery：7-10 Working Days
  • Motion Range：0.3m-2.5m
  • Product：Automatic Linear Unit for Powder Coating
  • Color：Blue,Yellow
  • Transport Package：Wooden Cases
  • Specification：CE, ISO
  • Trademark：COLO
  • Origin：Zhejiang Hangzhou
  • HS Code：8424899990
  • Production Capacity：50set,Month

Description

Basic Info.

Model NO. COLO-2000D Condition New Model Colo-2000d Name Colo Automatic Z Axle Positioner for Powder Paitin Stroke 2.5m Voltage Customized Max Load Capacity 35kg Delivery 7-10 Working Days Motion Range 0.3m-2.5m Product Automatic Linear Unit for Powder Coating Color Blue/Yellow Transport Package Wooden Cases Specification CE, ISO Trademark COLO Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 50set/Month

Product Description

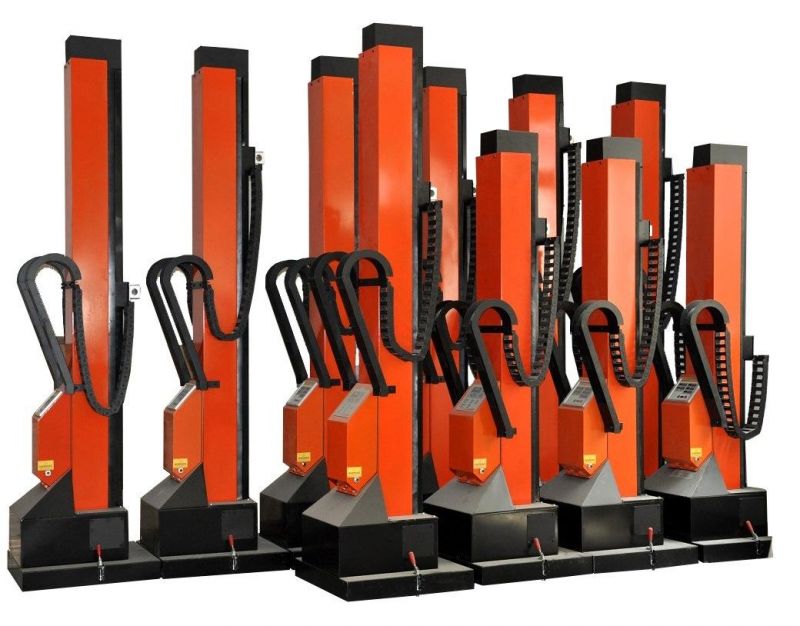

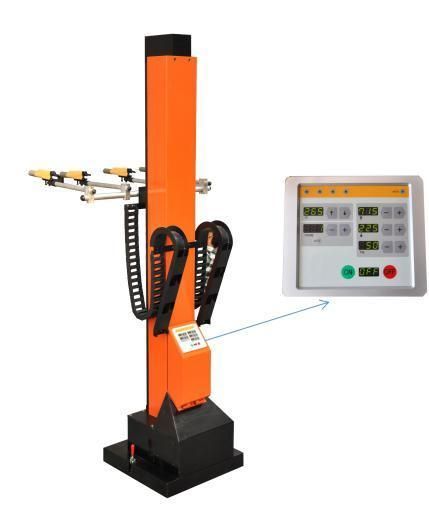

COLO Automatic Powder Coating Robot
Model: COLO-2000D
Application: auto powder paiting for metal work-pieces

Excellent Features:
*Normally it could be equipped with 4-6pcs of auto guns, Max up to 8pcs.
*Smooth and precise movement through chain for speedy and uniform coating.
*User-friendly touch screen control to control speed and stroke.
*Four different strokes to choose, 1.5m/2.0m/2.5m
*Can store up to 80 programs
Automatic Powder Coating Robot Equipment

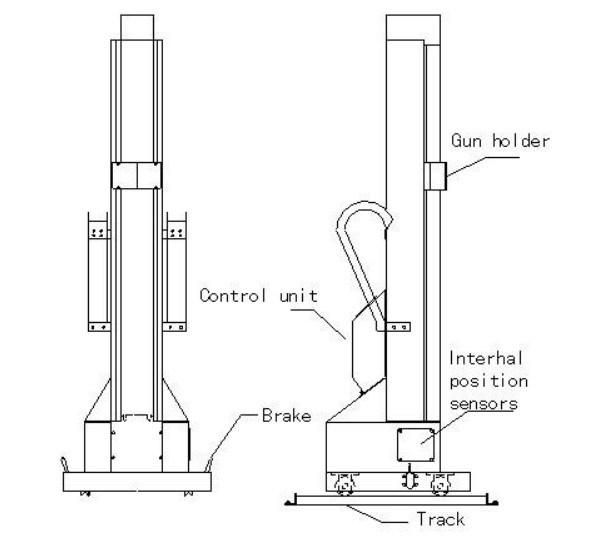

Technical Specification & Drawing of Automatic Powder Coating Robot.
Power supplyAC 220V/110V 50-60HZ
Power motor0.75KW
Sweep speed0-50M/MINer
Acceleration1M/SECOND
 speed adjustable by invert. low limit setting by potentiometer.
Environmental0-50 degree
Star signal modeldigital display
Max load capacity25kgs
Motion range0.3-2.5m(can be setting)
Point delay time0-5sec(optional)
Stroke1.5m/2.0m/2.5m

Automatic Powder Coating Robot Equipment
Automatic Powder Coating Robot Equipment

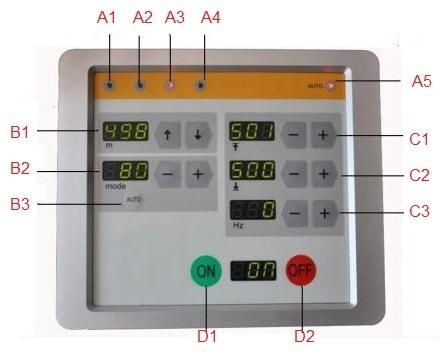

Control Panel Display Instruction
 Automatic Powder Coating Robot Equipment
A1 Light NO1
A2 Light NO2
A3 Upward moving light
A4 Downward moving light
A5 Auto model light
B1 Actual value
B2 Program mode
B3 Manual/auto switch button
C1 Top stroke setting
C2 Bottom stroke setting
C3 Speed setting
D1 Powder switch ON
D2 Power switch OFF

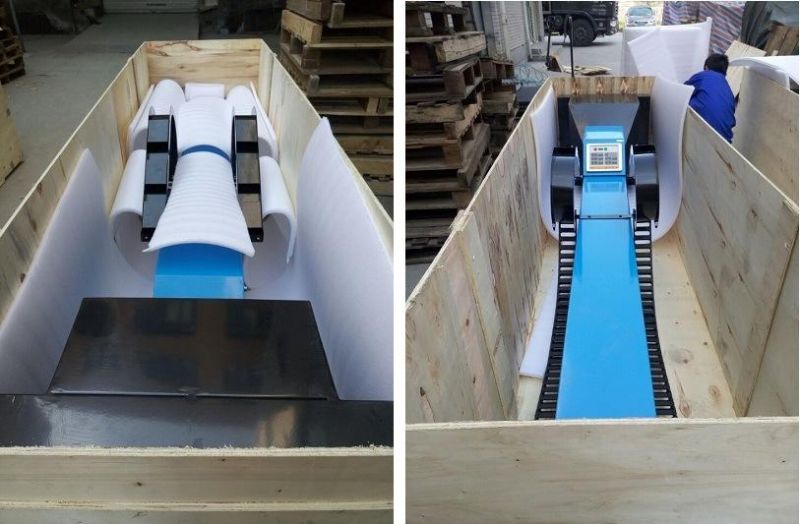

Packing in wooden cases.

Automatic Powder Coating Robot Equipment


More information contact us online, or welcome to visit our factory.
