• Model NO.：colo-2300D
• Condition：New
• Code：Colo-2300d
• Item：Automatic Powder Coating Spray Gun Mover
• Speed：0-50m,Min
• Stroke：1.5m,1.8m,2m,2.5m
• Product：Automatic Powder Coating Spray Gun Mover
• Packaging：Wooden Case
• Delivery：10-15 Working Days
• Name：Automatic Powder Coating Spray Gun Mover
• Power：50W
• Transport Package：Wooden Case
• Specification：L*W*H(280x87x85cm)
• Trademark：FEIFU,COLO
• Origin：China
• HS Code：8424990000
• Production Capacity：100sets,Month

standard stroke1000-2000Lifter loading40kgSpeed range01-M/S variable frequency adjustableVoltage220V AC+-10%Power0.75KW 0.37KWUp and down point delayUp and down point movement, adjustable



Operation instruction

1.adjust the max and min strock.

2.store the programs
3. we also have Spanish Language as options


Maintenance

1. The chains need be checked and adding machine oil on time .Need tight the chain if the chain is too long1,chain need changed each year ,the chain type is 10A. Please note ,when you change the chain please make sure the chain mechanical position is not change.

2. Clean the wheel and metal tube on time ,if there are too much dust ,please clean it use the knife .Make the working condition clean it the best way.

3. Check if the controller is sealed ,if the seal is broken and please change the new one .Clean all the accessories in the controller with air ,after cleaning  and please close it on time .Or the dust will come into the controller.

4. Clean and check the base on time ,clean the motor with air.

5. If the mechanical situation is changed ,please readjust the stand point ,or the moving will out of control .The method is :push the key ↑ or ↓,let the spray gun move to the middle of the working stroke ,then adjust the sensor on the bottom of the base ,when the data on the "m" indicated 500 and then the setting is finished.

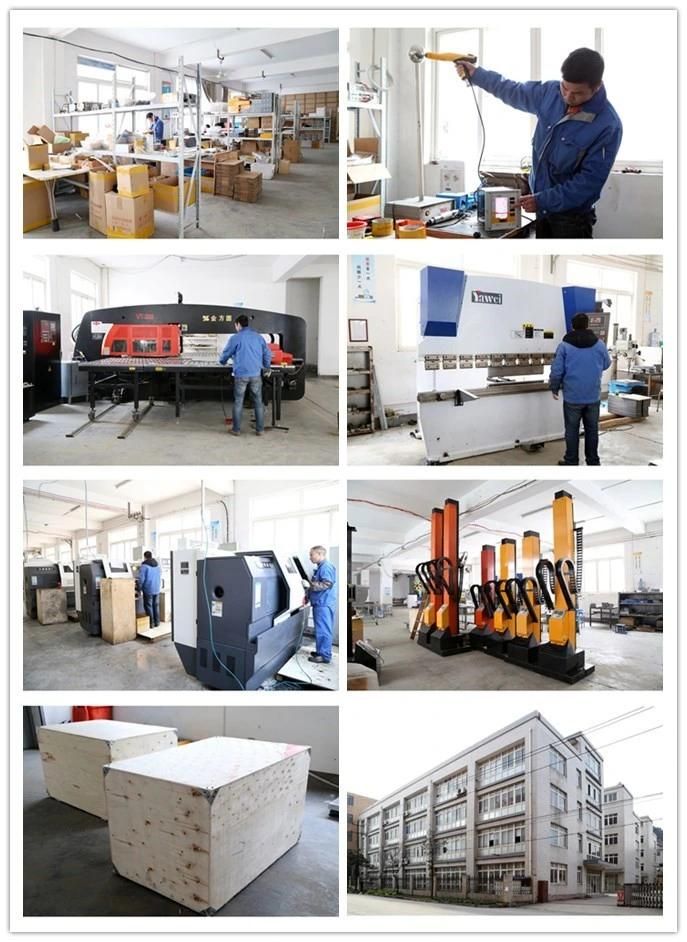

Our factory
