• Model NO.：Comflex
• Production Speed：2.5~3.5m,Min
• Strip Thickness：0.18-0.3mm
• Outer Dimensions：15000*1100*1700
• Packing Details：Polywood Box and Standard Pallet
• Payment Term：T,T
• Forming Type：Customized
• Limited Length：7m
• Material of Strip Coil Available：SUS304, 321 and 316L
• Selling Units：Single Item
• Single Package Size：50X50X80 Cm
• Transport Package：Standard Seaworthy Package
• Specification：SGS, ISO
• Trademark：HLT
• Origin：China Jiangsu
• HS Code：844790900
• Production Capacity：500,Year

Size rangeWall thicknessProduction SpeedDN8-400.18-0.3mm2.5-3.5m/min

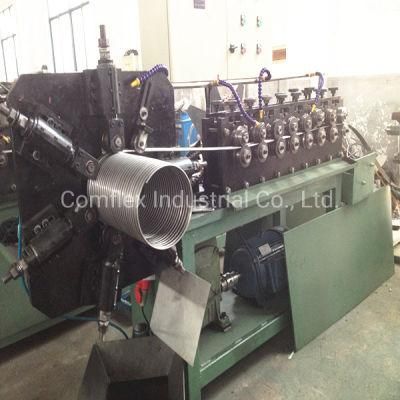

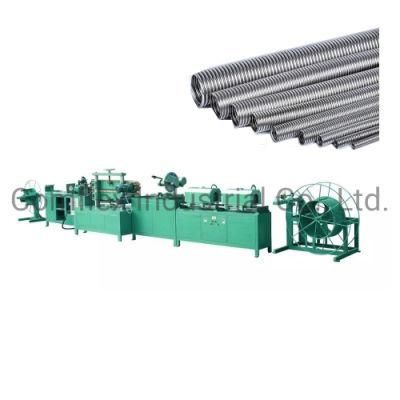

PU Metal Hose Forming Machine

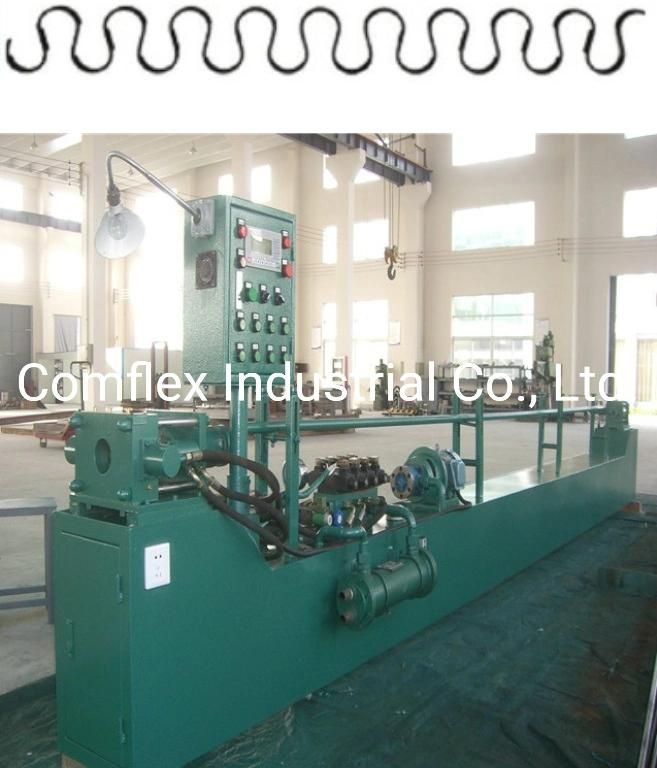

Pitch Type:Ω Type

Products Description

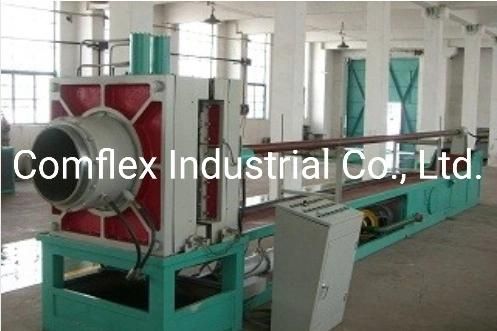

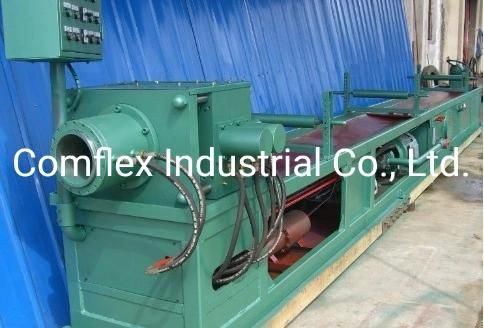

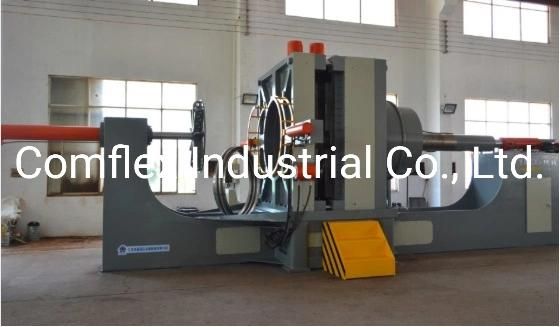

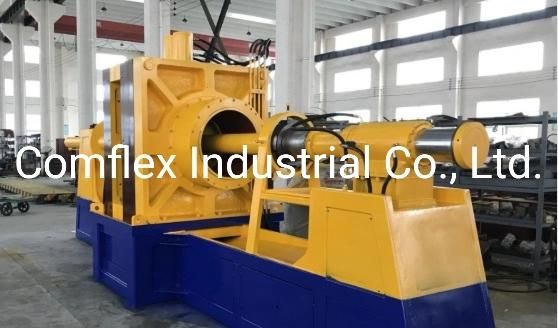

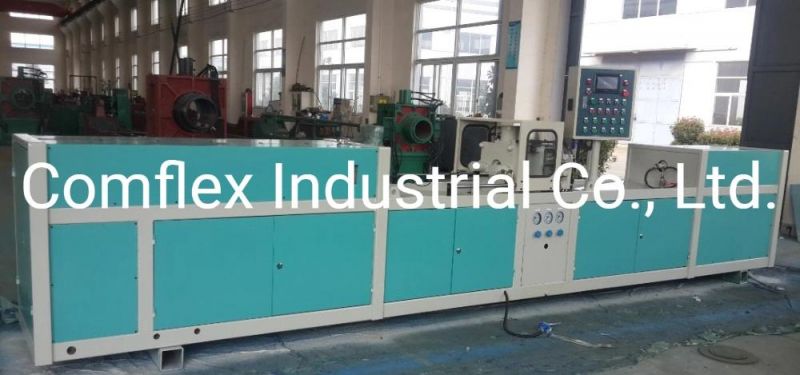

Hydraulic Metal Hose Forming Machine
YKCX-65D
ID range: Ф16―Ф55mm;
Thickness range: δ≤0.14×2―0.30×2mm;
Length range: L≤1000mm;



YKCX-150A
ID range: Φ32―Φ159mm

Thickness range: single layer 0.4―1.2mm
Double layer 0.25×2―0.8×2mm
Length range: L≤7000m




YKCX-300C
ID range: Φ50―Φ300mm
Thickness range: single layer 0.4―1.5mm
Double layer 0.25×2―1.0×2mm
Length range: L≤7000mm



YKCX-600A
ID range: Φ200―Φ630mm

Thickness range:single layer1.0―3.0mm
Double layer: 0.8×2―1.6×2mm
Length range: L≤2000mm



YKCX-1200A
ID range: Φ700―Φ1220mm
Thickness range: single layer: 1.0―3.0mm
Double layer 0.8×2―1.6×2mm
Length range: L≤2000mm

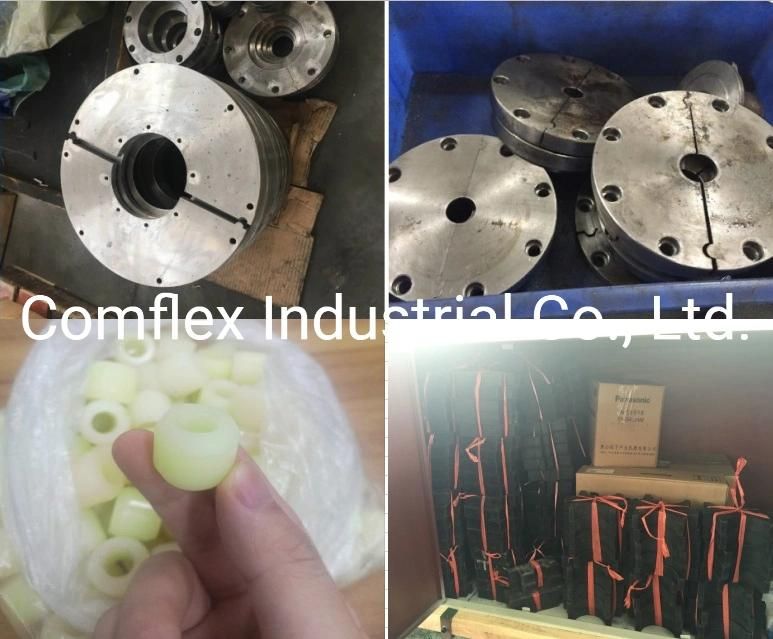

Spare Parts of Machine

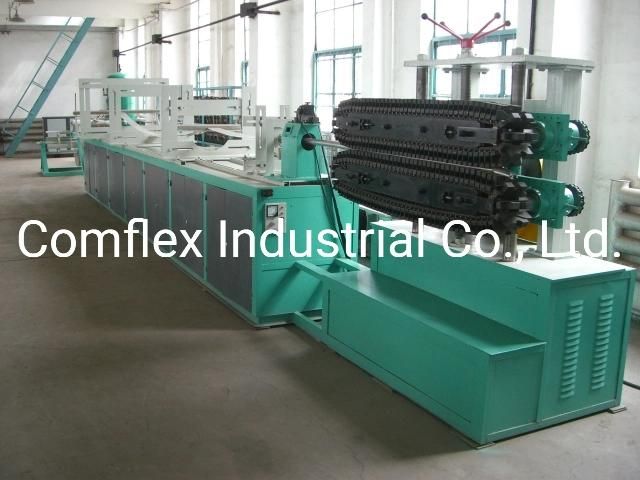

Related machines

Tube welding machine

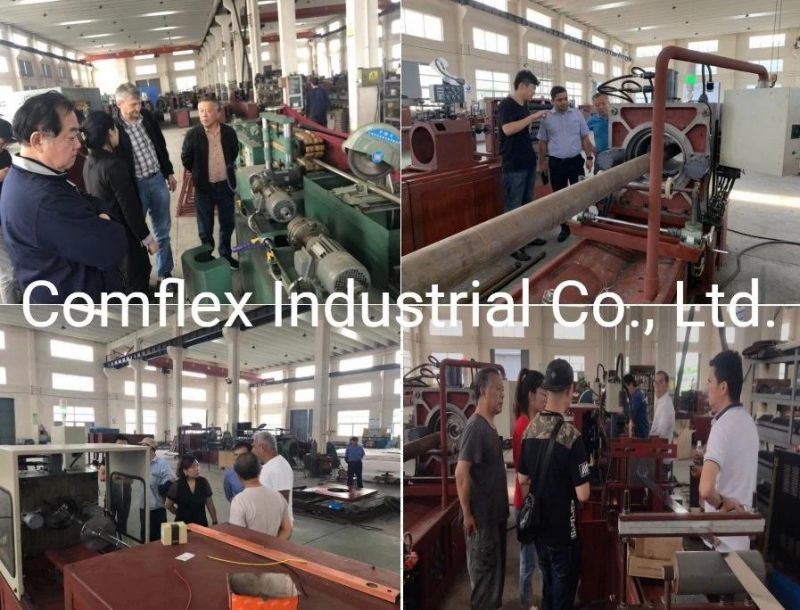

Our Customers


Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.

Our service
 Warranty period of one year
 standard seaworthy package
 Engineers available to service machinery oversea

FAQ for hose making machine

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
