• Model NO.：DN50-300mm
• Expanding Medium：Emulsified Liquid
• Forming Speed：5-10 Seconds Per Convolution
• Wall Thickness：0.3-0.8mm
• Pitch Distance：9-30mm
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS, ISO
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. DN50-300mm Expanding Medium Emulsified Liquid Forming Speed 5-10 Seconds Per Convolution Wall Thickness 0.3-0.8mm Pitch Distance 9-30mm Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS, ISO Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

flexible metallic hose making machine1. Product description of flexible metallic hose making machine
*Diameter: DN50-300mm
*No. of layers: single or double layers
*Type of the bellows: annular bellows
*Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
*Control: PLC control
*Length: ≤7500mm
*Expanding medium: emulsified liquid
*Forming speed:5-10seconds per convolution
2. Technical data of flexible metallic hose making machine

DN	Actual ID	Wall thickness	Width of strips	Height of convolution	Pitch distance(mm)
DN50	Φ50	0.30	158	9	9
DN65	Φ65	0.30	205	12	12
DN80	Φ79.85	0.40	252	15	15
DN100	Φ99.80	0.50	315	17	18
DN125	Φ124.88	0.60	394	21	19
DN150	Φ150	0.60	473	23	20
DN200	Φ199.84	0.80	630	25	22
DN250	Φ249.84	0.80	787	30	25
DN300	Φ299.84	0.80	944	35	30

3. Pictures showing

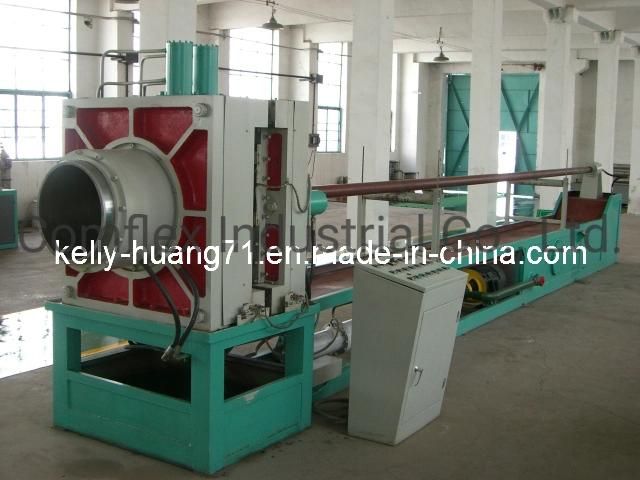

                                     DN50-300 Hydraulic forming machine

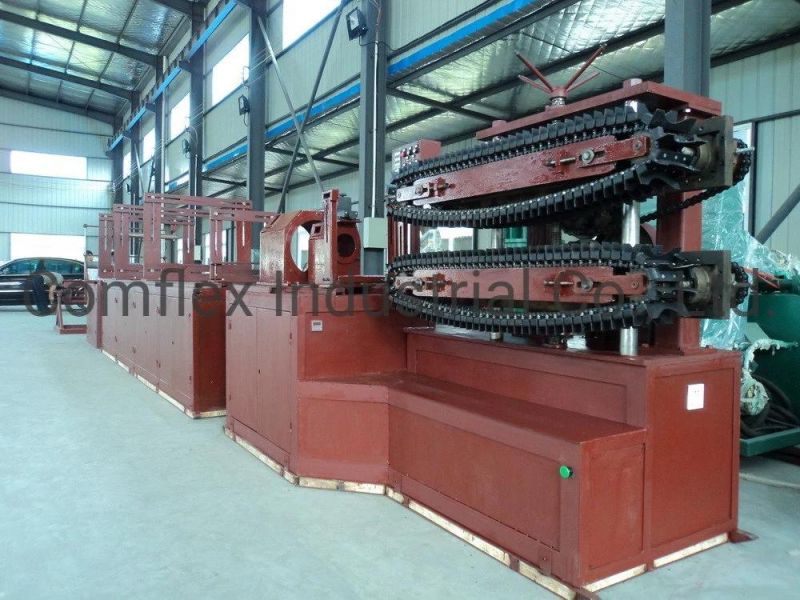

                                            DN50-300mm Tube mill machine

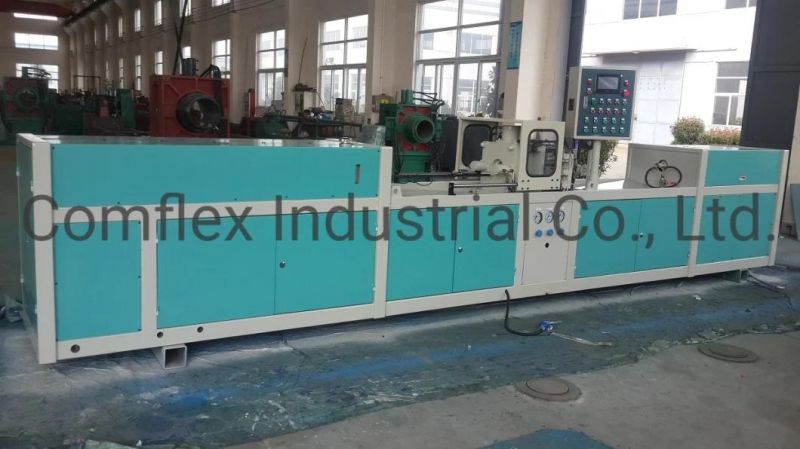

                                     DN32-125mm Hydraulic forming machine

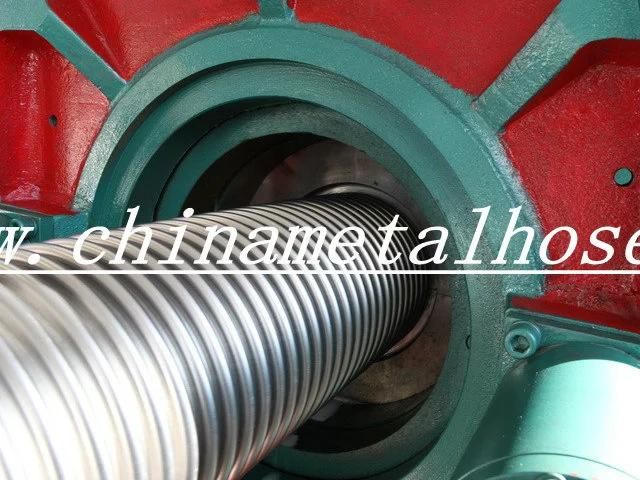

                                                 Production detail


                                   DN16-25 Hydraulic forming machine


4. Products show
                                                  Flexible metal hose


5. FAQ for flexible metallic hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
