• Model NO.：zh
• Warranty：24 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Width of The Panel：1300mm
• Thickness of Coil：1-2mm
• The Diameter of The Rollers：320mm with Hard Chroming Treatment, CNC Processing
• Thickness of The Middle Panel：80mm
• Control System：PLC Control
• Roller Shaft：Upper 5 Rows Bottom 6 Rows
• Main Machine Structure：350 H Steel with 16mm Thickness Plate CNC Milling
• Line Speed：0-30m,Min
• Main Power：7.5kw Motor
• Cutter：Cut to Length Motor Control
• Accurate：1mm
• Material of Blade：Cr12MOV with Hard Heat Treatment 55-62 Degree
• Bearing：High Speed Motor Bearing
• Transmit：Gear
• Transport Package：Water Proof Plastic Film Cover
• Specification：1300mm *2mm
• Trademark：ZHONGHENG
• Origin：China
• HS Code：8462399000
• Production Capacity：50 Sets ,Months

Forming speed(m/min)

8-15

Not include the time of cutting

3.

Forming stations

upper4 buttom 5

Depend on actual design

4.

Thickness of structure

80mm

5.

Forming shaft diameter(mm)

320

6.

Chains

1 inch

7.

Sleeve

galvanized pipe with color coating

8.

Type of cutting

Roll formed and length-set cutting

9.

Control system

 PLC Panasonic  Inverter Schneider

10.

Install dimension(depend on the final design)

2.2m×1.35m×1.2m

Without panel length

11.

Total weight (Approx)

2.5T

Depend on final design

12.

Screen

Text screen /touch screen

Usage :Accessories of the roll forming machine. The usgae is leveling and cutting .

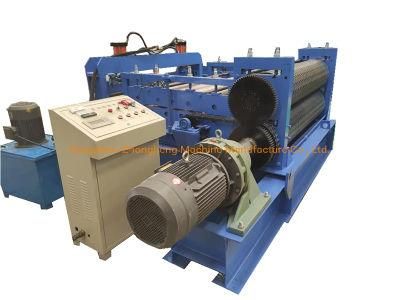

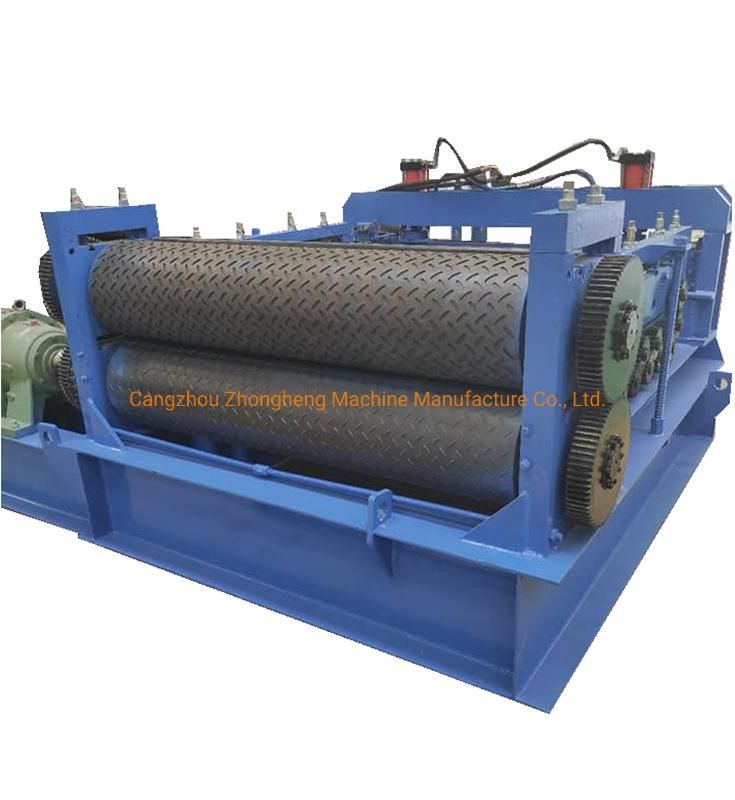

Machine picture

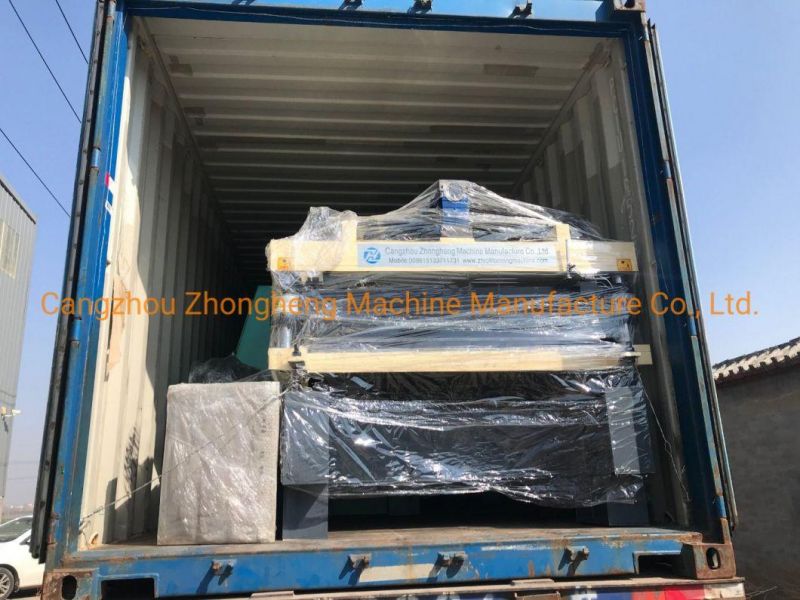

Package and shipment

This machine can load with the hydraulic decoiler and other machines together in one 20' container.
