Small R Tube Squeezing and Sizing Machine

Shanghai Zhengzhuo Machinery Manufacturing Co., Ltd.
  • Structure：Floor Type
  • Pressure Supply Type：Hydraulic Pressure
  • Metal Material：Steel
  • Spinning Deformation Condition：Hot Spinning
  • Finished Product：Tube Bends
  • Finished Product Shape：Bends

Base Info

  • Model NO.：ZZSRJZJ
  • Place of Origin：Shanghai, China (Mainland)
  • Certificate：CE, ISO
  • Production Capacity：40 Set,Sets , Year

Description

Basic Info.

Model NO. ZZSRJZJ Place of Origin Shanghai, China (Mainland) Certificate CE, ISO Production Capacity 40 Set/Sets / Year

Product Description

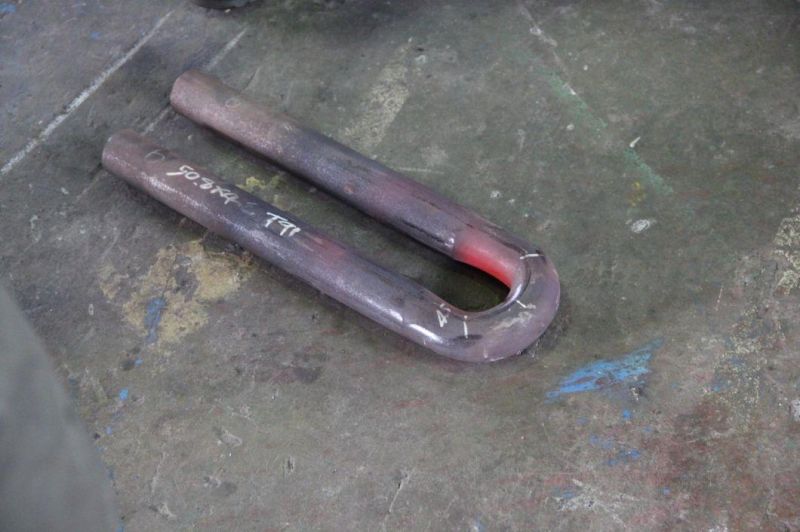

 This machine is used to squeeze and calibrate small heated elbow on the same level. A qualified  180°elbow of Φ=76mm thickness=12.7mm R=1.5D can be squeeze to R=0.6D and achieve technical requirement.

Consists of four parts:
  • Hydraulic system
         Hydraulic station, oil cylinder, oil pump, accumulator
  • Electrical control systems
         Control box, operator panel, proximity switch, medium frequency heater
  • Mechanical systems
         Frame, Left and right clamping die, back die, sizing die, lower die, position block
  • Water cooling system
         Water tank, spray pump, water pump, fans

Tube Diameter32 - 76 mm
Tube Thickness3 - 12.7 mm
Bend R before SqueezingR = 1.5D
Bend R after SqueezingR = (0.6 - 1.2)D
Pump Power18.5 KW

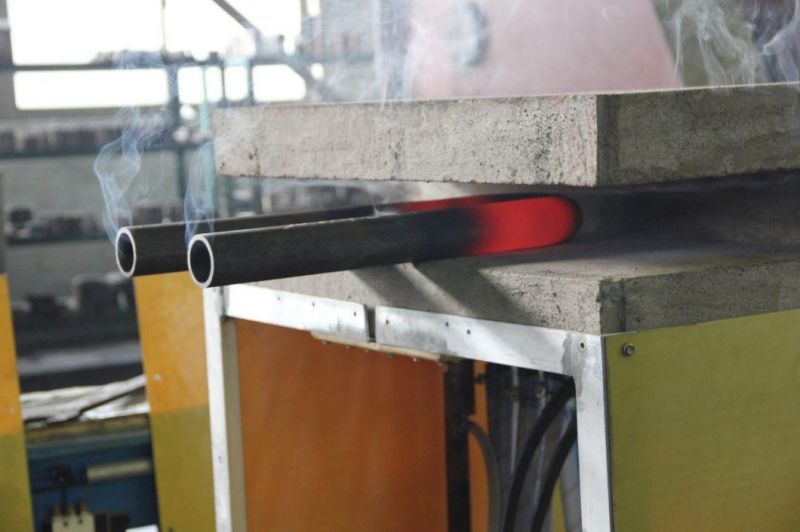

Elbow heating

Small R Tube Squeezing and Sizing Machine

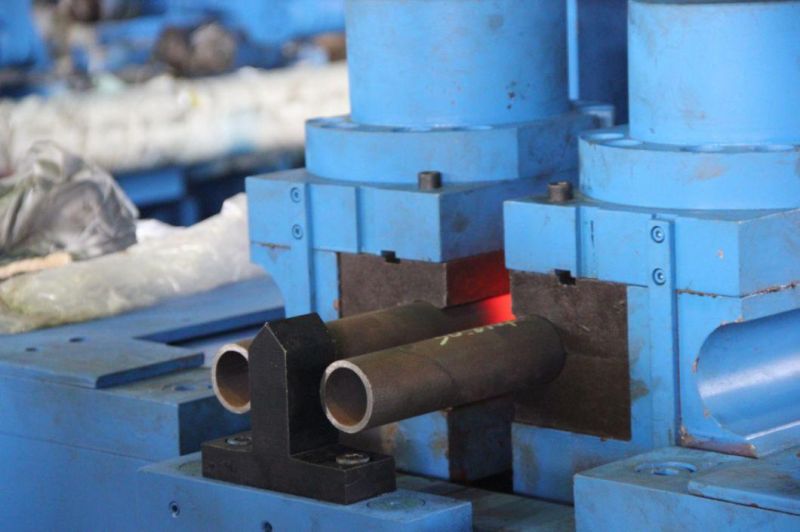

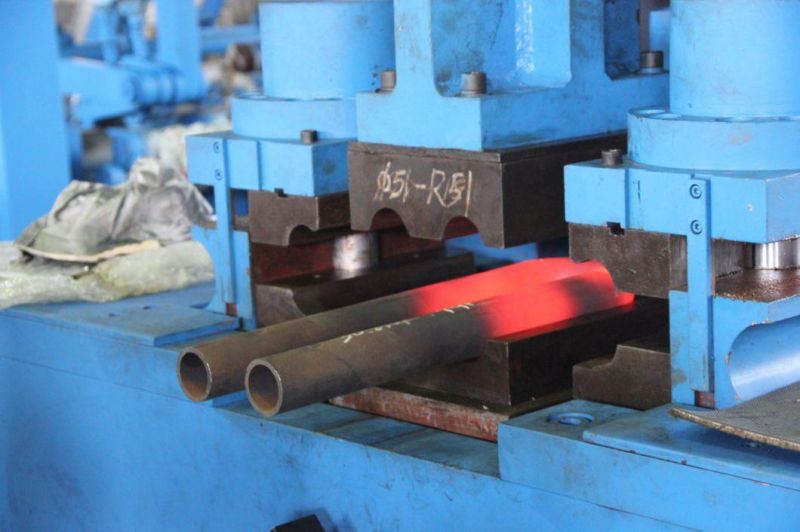

Squeezing & Sizing
Small R Tube Squeezing and Sizing Machine
Small R Tube Squeezing and Sizing Machine
Small R Tube Squeezing and Sizing Machine
Small R Tube Squeezing and Sizing Machine
