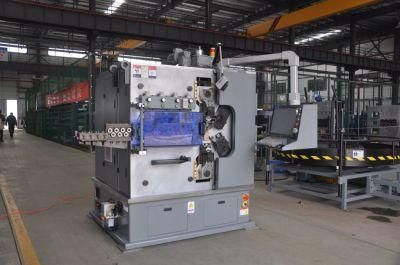

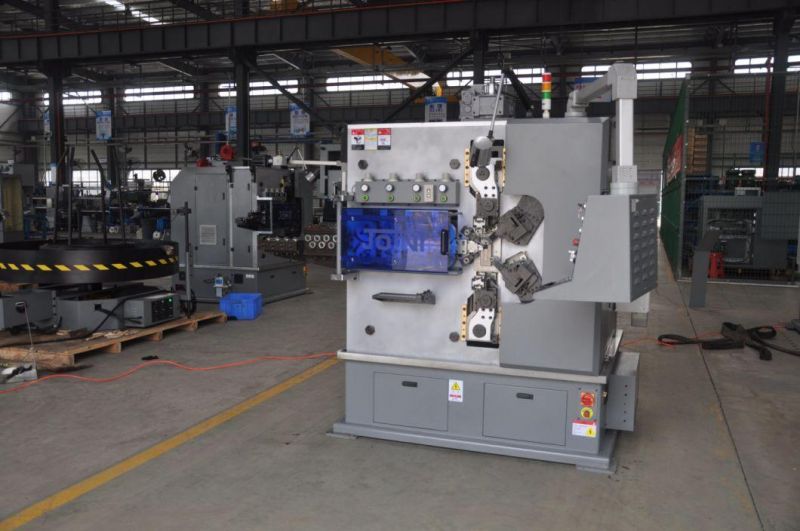

Jtc-660 6mm CNC Compression Spring Coiling Machine& Spring Coiler
Dongguan Might Precision Machinery Co., Ltd.- After-sales Service:After Sales Service
- Control Type:CNC
- Axis Count:6 Axis
- Warranty:1 Year
- Max Od:120mm
- Transport Package:Wooden Case
Base Info
- Model NO.:JTC-660
- Specification:1600*2600*2100MM
- Trademark:Joint
- Origin:China
- HS Code:84633000
- Production Capacity:200
Description
Basic Info.
Model NO. JTC-660 Specification 1600*2600*2100MM Trademark Joint Origin China HS Code 84633000 Production Capacity 200Product Description
Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry.

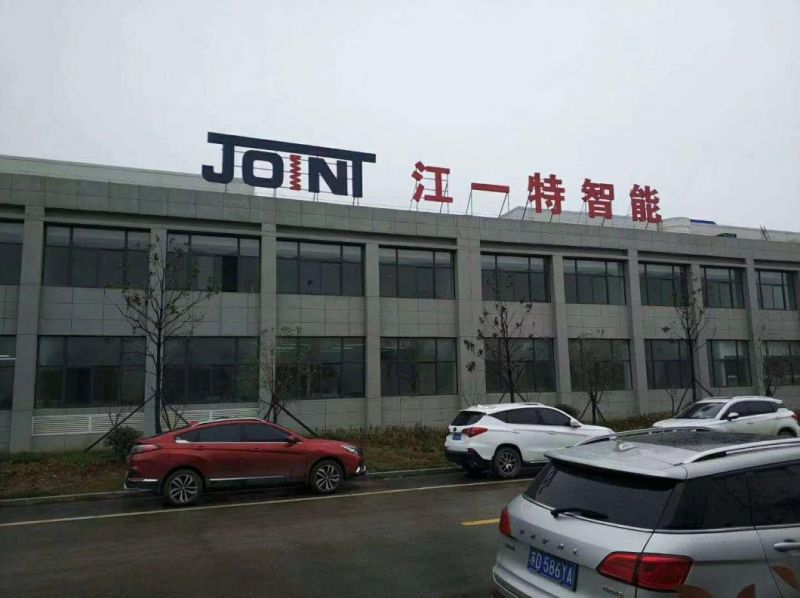

Company Profile:
Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.
Product Specification:
- 5 servo motors, industrial computer controlled insuring reliable control.
- Graphic and easy to use software simplifies programming.
- Cam-less operation provides quick and easy setup.
- A micro-pulse hand wheel for easy setup and programming.
- The computer system stops the machine if a programming error exceeds machine setup capabilities.
- On-screen diagnostics shows alarm status and corrective action required.
- Standard spring shapes are pre-programmed for easy setup.
- O.D. control is a standard feature.
- State of the art touch screen control interface for easy operation.
- Programmable air valves provide flexible pneumatic application.
- Security sensor and position sensor included.
- USB data access interface, convenient for program backup and production management.
Model | JTC660 |
Min Wire Feeding Value | 0.01 |
Axes Number | 6axis |
Max wire Feeding Value | 10000.00MM |
Wire size range | 2.0-6.0mm |
Max Wire Feeding Speed | 80M/Min |
Max. Feeding length | unlimited |
Total output power of servo motors | 32.1KW |
Input Power Supply | 380V/50HZ/3PH |
Control System | self developed system |
Probe No. | 2 |
Net Length | 1600MM |
Net Width | 2600MM |
Net Height | 2100MM |
Net Weight | 4800KGS |
