Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

Wuxi Longterm Machinery Technologies Co., Ltd.
  • After-sales Service：Available
  • Warranty：One Year
  • Structure：Horizontal
  • Spinning Strength：General Spinning
  • Pressure Supply Type：Hydraulic Pressure
  • Spinning Direction：Forward

Base Info

  • Model NO.：HLT
  • Metal Material：Steel
  • Riveting Principle：Radial Models(JM Series)
  • Spinning Deformation Condition：Hot Spinning
  • Spinning Belt Wheel Type：Combined Belt Wheel
  • Spinning Wheel Number：Triple
  • Finished Product：Cylinder
  • Finished Product Shape：Cylinder Shape
  • Product Name：Gas Cylinder Hot Spinning Machine
  • Model：Thg622, Thg660, Thg720, Thg920
  • Diameter：406-920mm
  • Length：5500-12500mm
  • Thickness：10-30mm
  • Height：1300mm
  • Power：200-355kw
  • Moving Angle：90°
  • Control：CNC
  • Dimension：23000*3200*2300mm
  • Transport Package：Standard Seaworthy or Air Package
  • Specification：SGS
  • Trademark：LTM
  • Origin：China, Jiangsu
  • HS Code：730799000
  • Production Capacity：20sets,Year

Description

Basic Info.

Model NO. HLT Metal Material Steel Riveting Principle Radial Models(JM Series) Spinning Deformation Condition Hot Spinning Spinning Belt Wheel Type Combined Belt Wheel Spinning Wheel Number Triple Finished Product Cylinder Finished Product Shape Cylinder Shape Product Name Gas Cylinder Hot Spinning Machine Model Thg622, Thg660, Thg720, Thg920 Diameter 406-920mm Length 5500-12500mm Thickness 10-30mm Height 1300mm Power 200-355kw Moving Angle 90° Control CNC Dimension 23000*3200*2300mm Transport Package Standard Seaworthy or Air Package Specification SGS Trademark LTM Origin China, Jiangsu HS Code 730799000 Production Capacity 20sets/Year

Product Description

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder
Machine ModelTHG622THG660THG720THG920
Processing DiameterΦ406-Φ622mmΦ406-Φ660mmΦ559-Φ720mmΦ559-Φ920mm
Processing Length5500-12500mm5500-12500mm5500-12500mm5500-12500mm
Processing Thickness10-30mm10-30mm10-30mm10-30mm
Machine Central Height1300mm1300mm1300mm1300mm
Main Engine Power200KW250KW280KW355KW
Template Rotroflexion Angle90°90°90°90°
Control TypeCNCCNCCNCCNC
Machine Dimension(MM)23000*3200*230023000*3200*230031000*3200*250031000*3200*3300

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

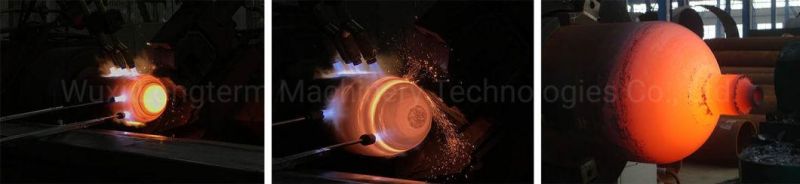

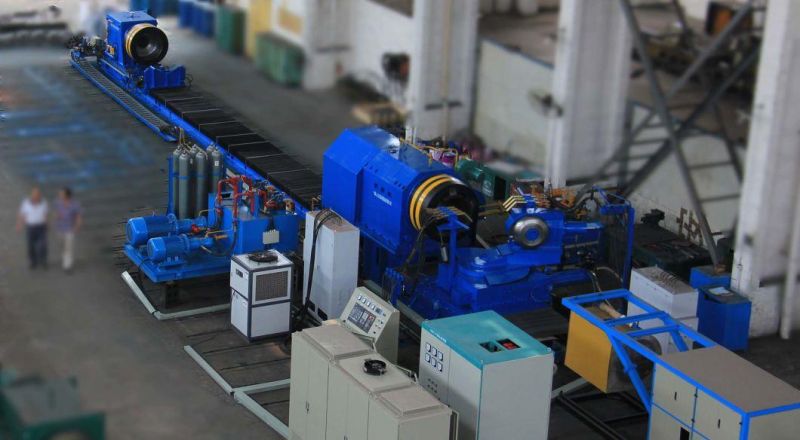

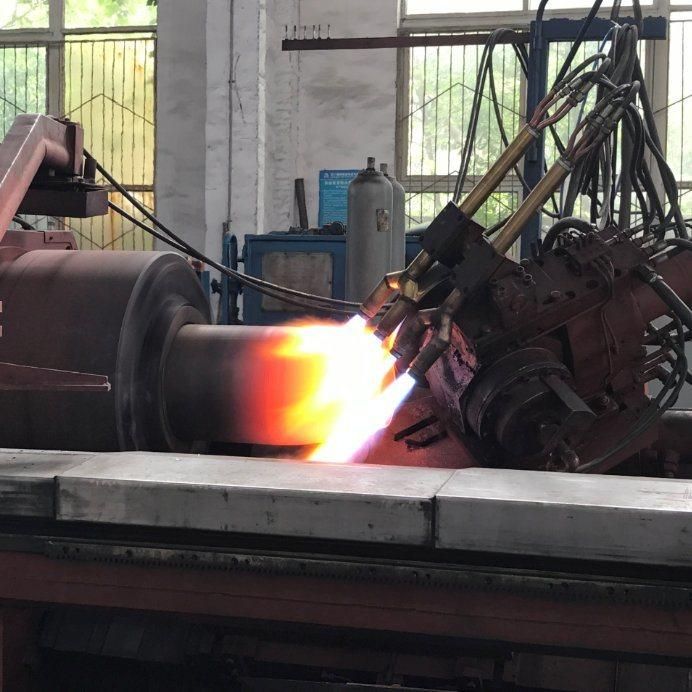

Machine details as below:

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

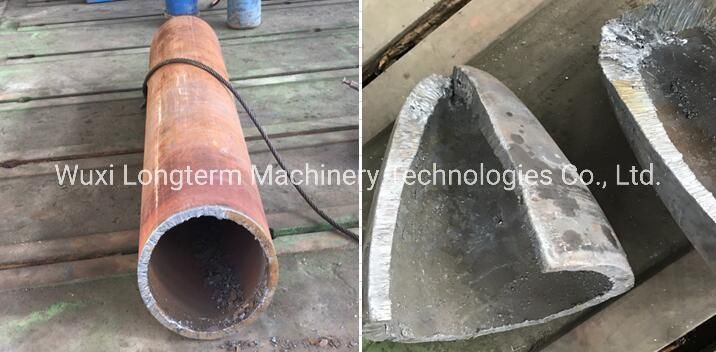

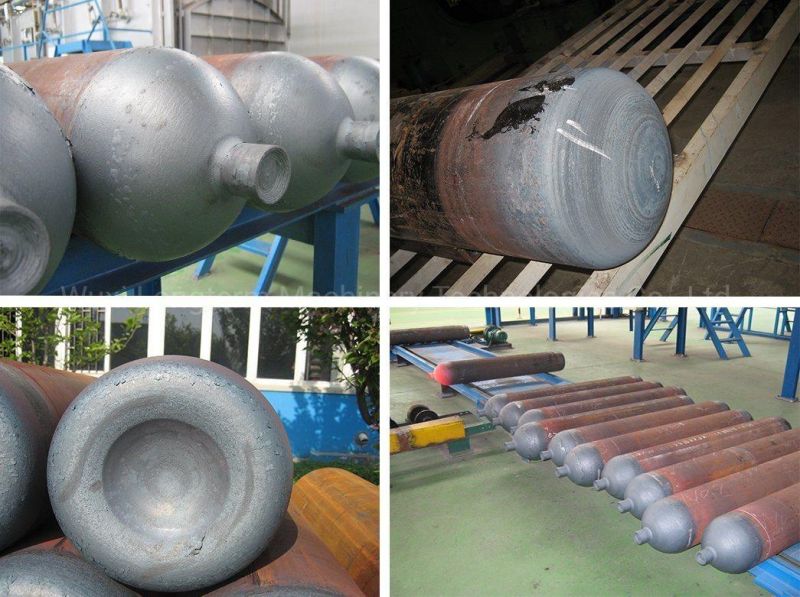

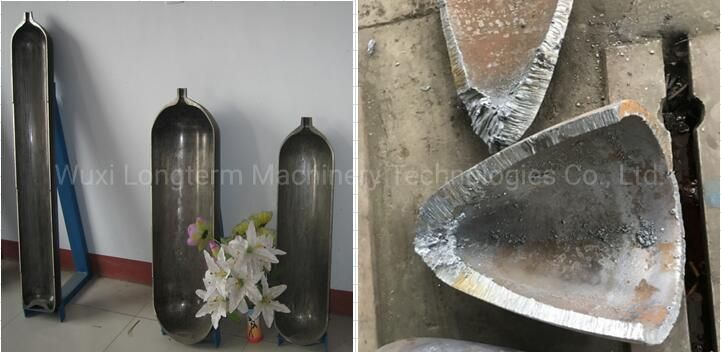

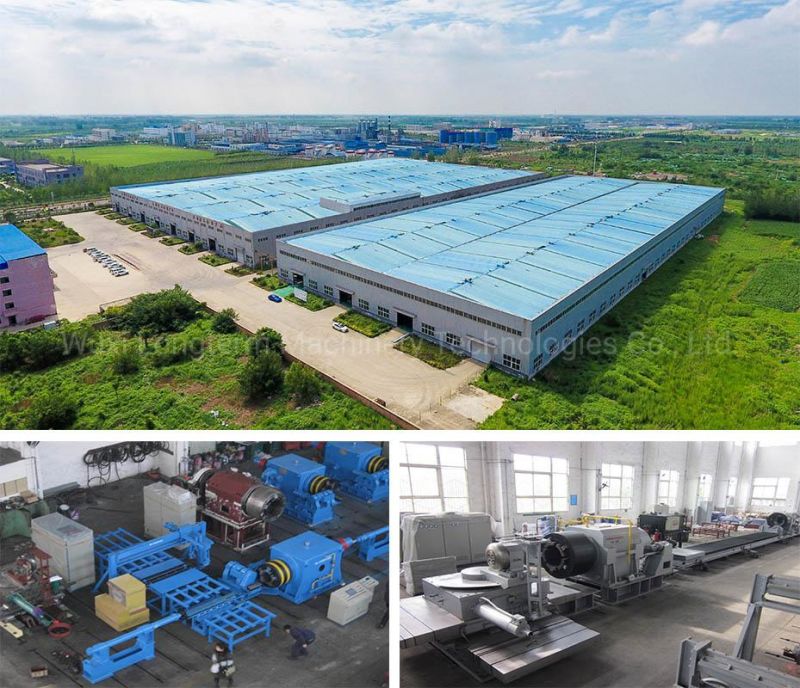

 Picture of cylinderChinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder  Picture of details Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder Factory
Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder
FAQWe need to know the following information to deal with the proposal for you:
1. Could you pls tell us the cylinder diameter &length?
2. Do you have a technical drawing so that our engineer will know the specification.
3. Which type do you need? Template type of roller type?
