• Model NO.：HNHJ
• Coil Width：500 - 2150 mm
• Thickness：0.2 - 25 mm
• Transport Package：Container
• Specification：500 - 2150 mm
• Trademark：HNGK
• Origin：China
• HS Code：8462312000
• Production Capacity：5 Sets

Basic Info.

Model NO. HNHJ Coil Width 500 - 2150 mm Thickness 0.2 - 25 mm Transport Package Container Specification 500 - 2150 mm Trademark HNGK Origin China HS Code 8462312000 Production Capacity 5 Sets

Product Description

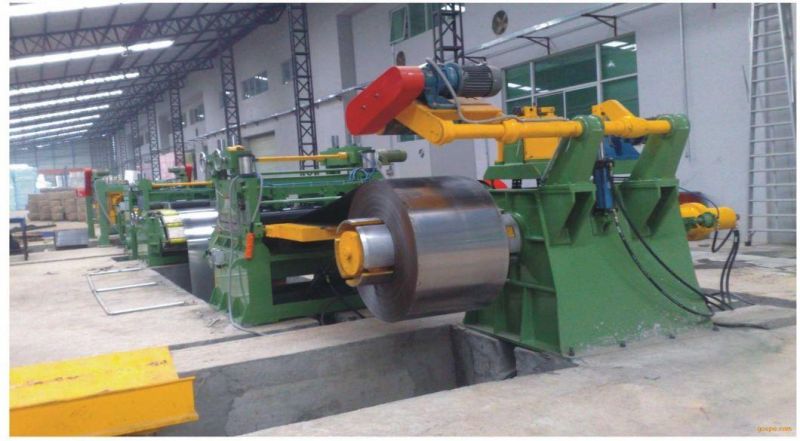

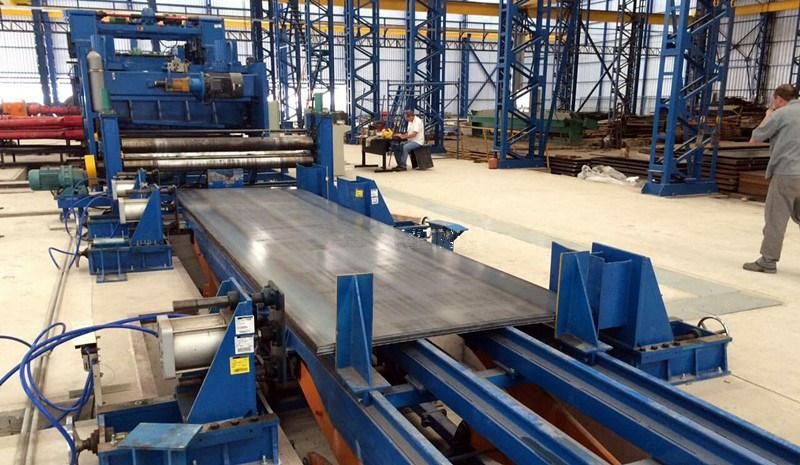

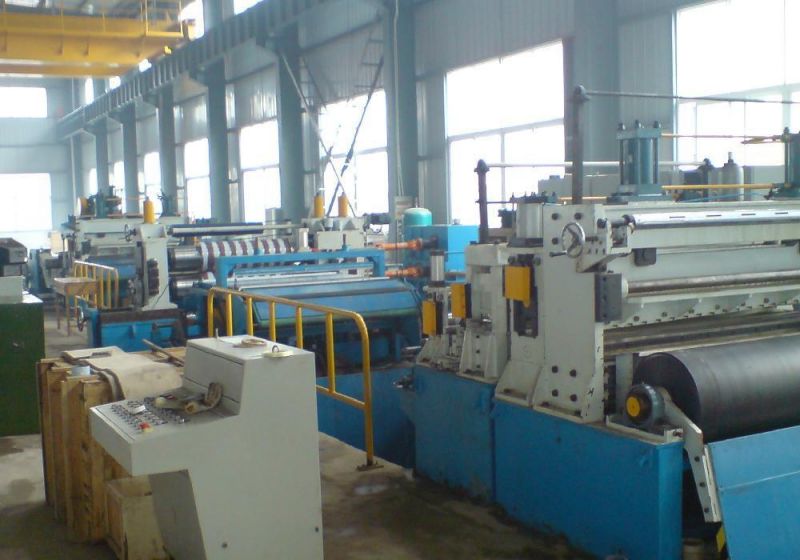

Cut to Length Machine for Pipe Mill

Cut to length line is to open the coil, level the steel coil, size the steel coil and cut to length according to the set length.

 Model:

No.	Model	Thickness (mm)	Width (mm)	Speed (m/min)	Capacity (kw)	Area (M2)
1	HMHJ-01	0.2 - 1.0	500 - 1250	30	100	12×30
2	HMHJ-02	0.5 - 2	900 - 1250	30	150	12×30
3	HMHJ-04	1.5 - 4	1000 - 1500	25	175	12×30
4	HMHJ-06	2 - 6	1000 - 1550	25	200	12×30
5	HMHJ-10	4 - 10	1000 - 1550	20	400	12×40
6	HMHJ-13	4 - 13	1000 - 1550	20	450	12×40
7	HMHJ-14	5 - 14	1000 - 1700	15	500	16×50
8	HMHJ-16	6 - 16	1200 - 2150	15	600	16×50
9	HMHJ-20	8 - 20	1200 - 2150	10	700	16×50
10	HMHJ-25	10 - 25	1200 - 2150	10	900	16×50

Process:
Coil Loading - Uncoiling - Pinching and Rough Leveling - Sides Cutting - Powerful Precise Leveling 1 - Powerful Precise Leveling 2 - Cut to Length - Palletizing - Collection

Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.

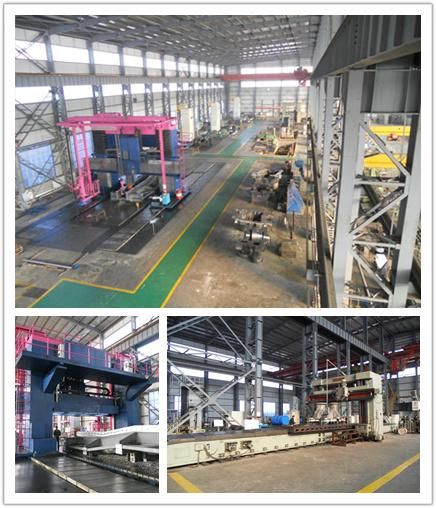

Our Factory

Our Customer

Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
