• Model NO.：CCZK-EL
• Machine Type：Evaporation Vacuum Coating Machine
• Chamber Size：Can Be Customized According to Details Requirement
• Application：Car Lamps, Buttons, Cosmetic Caps, Christmas Ball
• Coating Materials：Aluminium Wire, Cooper Wire, Chrome Wire,etc
• Coating Color：Silver ,Cooper ,Rainbow Color,etc
• Coating Substrate：Glass,ABS,PVC,Resin,Metal
• Structure：Vertical Double Door or Horizontal Single Door
• Package：Wooden Package or as Request
• After Sales：Free Training & Oversease After Sales Available
• Transport Package：Wooden Box Plastic Film Cover High Cube Export S
• Specification：Dimension(L*W*H): 1000mm*1200mm
• Trademark：CICEL
• Origin：Wenzhou
• HS Code：8543300090
• Production Capacity：100 Set,Sets Per Year Many Sets Would Be Made at T

configuration

Model

CCZK-1000EL

CCZK-1200EL

CCZK-1400EL

CCZK-1800EL

CCZK-2200EL

Customized

Size is available

Chamber size(MM)

D1000*H1200

D1200*H1500

D1400*H1800

D1800*H2000

D2200*H2400

Customized

Vacuum system

Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump(optional)

Customized

Evaporation power

10KW

15KW

20KW

30KW

40KW

Customized

Evaporation source

20sets

26sets

36sets

52sets

68sets

Customized

Ion glow cleaning system

5KW

5KW

10KW

15KW

20KW

Customized

Control system

PLC+HMI Full automatic + Remote control system ( optional)

Customized

Ultimate vacuum

5.0*10-4pa

5.0*10-4pa

5.0*10-4pa

5.0*10-4pa

5.0*10-4pa

Customized

Total power

30.6KW

37.5KW

58.5KW

96KW

125KW

Customized

Coating Cycle time

6 to 10mins one cycle ( Depending on the coating film layer of different coating products)

Customized

Delivery container size

1set 20GP

1set 20GP

1set 40GP

1set 40HQ

1set 40HQ

Customized

Machine installing time

5days

(1engineer)

5days

(1engineer)

7days

(1engineer)

7days

(2engineers)

7days

(2engineers)

Customized

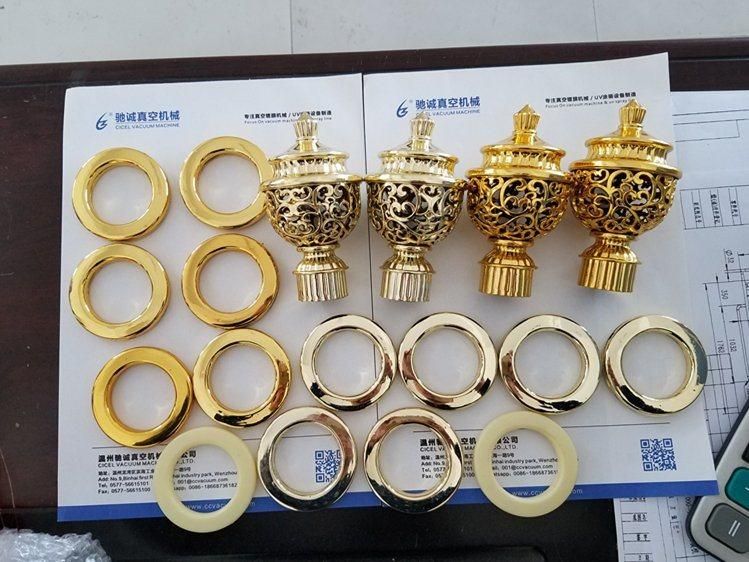

Application
