• Model NO.：forming machinery
• Feature：Automation
• Certification：ISO9001, CE
• Warranty：18 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Forming Machinery
• Automation：Fully Automatic
• Frame：350 H Steel
• Middle Plate：16mm
• Cutting：Cr12
• Main Motor：4kw
• Hydraulic Station Power：4kw
• Thickness of Raw Material：0.3-0.8mm
• Productivity：15-25m,Min
• Diameter of Shaft：75mm
• Transport Package：Nude, Covered with Plastic Film
• Specification：6500*1500*1300mm
• Trademark：DX
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：50sets ,Months

Basic Info.

Model NO. forming machinery Feature Automation Certification ISO9001, CE Warranty 18 Months Customized Customized Advantage Use Widely Condition New Name Forming Machinery Automation Fully Automatic Frame 350 H Steel Middle Plate 16mm Cutting Cr12 Main Motor 4kw Hydraulic Station Power 4kw Thickness of Raw Material 0.3-0.8mm Productivity 15-25m/Min Diameter of Shaft 75mm Transport Package Nude, Covered with Plastic Film Specification 6500*1500*1300mm Trademark DX Origin Botou, Hebei, China HS Code 84552210 Production Capacity 50sets /Months

Product Description

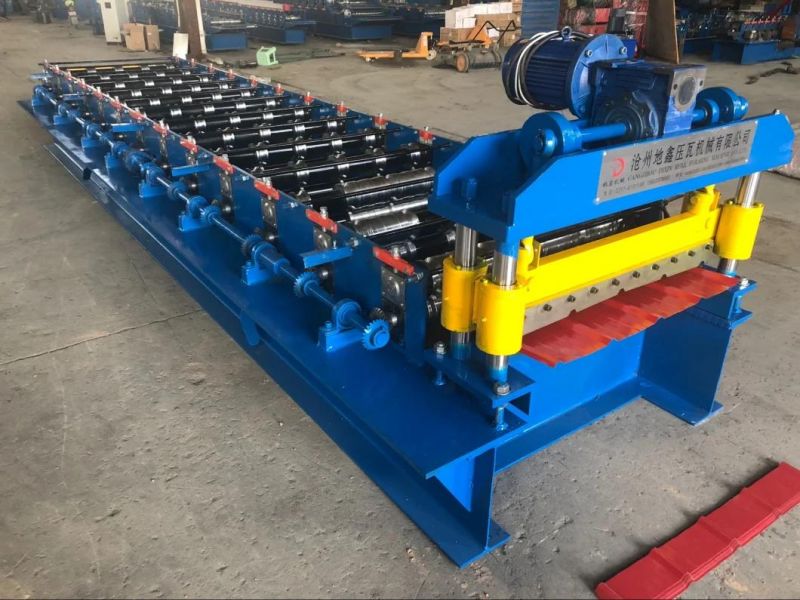

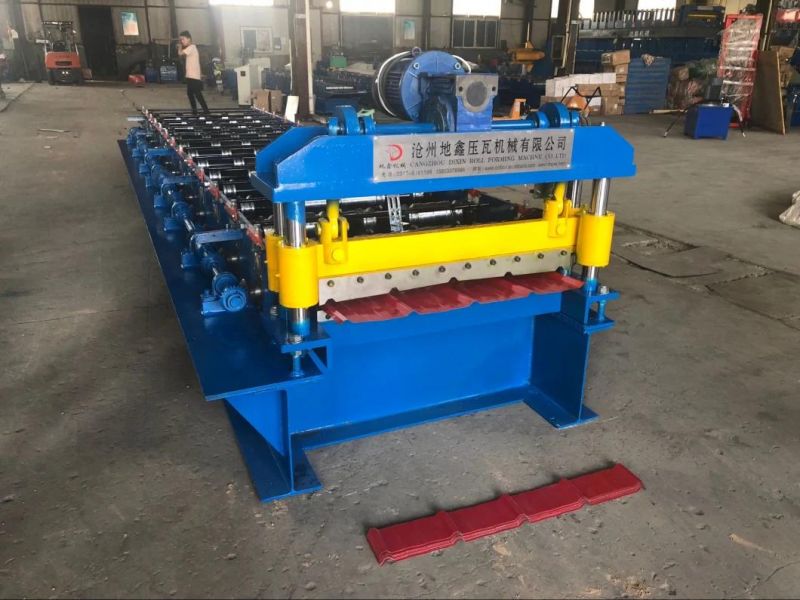

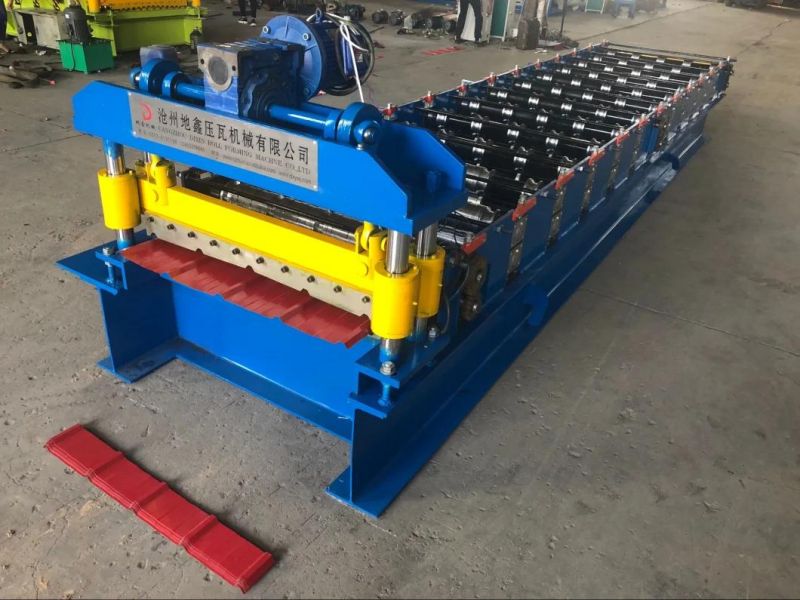

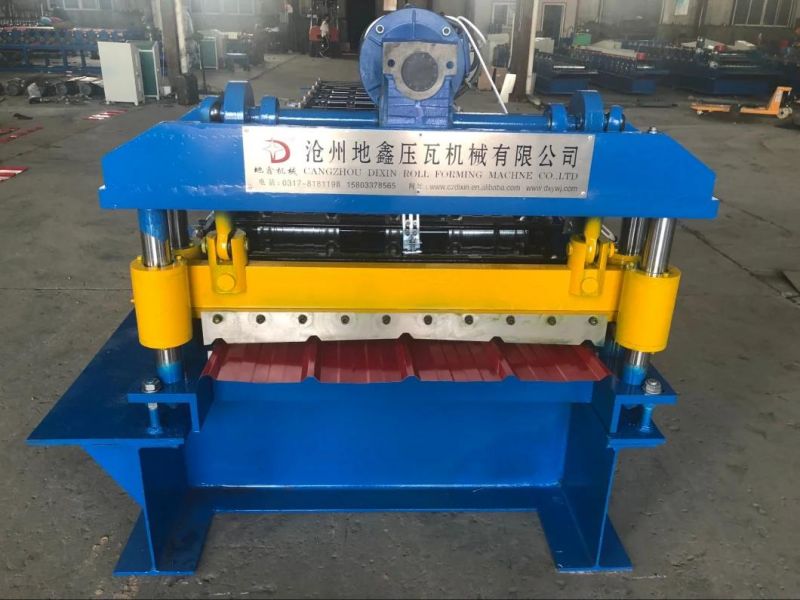

Trapezoidal Roofing Sheet Rib Type Plate Ibr Box Profile Roof Tile Panel Making Roll Forming Machine Machinery

More details of forming machinery for metal building roof
Panel Samples




Main Parameters of metal color roofing forming machinery from Botou DX

Model number	metal color roofing forming machinery from Botou DX
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	9000mm
Feeding width	1200mm
Forming steps	15 steps
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	75mm
Main frame	350H steel
Main motor power	4 kw
Pump power	3 kw
Medium plate thickness	14mm
Sprocket chain	1 inch
Drive  type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Workflow

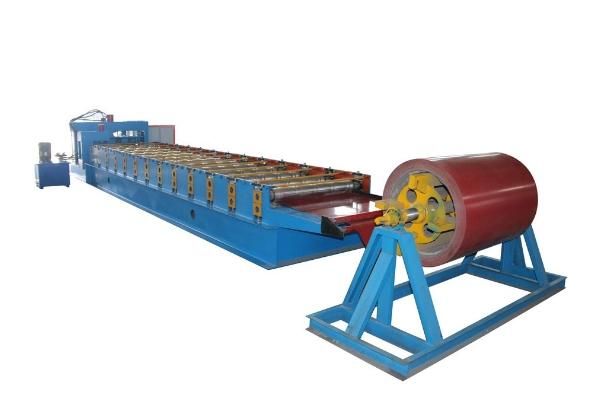

Decoiling the sheet - Sheet guiding - Roll forming - Measure length Cutting the panel- Panels to the support

Our Services

1. Customers` Design, Size, Color&Logo are accepted.

2. With15years professional manufacture experience

3. Prompt Delivery&Competitive Price

4. Main markets: Middle East, Europe, North America, Africa, Southeast Asia.

5. After-sales service:

1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, roundtripticket etc.
Packing and loading
Because of the long trip and your super trust, we will make sure roof cold forming machine can be
Appeared in front of you in fully good condition, you will fall in love with it with first glimpse.

If you want to get more discount of metal color roofing forming machinery from Botou DX, contact to Bella Hao.
