• Model NO.：cold forming machine
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Cold Forming Machine
• Processing Material：Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：850mm
• Feeding Width：1000mm
• Main Motor Power：4 Kw
• Pump Power：4 Kw
• Speed：8-12m,Min
• Shaft Diameter：75mm
• Forming Steps：13 Steps
• Transport Package：Water Proof Package
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

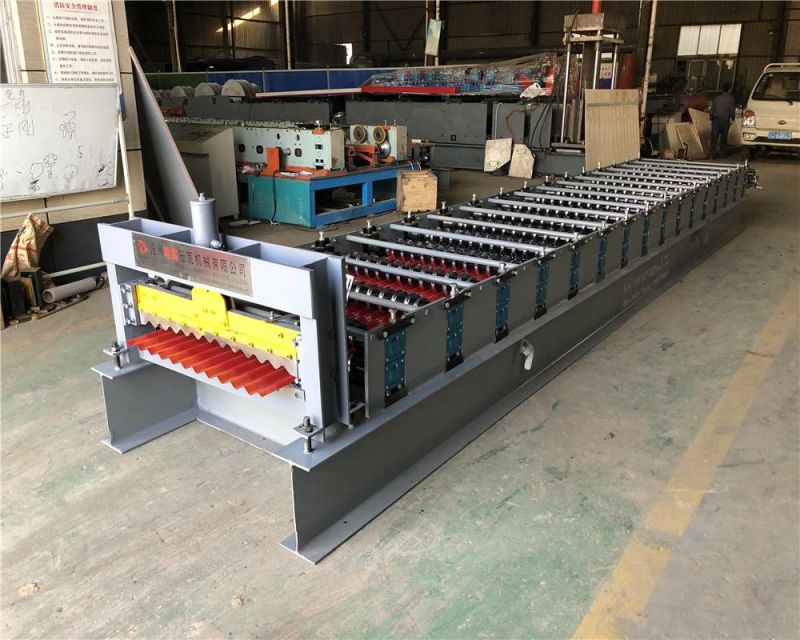

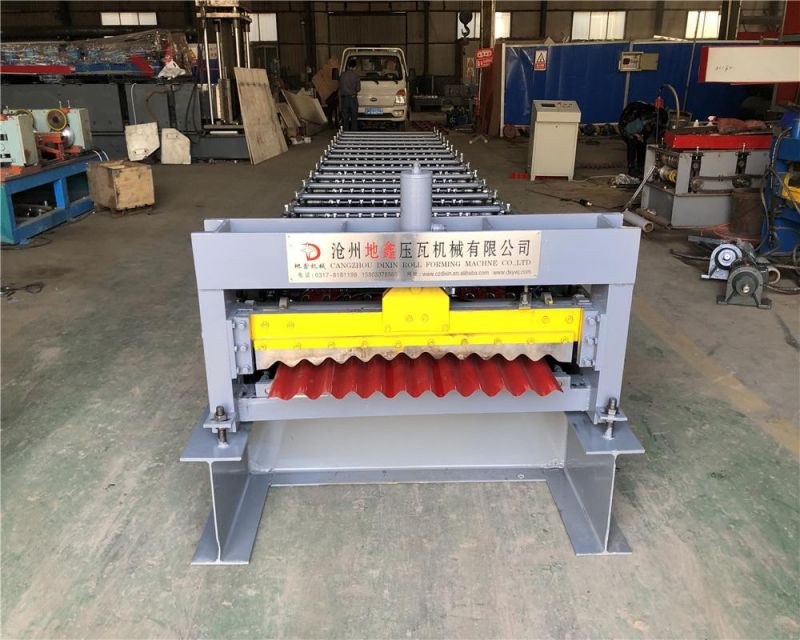

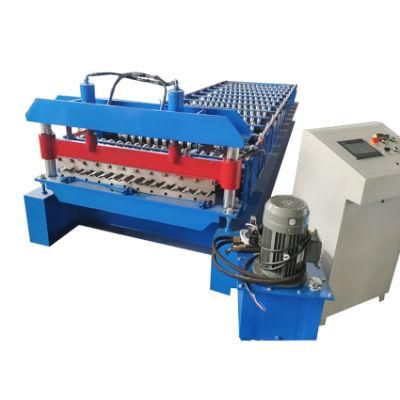

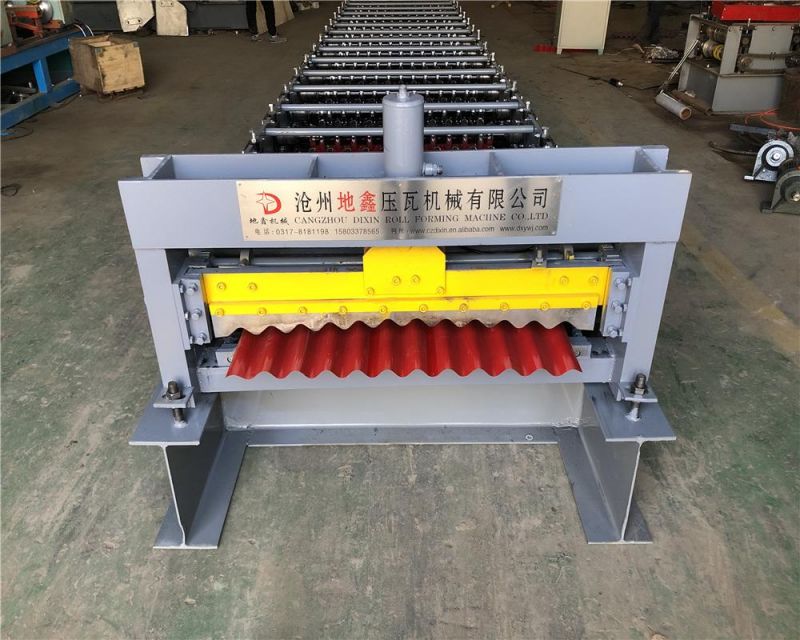

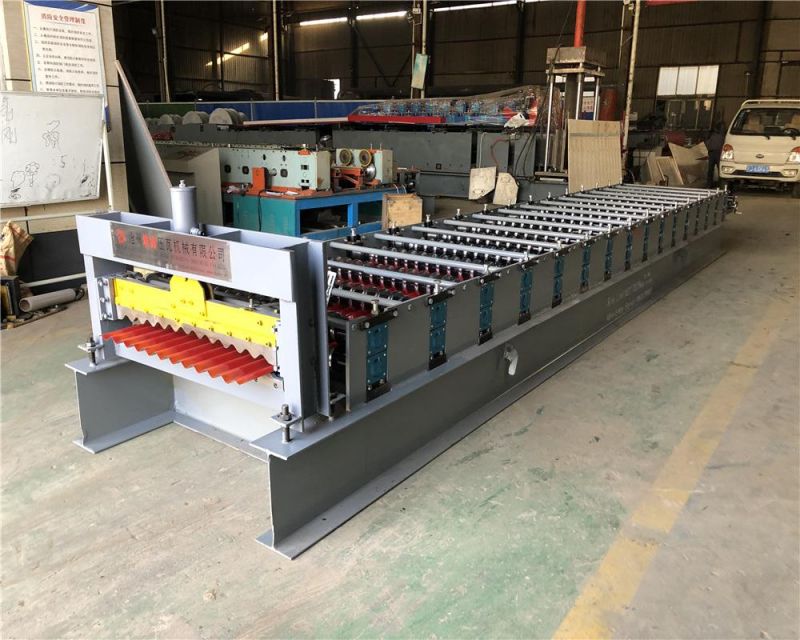

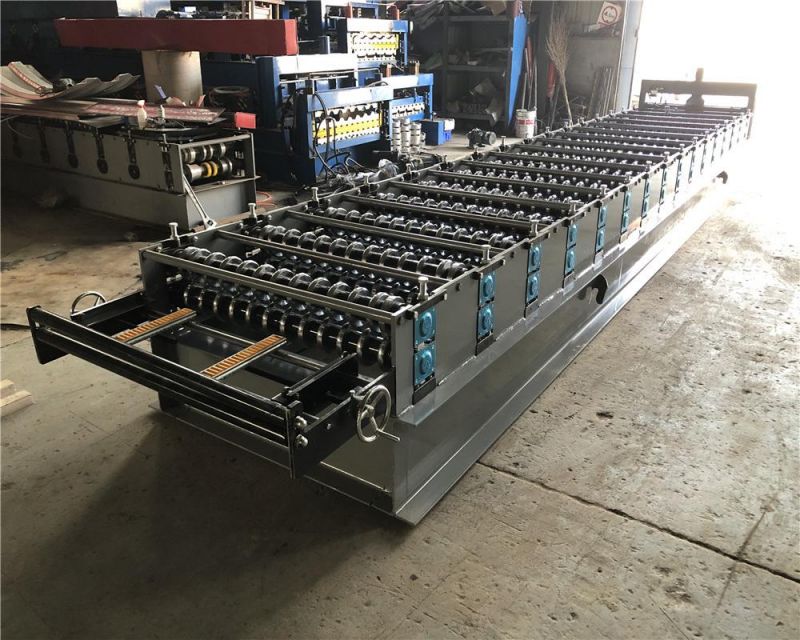

 1  Coil width1000mm2Cover width850mm3Coil sheet thickness0.2-0.8mm4Material of frame300H steel5Diameter of shaft (solid shaft)(high grade) 45# Steel6Diameter of shaft (solid shaft)75mm7Treatment of rollerquenched and  tempered treatment, hard chromized  coated 0.05-0.07mm8Thickness of middle plate14mm9Forming station13 stations10 Drive type of roll forming machine  drive by chain(0.8 inch)11Power of main motor4KW12Motor power of hydraulic station4KW13Oil pump of hydraulic stationNo.46 gear oil pump (high grade)14Forming speedabout 8-12 m/min15Voltage380V/50Hz/3phase 16  Hydraulic cutting  cutting controlled by PLC17Accuracy of cutting+/- 1mm18Razor blades materialCr12, quenching 58-62 °19Electrically controlled system entire machine controlled by PLC20PLCDELTA(TAIWAN) 21 Weight of main forming machineAbout 3 TSome machine photos for your reference
Product packaging
A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.
Why Choose Us?
1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;

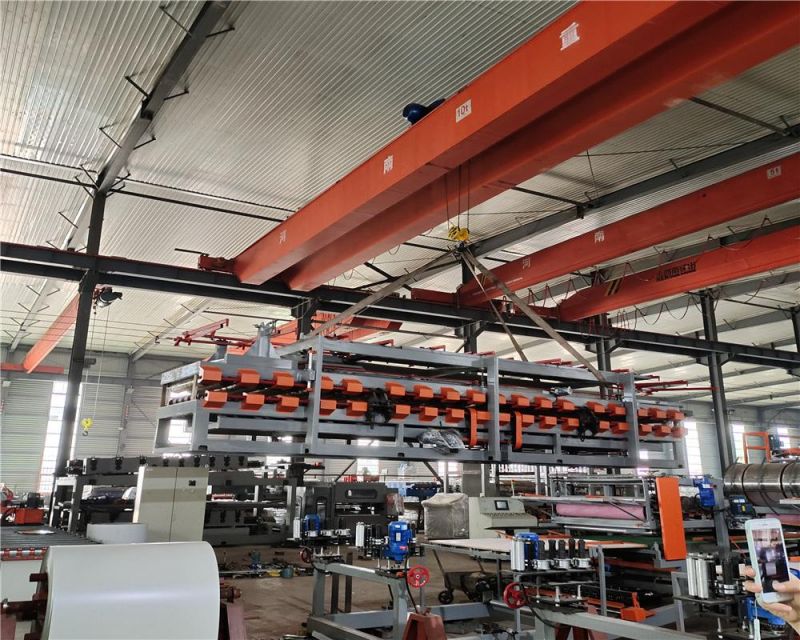

2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .

FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc
