• Model NO.：900T
• Transport Package：Plastic Package
• Specification：9.1*2.4*3.3
• Trademark：Longhua
• Origin：Anhui, China(Mainland)
• HS Code：8454301000
• Production Capacity：30set,Sets Per Month

Basic Info.

Model NO. 900T Transport Package Plastic Package Specification 9.1*2.4*3.3 Trademark Longhua Origin Anhui, China(Mainland) HS Code 8454301000 Production Capacity 30set/Sets Per Month

Product Description

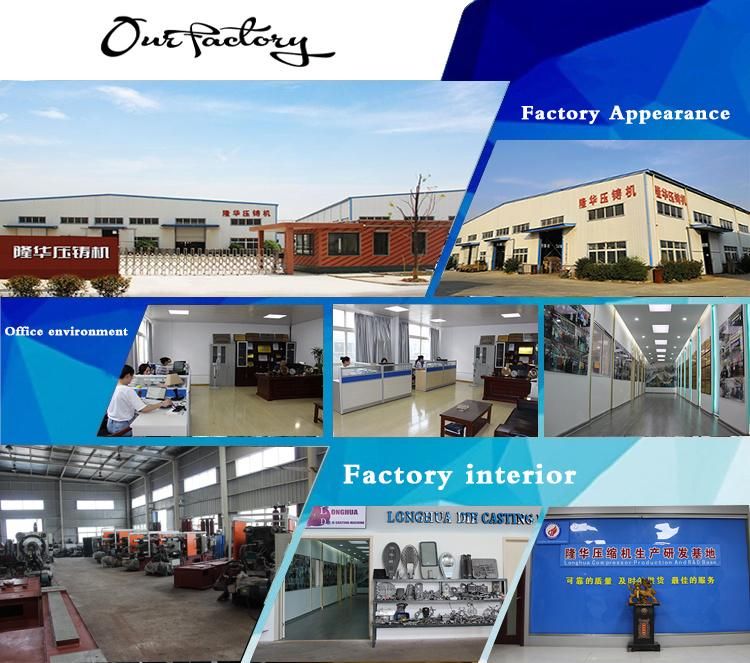

 Longhua Die-Casting Machine Company,founded in Bengbu,Anhui Province of China in 1982, is a professional high-tech enterprise engaged in the design,manufacture and sales of cold chamber die casting machine and die-casting peripheral equipment.

This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and supplies.computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.

The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.

Specification of LH900 ton Cold Chamber Die Casting  Machine Aluminium

Items	Unit	Specification 900T
Hydraulic Working Pressure	MPa	14
Clamping Force	KN	9000
Space Between Tie Bars	mm	910*910
Tie Bar Diameter	mm	¢180
Die Opening Stroke	mm	760
Injection Force(intensify)	KN	750
Plunger Launch Distance	mm	295
Injection Position	mm	-- 250
Plunger Diameter	mm	¢80  ¢90   ¢100
Injection Stroke	mm	760
Casting Pressure (intensify)	MPa	154/121/81
Casting Fiange Protrusion	mm	20
Casting Fiange Diameter	mm	200
Max Casting Area Under 40Mpa	CM2	2150
lnjection Weight(Al)	Kg	7.1/9/14
Die Height(Min--Max)	mm	350~950
Ejector Force	KN	315
Ejector Stroke	mm	180
Motor Capacity	Kw	30
Machine Dimensions  (L*W*H)	m	9.1*2.4*3.3
Referential Machine Weight For Uplifting	T	40
Oil Tank Capacity	L	1500

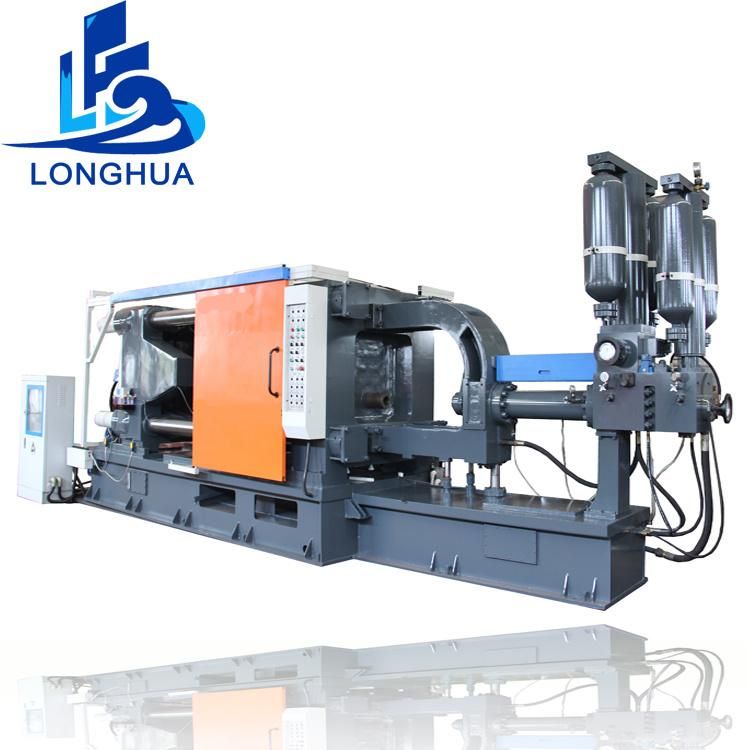

900ton cold chamber die casting machine

1. Easy to handle

- Completely automatic process cycle and analysis function

- Permanent process monitoring via sensors

- Extensive security installations



2.Excellent performance

- High efficiency and reduced scrap

- High quality casting of complex and large parts

- Extremely stable value of the machine

- Multi-shift operation possible


 3.Flexible

 - Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds.

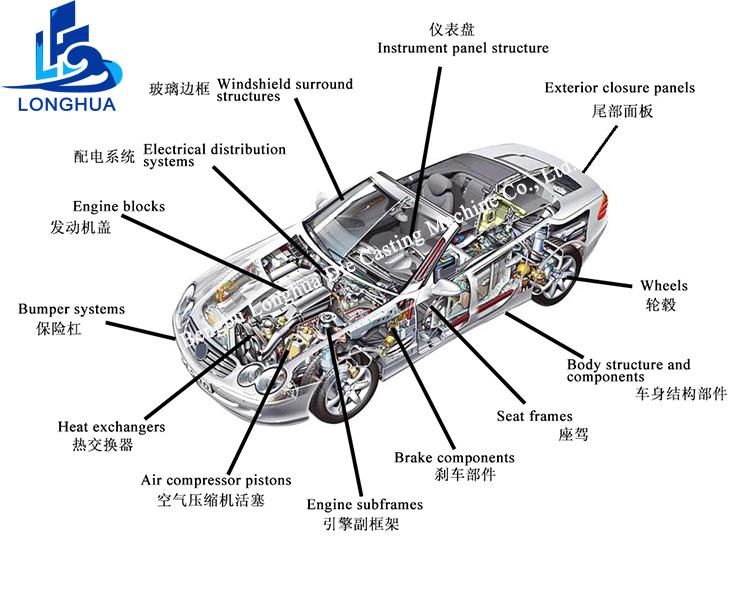

Die casting machine can produce auto parts

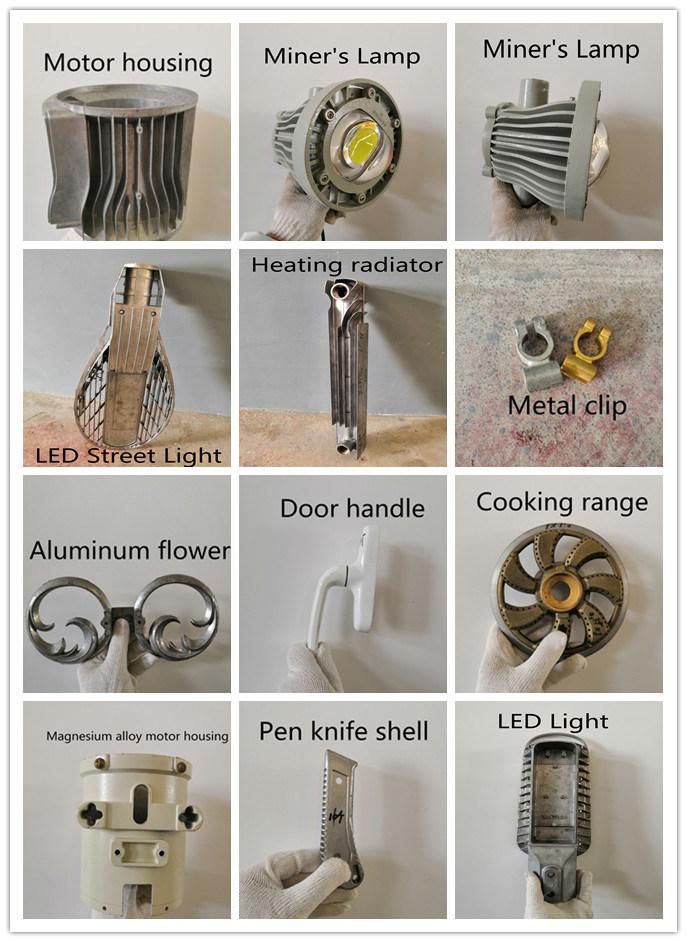

Die castings produced by our machine
