Metallic Processing Machinery

Home > Product > Spring Coiling Machine

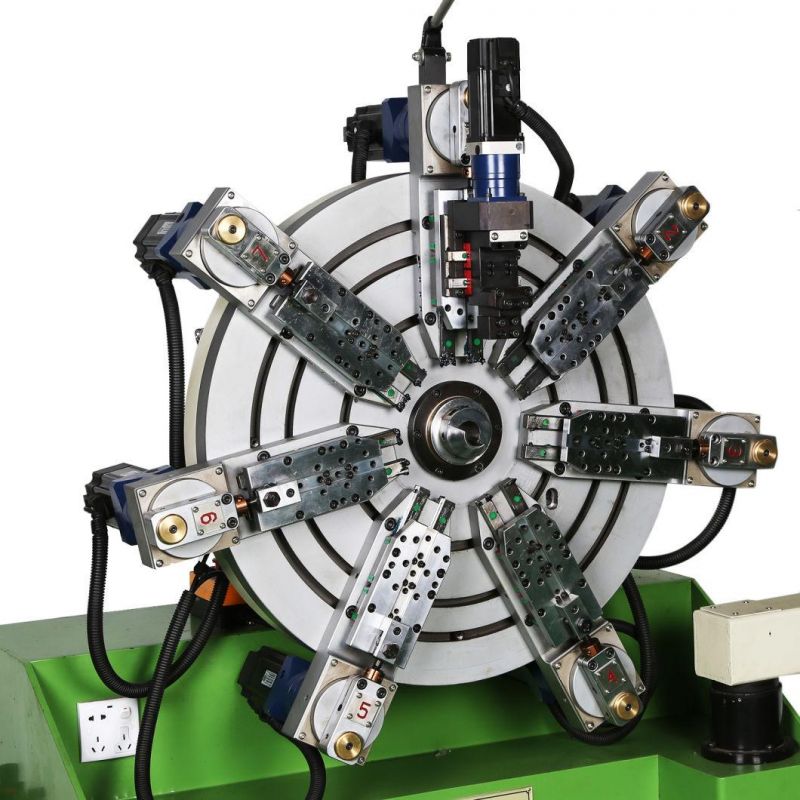

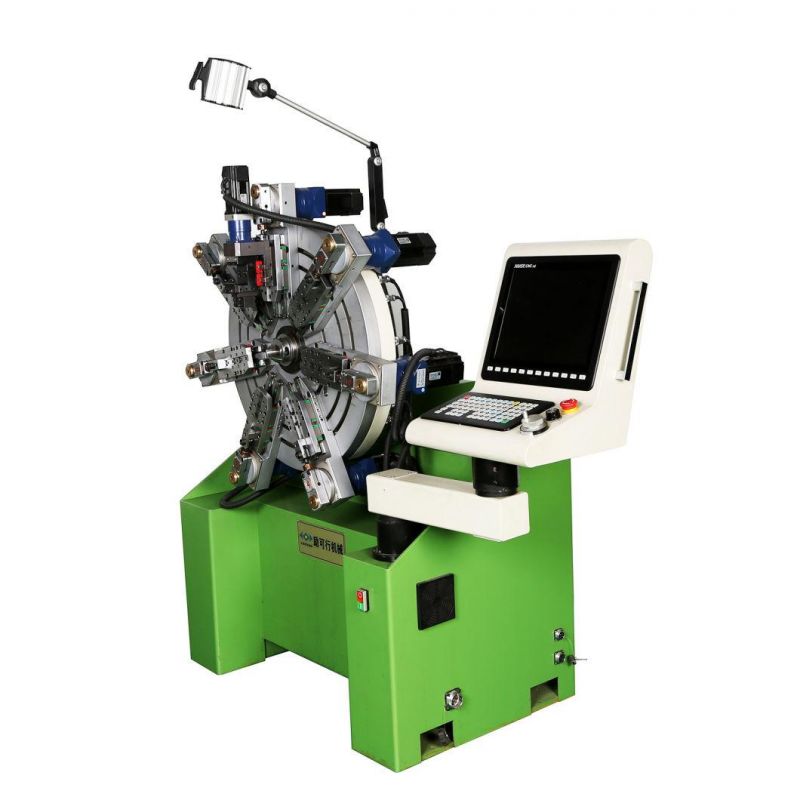

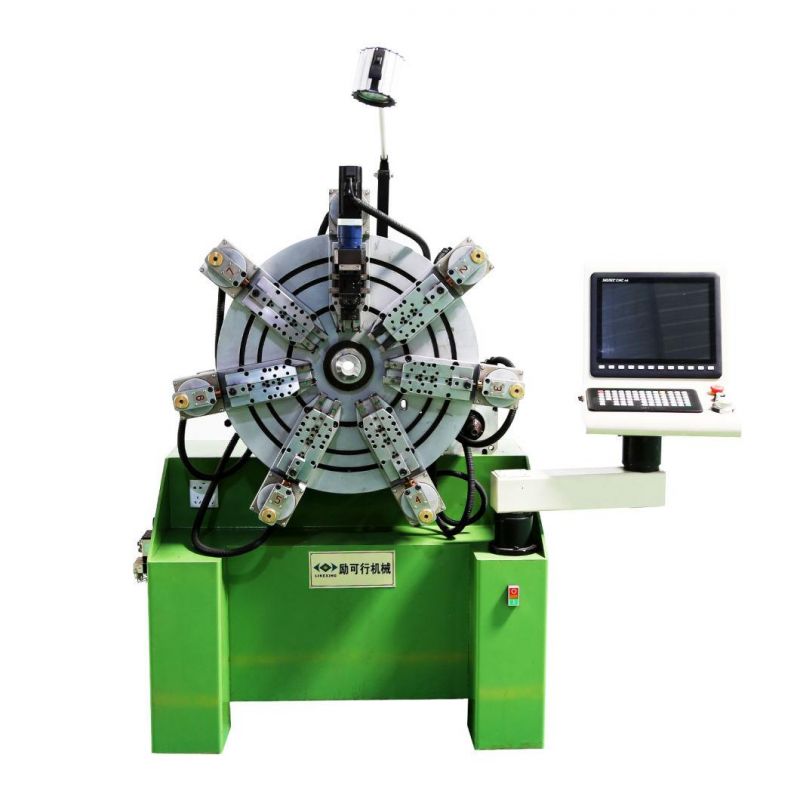

10 Axis Wire Bending Machine 0.3-2.6mm Dia.

Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.
  • Control Type：Automatic
  • Axis Count：10 Axis
  • Warranty：ISO 9001:2015
  • Servo Motor：Japan SANYO
  • Axis：10
  • Condition：New

Base Info

  • Model NO.：LKX1026
  • Automation：Automatic
  • Transport Package：Wooden Case
  • Specification：1200*800*1600MM
  • Trademark：LIKEXING
  • Origin：Made in China
  • HS Code：84633000
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. LKX1026 Automation Automatic Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

LKX1026

Camless machine adopts standardized design to ensure quick and easy installation of the machine

It's not only have the advantages of coiling machine, but improve its weak poit of time limited.

Adopt the imported servo motors and planetary reducer are euqipped to ensure  the accurate running of the machine.


TECHNICAL PARAMETER

ModelLKX1026
Wire diameter (mm)Ø0.3~Ø2.6
Max feeding Length999999
Instruction value of wire feed±0.01~±9999.99mm
Instruction value of cam±0.10~±359.90
Servo motor of wire feed (kw)2.7
Machine size(mm)1200×800×1600
Weight (Kg)1000
Power380V 3-Phase
10 Axis Wire Bending Machine 0.3-2.6mm Dia.
10 Axis Wire Bending Machine 0.3-2.6mm Dia.
10 Axis Wire Bending Machine 0.3-2.6mm Dia.
